Brita Platinum Performance Series - Parts; Controller Assembly Parts List

34
B29 DNR Micro Switch Cable 1
B28 60010115 Meter Cable 1
B27 60010124 Power Cable 1
B26 60095092 Meter Cable Clip 1
B25 60095091 Power Cable Clip 1
B24 92393 Motor 12VAC 3W 1
B23 60010574 Screw on Mounting Plate 8
B22 60010573 Mounting Plate 1
B21 60010660 Motor Pin 1
B20 60010099 Screw on Main Gear 1
B19 60010100 Washer on Main Gear 1
B18 92391 Main Gear 1
B17 92389 Drive Gear 1
B16 DNR Screw on Back Cover 4
B15 DNR Washers on Screw 4
B14 DNR Platinum Back Cover 1
B13 92392 Brine Gear 1
B12 60010577 Locating wheel(UF) 1
B11 60010661 Washer on Locating Wheel 1
B10 DNR Screw 2.2×13 1
B9 60010575 Screw on Locating Wheel 1
B8 60010580 Micro Switch 2
B7 60010579 Screws on Micro Switch 2
B6 DNR Platinum Front Cover 1
B5 60010572 Screws on PCB 4
B4 92388 Platinum PCB 1
B3 60010571 PCB Absorb Shock Foam 1
B2 DNR Platinum Controller Cover 1
B1 DNR Controller Touch Panel 1

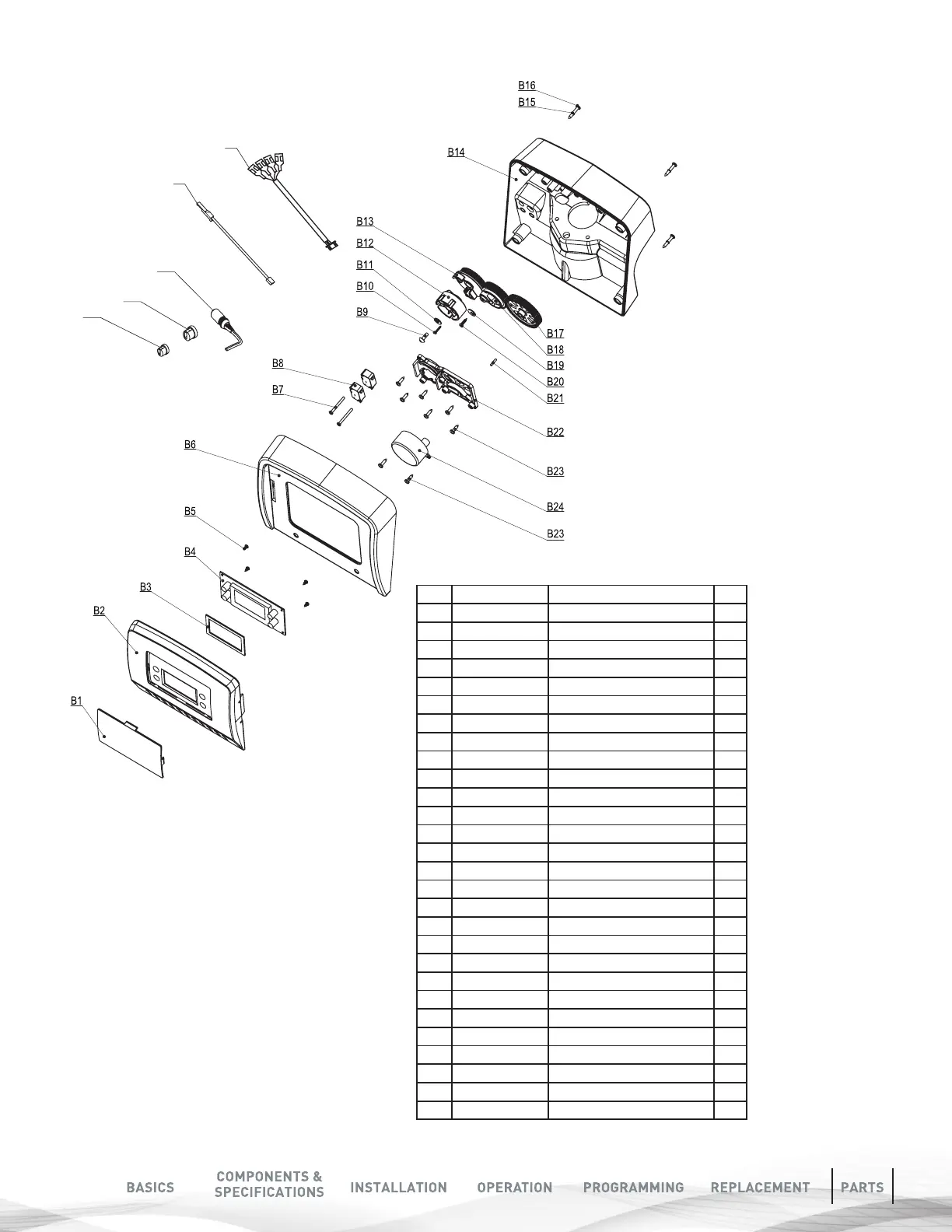

CONTROLLER ASSEMBLY PARTS LIST
%
%
%
%
%
NO. PART # PART DESCRIPTION QTY
