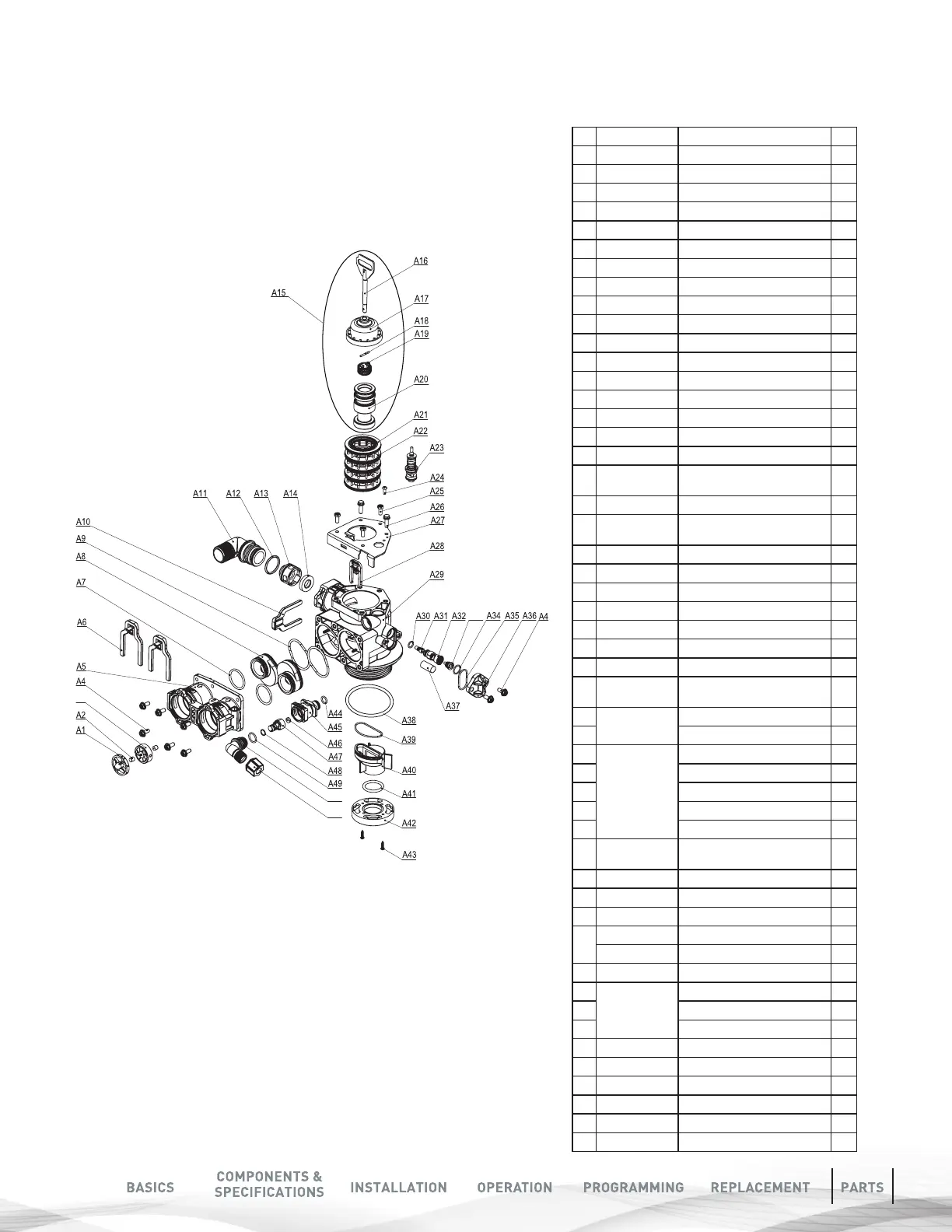

STANDARD VALVE BODY ASSEMBLY PARTS LIST
$
$
$
$
A51 60010184 Brine Line Elbow Nut 1
A50 60010172 Brine Line Elbow 1
A49 60010044 O-ring of Brine Line Elbow 1
A48 60010188 O-ring of BLFC Holder 1
A47 60010173 BLFC Holder 2
A46 60010128 BLFC(0.2GPM)(Optional) 1
A45 DNR Brine Line Connector 1
A44 DNR O-ring of Brine Line Connector 1
A43 60010099 Screw on Valve Bottom Connector 2
A42 60010599 Valve Bottom Connector 1
A41 60010080 Distributor O-ring 1
A40 60010598 Central Pipe Adaptor 1
A39 60010597 O-ring of Central Pipe Adaptor 1
A38 60010077 Tank Mouth O-ring 1
A37 60010715 Screen Platinum Valve 1
A36 60010595 Injector Cover 1
A35 DNR O-ring of Injector Cover 1
A34 60010186 Big O-ring of Injector Holder 1
A33 Check Page 23 #0000 Black Injector Nozzle
(Optional)
1
A32 60010174 Injector Holder 1
A31 Check Page 23 #0000 Black Injector Throat
(Optional)
1
A30 60010187 Small O-ring of Injector Holder 1
A29 DNR Platinum Valve Body 1
A28 60010069 Secure Clip Brine Line 1
A27 DNR End Plug Retainer 1
A26 60010076 Valve Body Connect Screws 2
A25 60010075 End Plug Retainer Screws 3
A24 60010574 Screw 3.5×13 1
A23 92381 Brine Valve Injector Stem
Assembly
1
A22 92382 Spacer-Platinum Valve 8
A21 Seal-Platinum Valve 5
A20 92384 UP Flow Piston-Platinum Valve 1
A19 Piston Retainer-Platinum Valve 1
A18 Piston Pin 1
A17 End Plug-Platinum Valve 1
A16 Piston Rod-Platinum Valve 1
A15 92384 Piston Assembly-
Platinum Valve(UF)
1
A14 Check Page 23 DLFC(2.4GPM)(Optional) 1
A13 60095694 DLFC Holder 1
A12 60010211 O-ring on Drain Elbow 1
A11 60010253 Drain Elbow 3/4” NPT 1
60010254 Drain Elbow 1” NPT 1
A10 60010227 Secure Clip of Drain Line 1
A9
60010585
Big O-ring of Adaptor Coupling 2
A8 Adaptor Coupling 2
A7 Small O-ring of Adaptor Coupling 2
A6 92387 Adaptor Secure clip 2
A5 60010589 Platinum Valve Connector 1
A4 60010596 Screws of Valve Connector 8
A3 60010238 Impeller Assembly 1
A2 DNR Bush 2
A1 60010587 Impeller Holder 1
NO. PART # PART DESCRIPTION QTY
