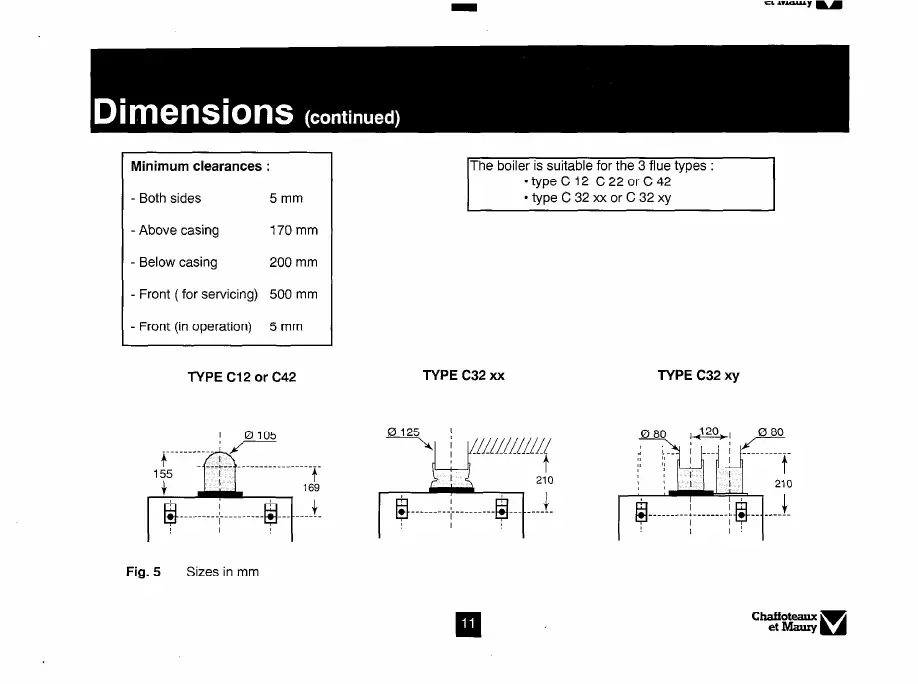

Britony Combi 80 - Dimensions (continued); Installation Clearances

Minimum clearances :
- Both sides 5mm
- Above casing 170 mm
- Below casing
200 mm
- Front (for servicing) 500 mm
- Front (in operation) 5 mm
TYPE Cl2 or C42
Fig. 5
Sizes in mm
The boiler is suitable for the 3 flue types :
l typeC12 C22orC42
l type C 32 xx or C 32 xy
TYPE C32 xx TYPE C32 xy
