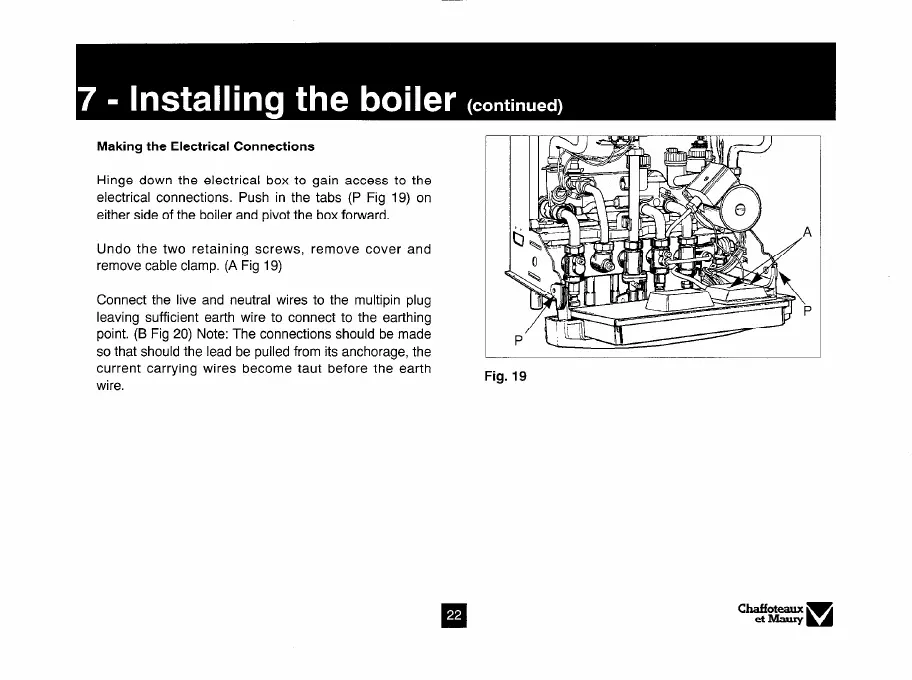

Making the Electrical Connections
Hinge down the electrical box to gain access to the
electrical connections. Push in the tabs (P Fig 19) on
either side of the boiler and pivot the box forward.
Undo the two retaining screws, remove cover and
remove cable clamp. (A Fig 19)
Connect the live and neutral wires to the multipin plug
leaving sufficient earth wire to connect to the earthing
point. (B Fig 20) Note: The connections should be made
so that should the lead be pulled from its anchorage, the
current carrying wires become taut before the earth
wire.
Fig. 19
