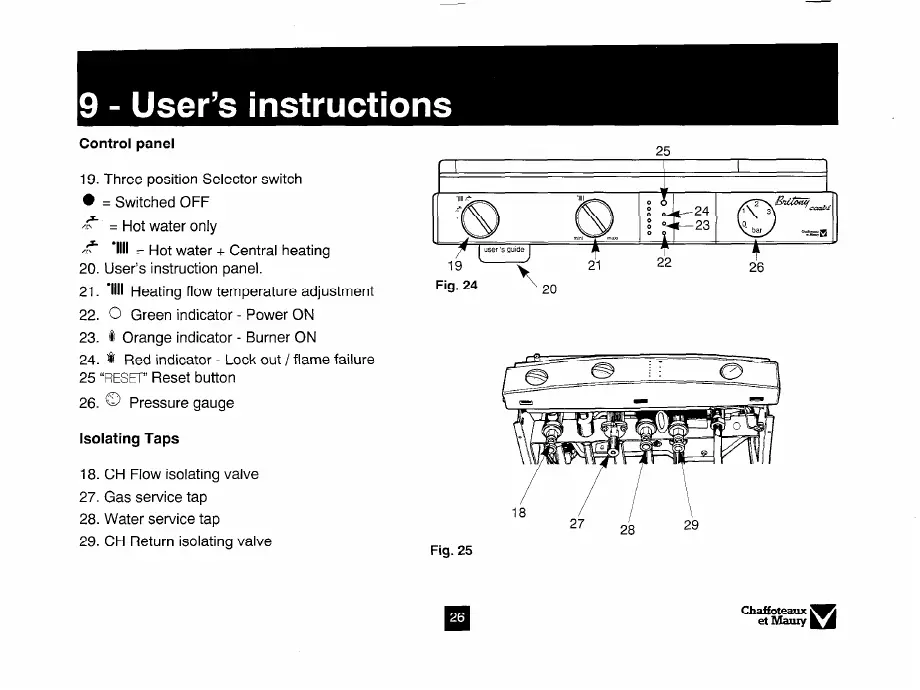

Britony Combi 80 - User Instructions; Control Panel Overview

Control panel
19. Three position Selector switch
l = Switched OFF
c
ri\
= Hot water only
*
$:\
‘1111 = Hot water + Central heating
20. User’s instruction panel.
21. ‘III1 Heating flow temperature adjustment
22. 0 Green indicator - Power ON
23. 4 Orange indicator - Burner ON
24. 4 Red indicator - Lock out / flame failure
25 “RESET’ Reset button
26. @ Pressure gauge
Isolating Taps
18. CH Flow isolating valve
27. Gas service tap
28. Water service tap
29. CH Return isolating valve
25
18
/ I
27 28
29
Fig. 25
