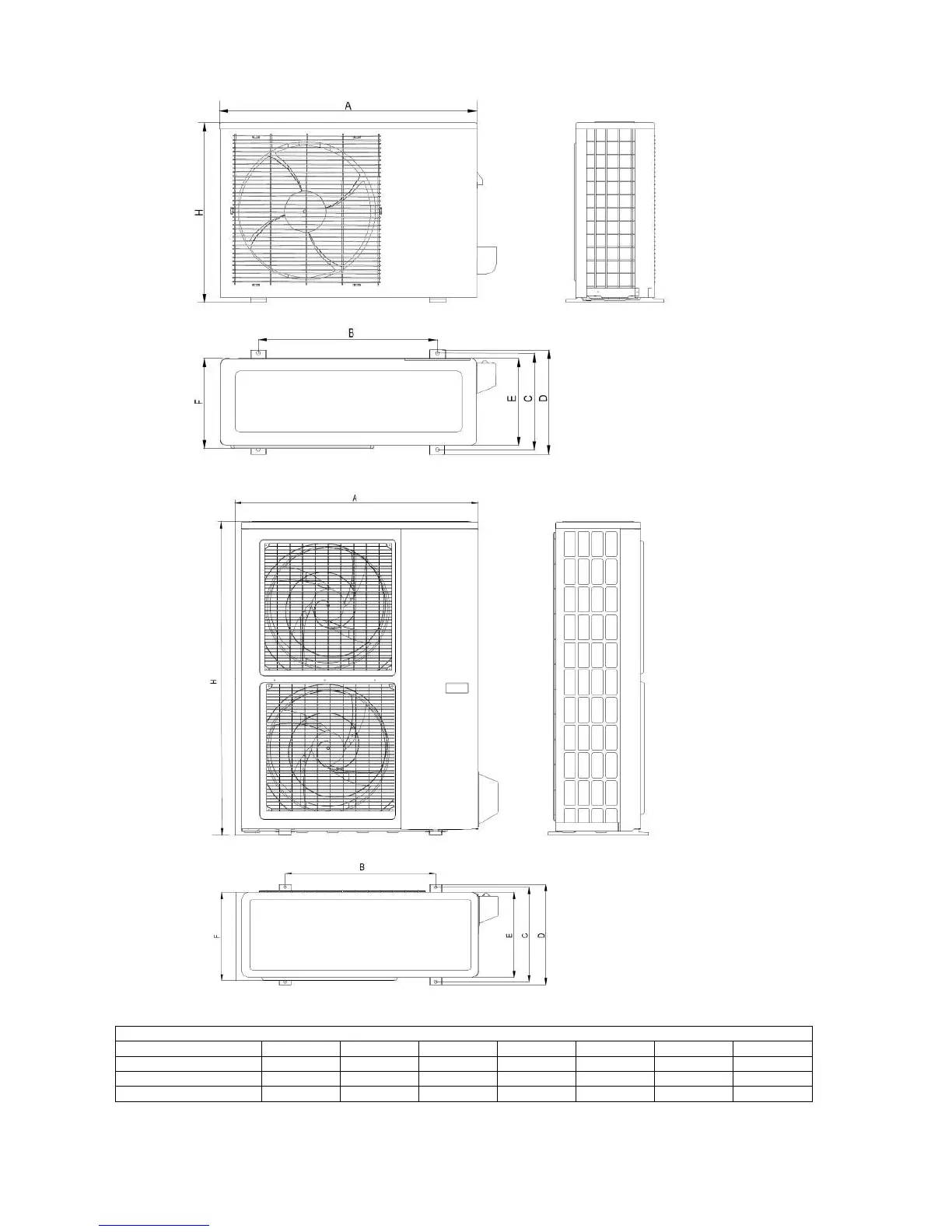

5.5 General Arrangement Drawings & Clearance
Requirements
Fig. 15.a – Outdoor Unit: DONSC1
0Z7
Fig. 15.b – Outdoor Unit: DONSC1
5Z7 & DONSC13Z7
Table 2 – Brivis Invert
er Outdoor Un
it Dimensions
Unit mm
MODEL
A
B
C
D
E
F
H
DONSC15Z7
938
633.5
404
448
370
392
1369
DONSC13Z7
938
633.5
404
448
370
392
1369
DONSC10Z7
990
624
366
396
340
345
965
