Brivo ACS-SDC-E Installation Manual
Lock Control
The ACS-SDC-E controls a single door lock through either a magnetic lock or door strike.
There are two 12V DC outputs each capable of up to 500mA that can be used to power the door strike in conjunc-
tion with the lock control relay.
Lock Relay Output
The relay is rated up to 30V DC and 2A with 0.6 power factor. If power is provided via one of the ACS-SDC-E’s
12V outputs, the relay power would be 12V DC and the rated output of 500 mA of the ACS-SDC-E’s limited
current.
The ACS-SDC-E lock relay output has both Normally Open and Normally Closed contacts for wiring
depending upon your application.

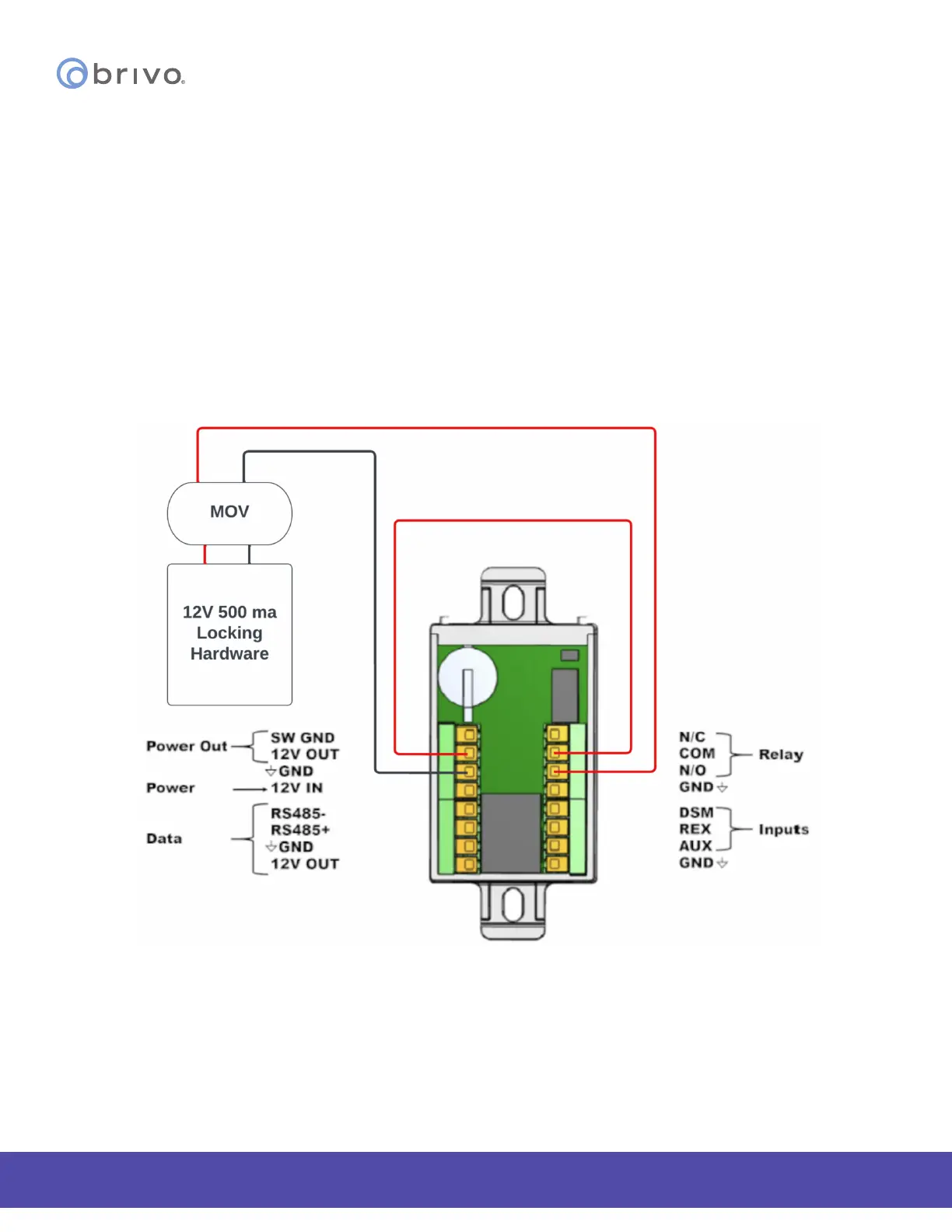

Lock Wiring using onboard 12V DC (normally open shown)
