Brocade FastIron GS and FastIron GS-STK Hardware Installation Guide 79
53-1001783-01
Power supply specifications
6
DRAFT: BROCADE CONFIDENTIAL
Input connector and plug
Table 22 lists the input connectors for the power supplies.

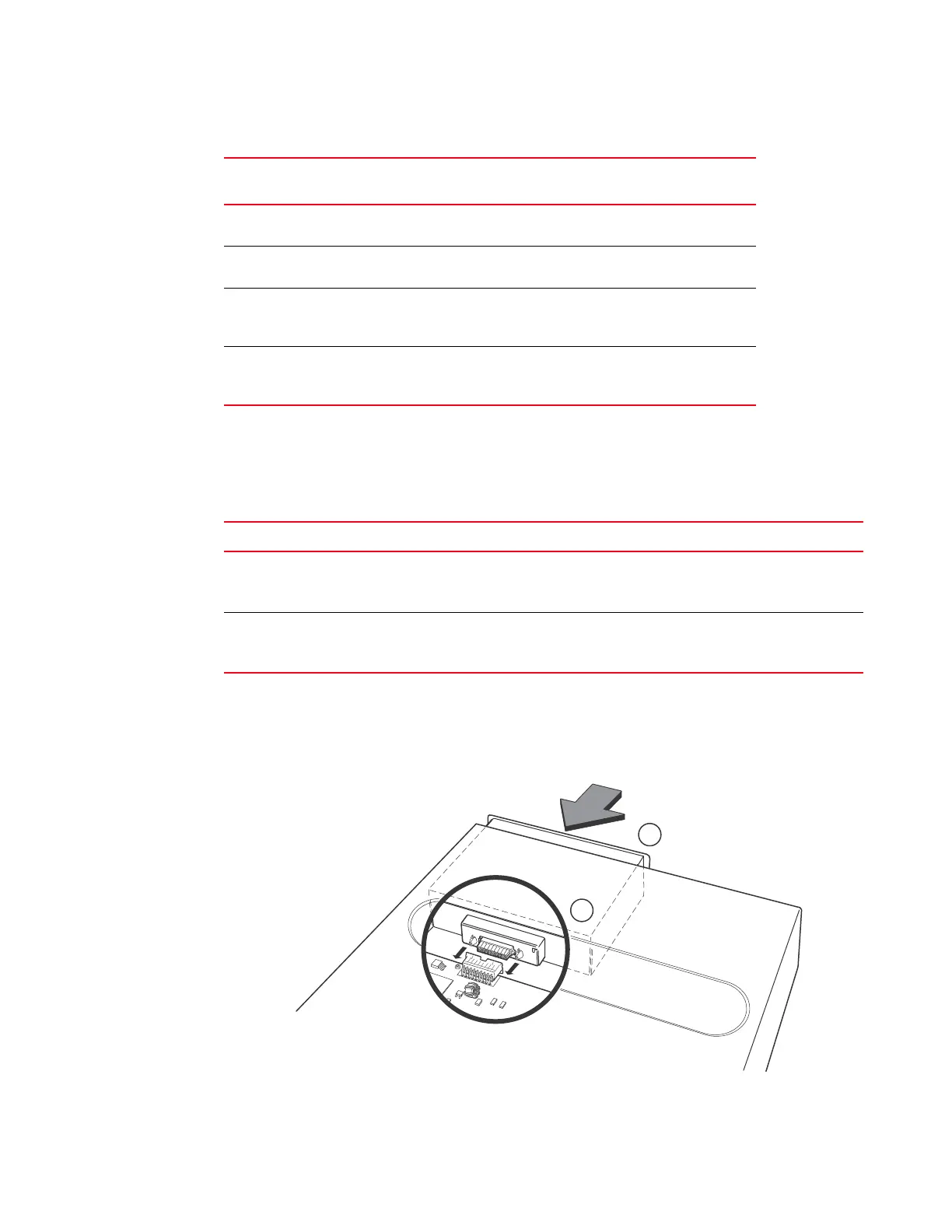

Figure 51 shows the power plug and connector for AC power supplies.
FIGURE 51 AC Power Cable Plug and Input Connector
FGS624-STK power drawn from outlet with 1 power supply
with 2 CX4+1XFP 121 W
FGS648-STK power drawn from outlet with 1 power supply
with 2 CX4 170 W
FGS624-STK power drawn from outlet with 2 power supplies (PS
efficiency goes down as load increases)
with 2CX4+1XFP 161 W
FGS648-STK power drawn from outlet with 2 power supplies (PS
efficiency goes down as load decreases)
with 2 CX4 204 W
TABLE 22 Input Connector for Power Supplies
Power Supply Input Connector Properties
RPS-FGS Standard IEC type (IEC 320)
C14 type: UL/CSA 15A/250V, VDE 10A/250V
Orientation: Ground pin down
RPSDC-FGS 2-position Phoenix Contact
The power supply is connected to Earth Ground using wire attached to the ground
stud on the power supply rear panel.
TABLE 21 Maximum Power Supply Consumption for FGS-STK Models (Continued)
Model Maximum Power
Consumption
