B102163-0-1113 Page 39

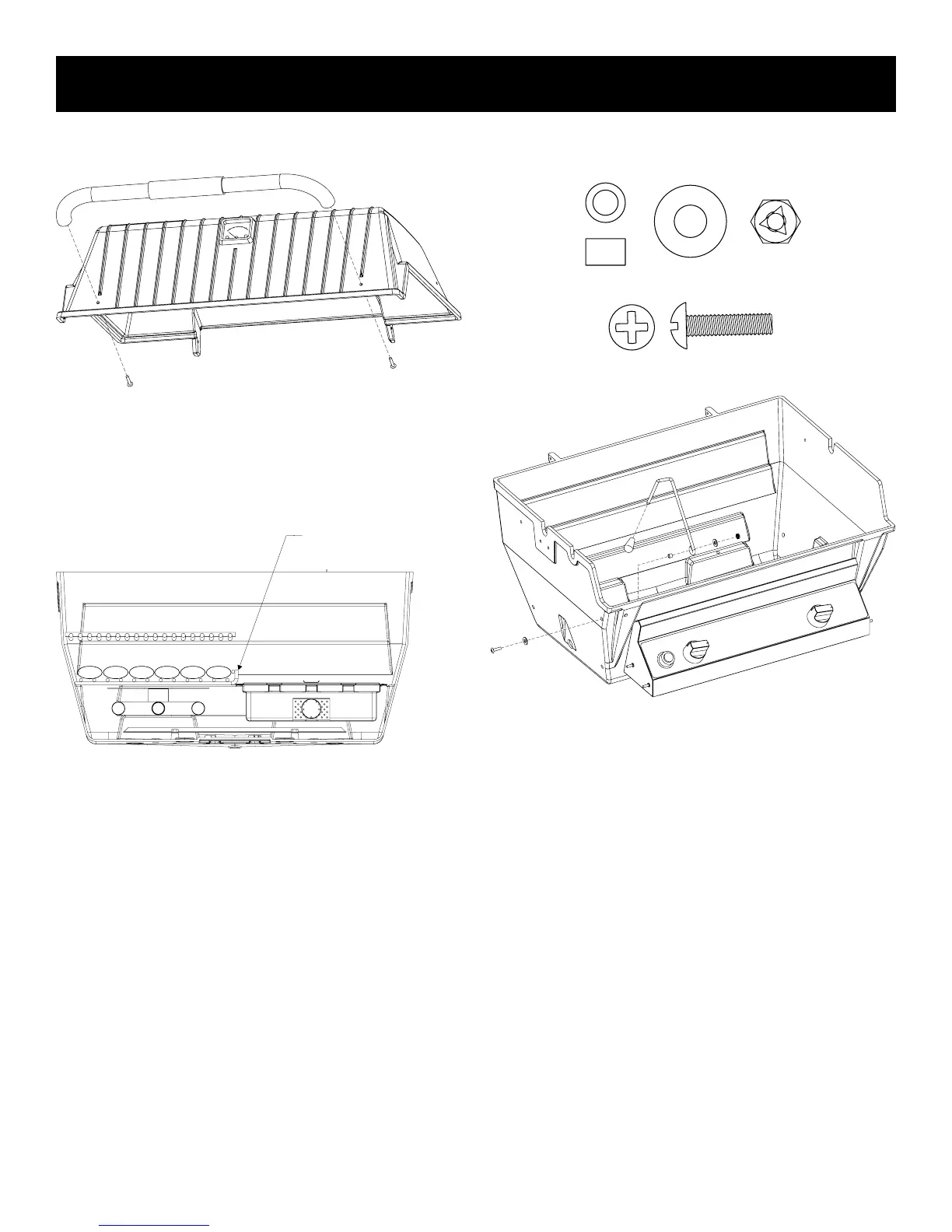

Lid Stop
Attach the lid stop assembly to the grill bottom as shown in Figure 34.
Lid stop assembly hardware
Figure 34
GRILL ASSEMBLY
9. Fasten the lid handle to the grill body top with two #10-24 x 1”
screws. See Figure 32.
Figure 32
10. R3B models only: Place the briquet rack over the blue ame
burner only. See Figure 33.
11. R3B models only: Position the Char-Master briquet evenly on
the briquet rack without overlapping. See Figure 33.
90 ANGLE ON BRIQUETTE
RACK TO CENTER OF
GRILL
°
Figure 33
12. Set the cooking grids.
Note: V-channel cooking grids are to be used over infrared
burners only.
13. Push valve knobs on to valves.
Note: Control Housing is used only when installing grill head
onto cart. See the instructions that come with the cart for Control
Housing installation instructions.
