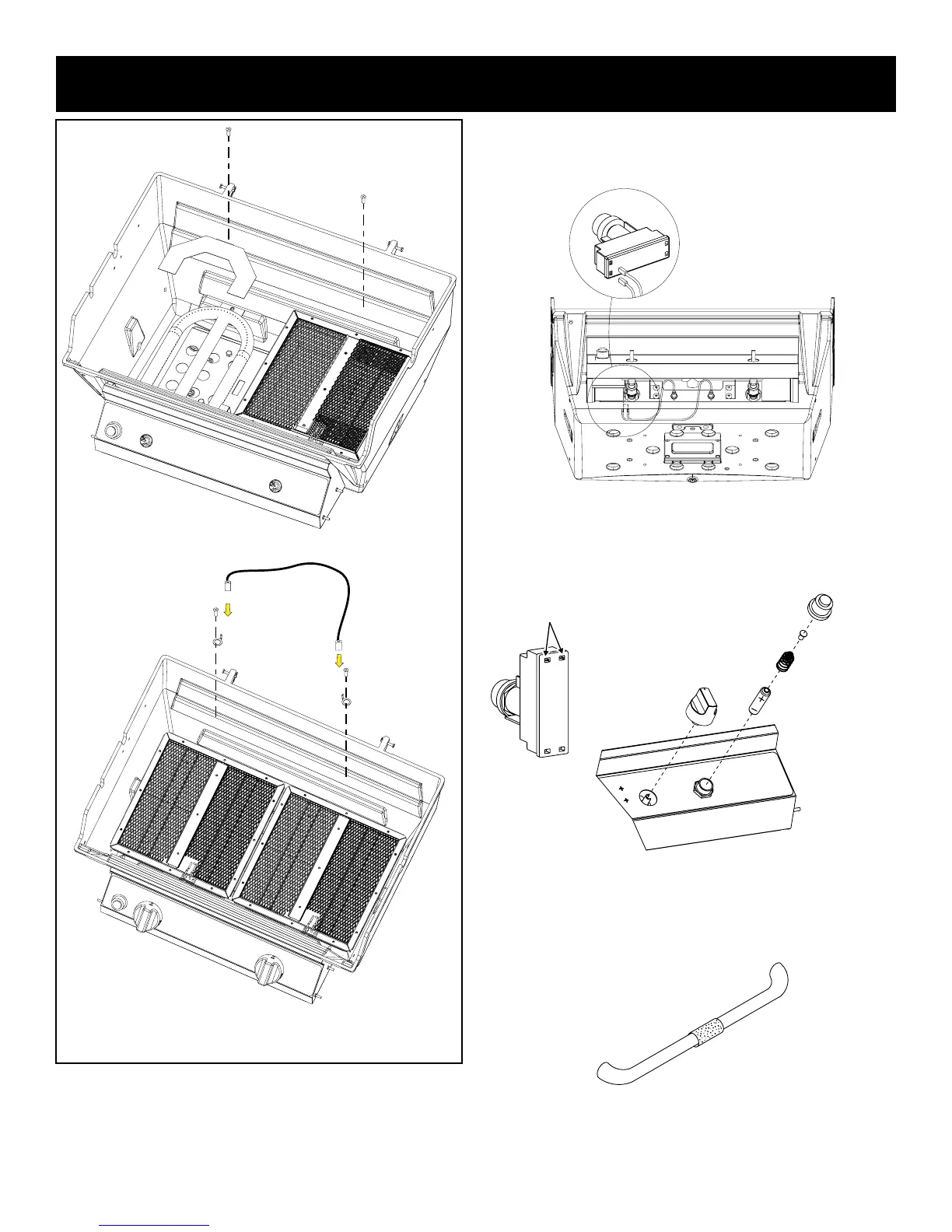

Figure 28
GRILL ASSEMBLY
6. Remove ignitor from the control panel by unscrewing the ig-
nitor button and nut. Attach ignitor wires to terminals on the
ignitor. See Figure 29.
Figure 29
7. Re-attach the ignitor to the control panel, then tighten nut and
insert AA battery, positive side up, and replace ignitor button.
See Figure 30.
Figure 30
8. Install foam grip on lid handle. See Figure 31.
Tip: For ease of installation, slightly lubricate the lid handle
with liquid soap before pushing the foam grip into place.
Figure 31
