Brookeld Engineering Labs., Inc. Page 4 Manual No. M02-313E1209
Please check to be sure that you have received all components and that there is no damage. If
you are missing any parts, please notify Brookeld or your local dealer immediately. Any ship-
ping damage must be reported to the carrier. Save the packing container, if possible, for future
use when returning the viscometer to Brookeld or an authorized dealer for service.
Handle for Raising
and Lowering
Viscometer Head
Solvent Trap
P/N C1K-63
Column
Head
Serial Tag Info
on Back of
Viscometer Head
Base
Console
Cone Spindle
P/N CAP-S-XX
The Flat
Thumb Screw
P/N C1K-34Y

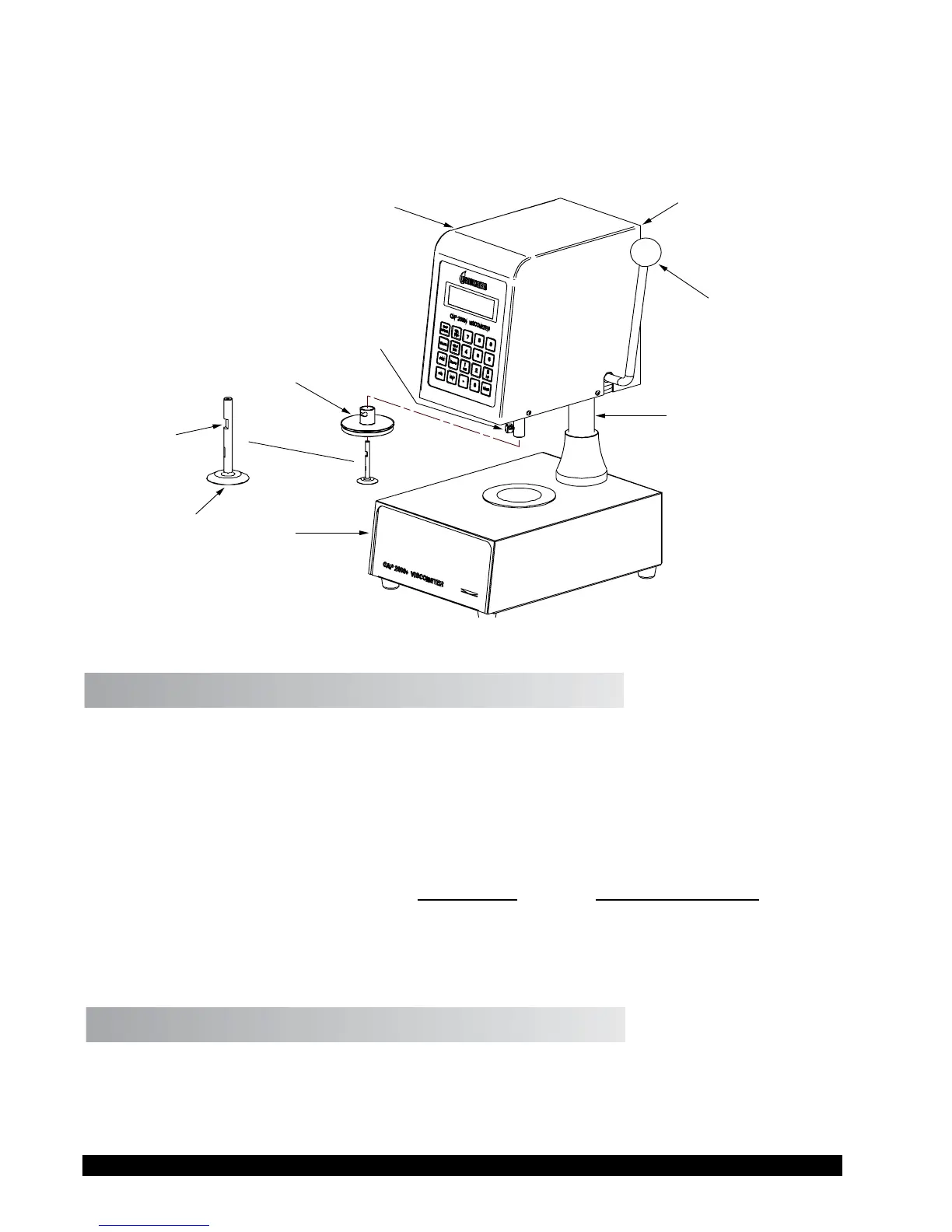

Figure I-1: Components
I.2 Utilities
Input Voltage: 115 VAC or 230 VAC
Input Frequency: 50/60 Hz
Power Consumption: Less than 345 WATTS
Fuses: (2) 5x20mm, 3A, 250V; Fast Acting for 125VAC
(2) 5x20mm, 1.6A, 250V; Fast Acting for 250VAC
Power Cord Color Code:
United States Outside United States
Hot (live) Black Brown
Neutral White Blue
Ground (earth) Green Green/Yellow
I.3 Specications
Torque Range: Low 797-7,970 dyne
•cm (designated on serial tag as 1/23 CAP)
High 18,100-181,000 dyne
•cm (designated on serial tag as 1.0 CAP)
Speeds: Variable speed from 5-1000 RPM
To Next Page
