Endure Balanced Flue 10
Assembly – Burner Bracket
2. Next un-pack the burner box and carefully un-pack the
burner assembly.

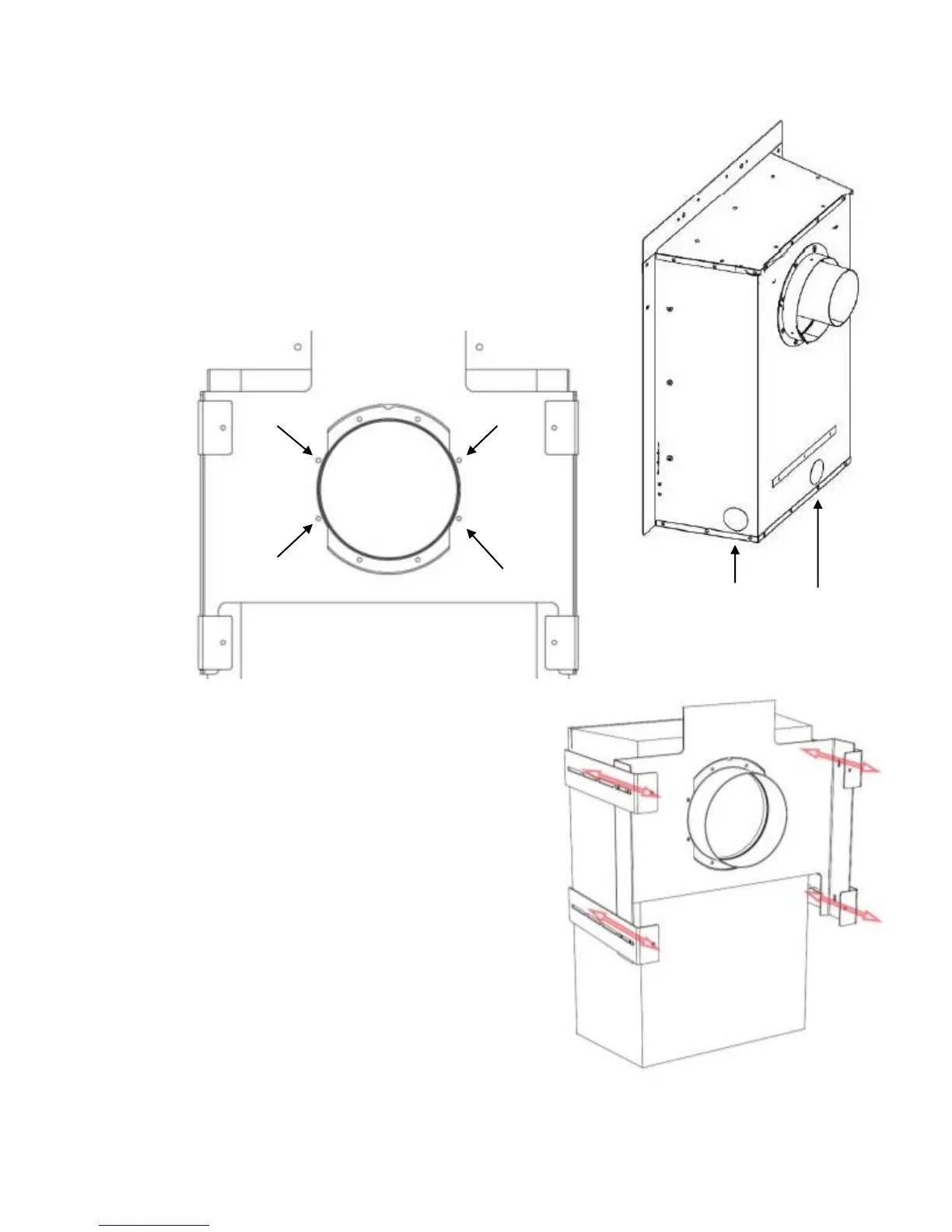

3. Remove the four screws marked on the diagram
below, align the burner bracket with these four fixing
points and secure the burner bracket the the rear of
the burner assembly.
4. Slacken off the fixings on each of the four
bracket arms (two on each arm) to allow the
arms to slide. These arms will need to be
adjusted suit your installation.
5. Use the provided cardboard template to
help you mark the position for the flue.
Please note that timber frames buildings will
require a metal sleeve and a minimum
25mm air gap between the outside diameter
of the flue pipe and the metal sleeve.
Openings for gas supply pipe
