Endure Balanced Flue 12
Assembly – Terminal Guard
The terminal guard can now be assembled and fitted to the outside wall.
The terminal guard supplied with this appliance is required to be fitted, when installed in
England and Wales if the terminal could come into contact with people moving around
the building or if the terminal could become damaged.
If being installed into the republic of Ireland, refer to the current edition of IS813
“Domestic Gas Installations” if in doubt it is recommended that the terminal guard is
always fitted.

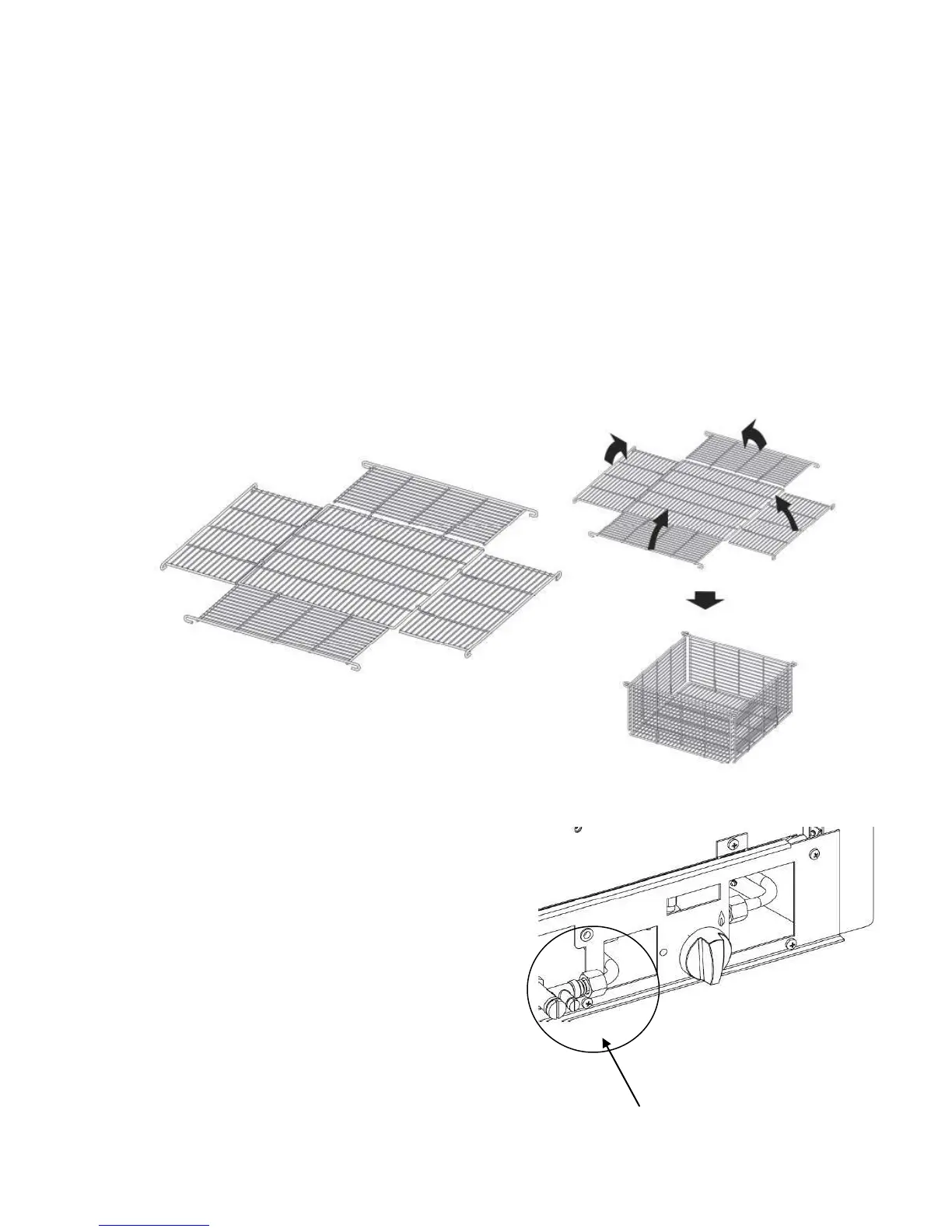

The diagram below shows the method of assembly of the terminal guard. The guard
should be secured to the wall using appropriate fixings and plugs (not supplied).
Assembly – Gas Supply Connection
In all installation conditions the gas connection
should be provided using 8mm (O/O) copper
tubing. The diameter of the gas supply pipe will
only reduce down to 8mm a maximum of 1
metre from the appliance. The connection to
the appliance will be made using the supplied
pressure test elbow. This elbow is supplied
loose and should be fitted as per the label on
the instruction pocket.
Connection Point
