Endure Balanced Flue 7
Siting the Appliance
This appliance MUST only be installed against a non-combustible surface. Combustible
surfaces will require shielding in accordance with the necessary building regulations. The
information on this page provides details of the maximum and minimum flue length,
appliance clearances can be found on the next page.

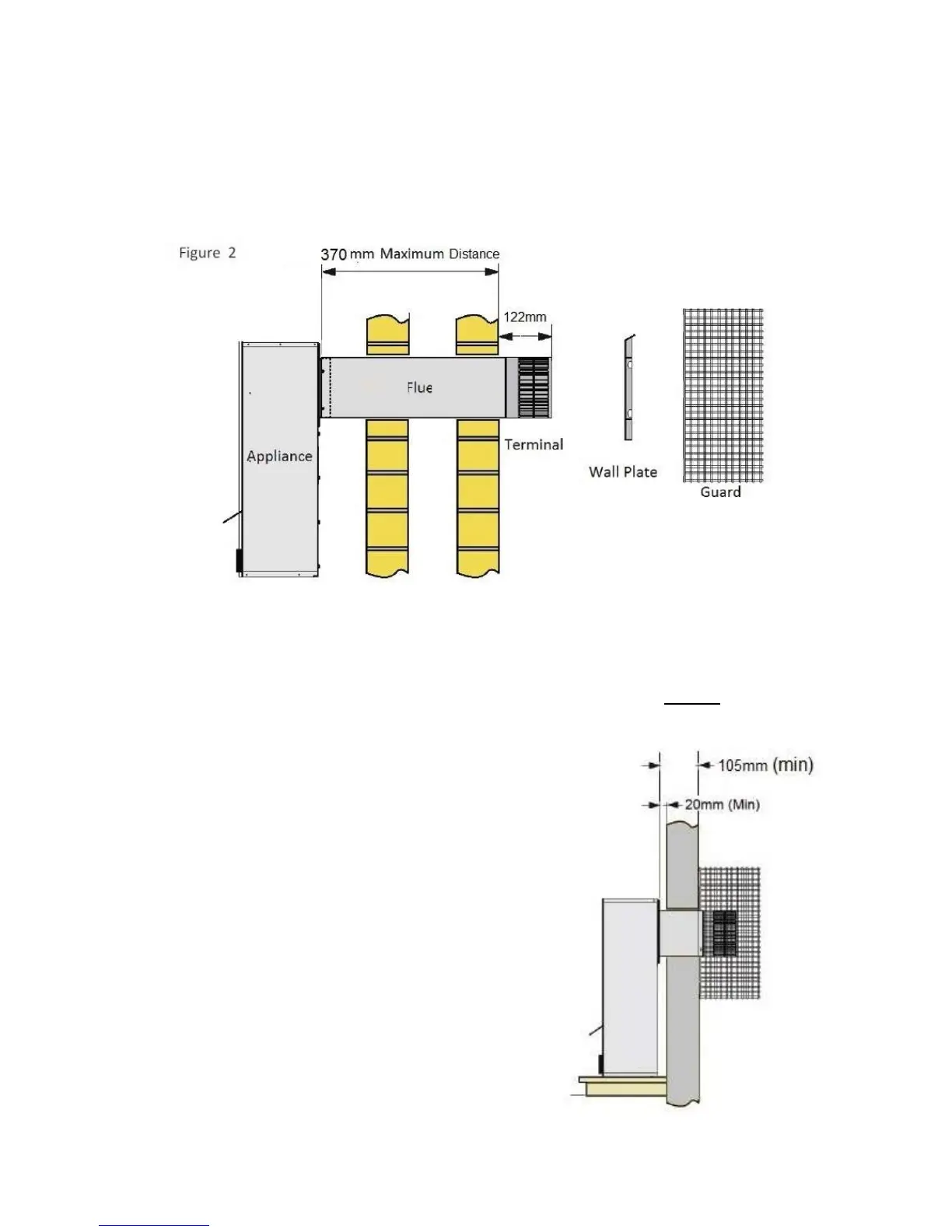

Figure 2 above shows the maximum flue length of 370mm. If the wall thickness (inside
face of internal wall to the external face of the external wall) exceeds 350mm then the
installation cannot proceed.
Please note a 20mm clearance is required behind the appliance, this cannot be
reduced.
The minimum flue length is 105mm as shown right,
this dimension is worth noting when installing into
timber frame buildings. The bracket arms allow the
appliance to be further into the room (should your
wall thickness be less than 105mm) but please note
the 50mm hearth protrusion required in front of the
appliance.
A cardboard template is provided to assist with
marking out the flue position for drilling/cutting.
