Siting the Appliance

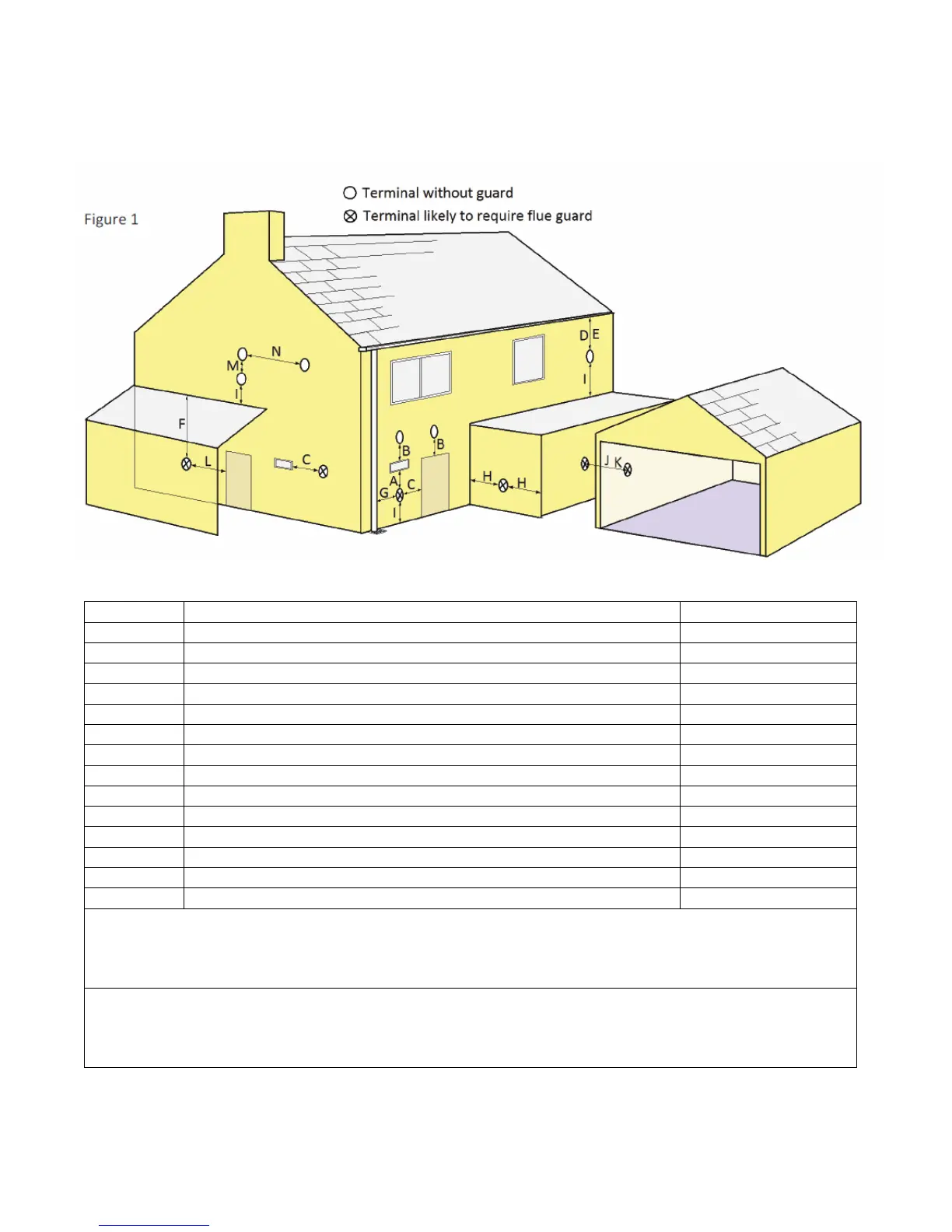

Regulatory requirements for flue terminal location
Key
Terminal Position
Minimum Distance
A*
Directly below an opening, air brick, opening window etc
300mm
B*
Above an opening, air brick, opening window etc
300mm
C*
Horixontally to an opening, air brick, opening window etc
300mm
D
Below gutters, soil pipes or drains
300mm
E
Below eaves
300mm
F
Below balconies or car port roof
600mm
G
Grom a vertical drain pipe or soil pipe
300mm
H**
From an internal or external corner
600mm
I
Above ground, roof or balcony level
300mm
J
From a surface facing the terminal
600mm
K
From a terminal facing a terminal
600mm
L
From an opening in a car port (e.g. door, window) into dwelling
1200mm
M
Vertically from a terminal on the same wall
1500mm
N
Horizontally from a terminal on the same wall
300mm
* in addition, the terminal should not be nearer than 300mm to an opening in the building fabric
formed for the purpose of accomadating a built-in element such as a window frame or door frame.
** The reference to external corners does not apply to building protrusions not exceeding 450mm,
such as disused chimneys or external walls.
A terminal guard is supplied with this appliance. It is a requirement in England and Wales that this
guard is fitted where the flue terminal may come into contact with people near the building or be
susceptible to damage. In the republic of Ireland the installation must conform to the relevant
section of IS813 “Domestic Gas Installations”.
