Brother ADS-2400N User Manual

Scan Using the Control Panel
175
7

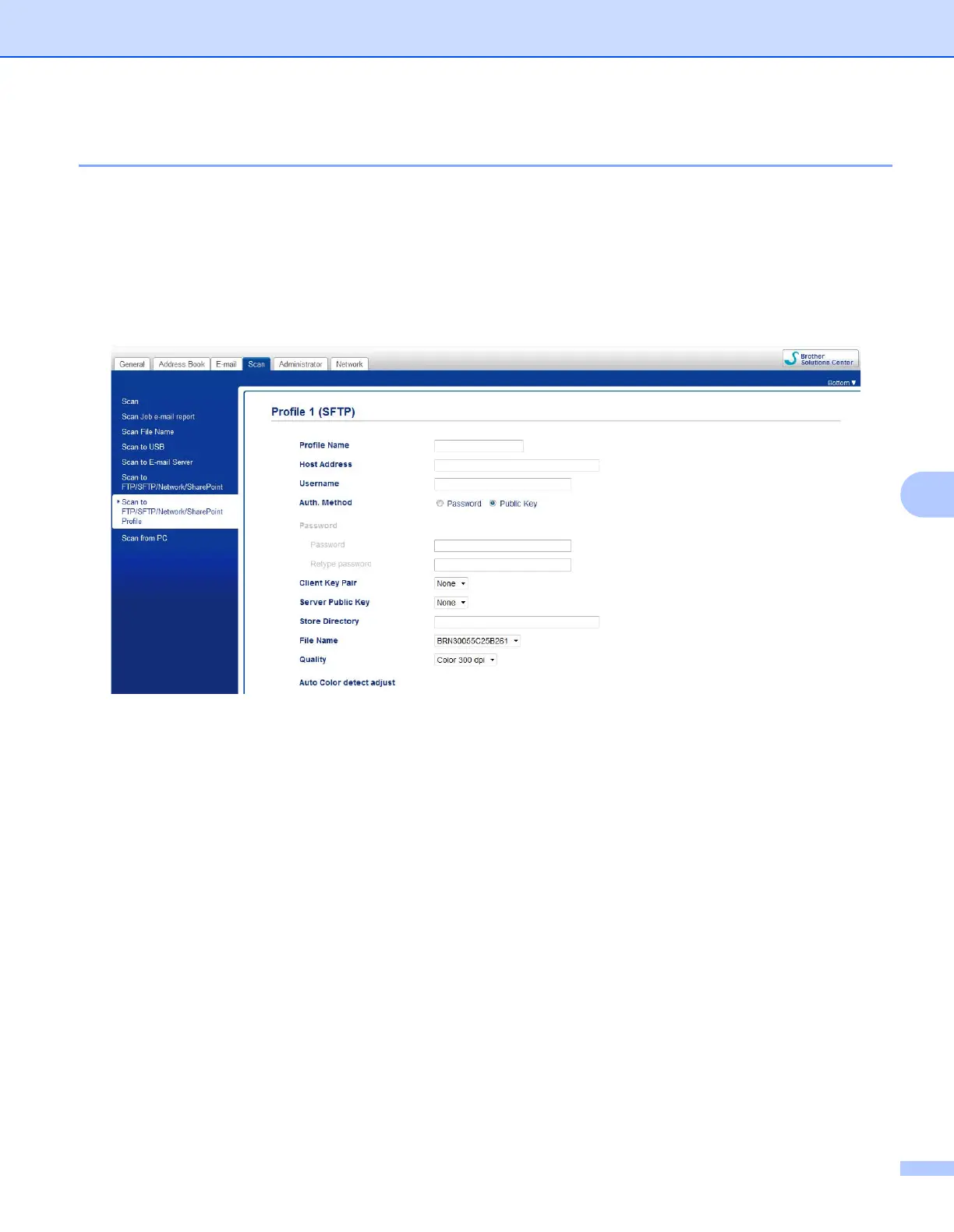

Configure the SFTP Default Settings 7
1 Click the Scan tab.
2 Click the Scan to FTP/SFTP/Network/SharePoint menu in the left navigation bar.
3 Select the SFTP option, and then click Submit.
4 Click the Scan to FTP/SFTP/Network/SharePoint Profile menu in the left navigation bar.
5 Select the profile you want to set up or change.
6 In the Profile Name field, type a name for this server profile (up to 15 alphanumeric characters). This
name appears in Destination in Scan to Network Device from the Scan tab (ADS-2400N / ADS-3000N)
or on the Touchscreen of the machine (ADS-2800W / ADS-3600W).
7 In the Host Address field, type the Host Address (for example: “sftp.example.com”; up to 64 characters)
or the IP address (for example: “192.23.56.189”), and type the path (up to 60 characters) to the folder
on the SFTP server where you want to send your scanned data. Do not type a slash mark at the
beginning of the path.
8 In the Username field, type the user name (up to 32 characters) that has permission to write data to the
SFTP server.
9 In the Auth. Method field, select Password or Public Key.
0 Do one of the following:
 If you have selected Password, type the password (up to 32 characters) associated with the user
name you typed in the Username field. Type the password again in the Retype Password field.
 If you have selected Public Key, select the authentication type from the Client Key Pair drop-down list.

Brother ADS-2400N Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	30 bit
Maximum scan size	215.9 x 355 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	30 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	60 ipm
Scanner type	ADF scanner
Product color	Black
Scan to	E-mail, FTP, File, Image, OCR, USB
Sensor type	Dual CIS
Scan drivers	ISIS, TWAIN, WIA
Internal memory	256 MB
Built-in processor	Cortex-A9
Processor frequency	800 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	2500 pages
Supported network protocols	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, Custom Raw Port/Port9100, SMTP Client, FTP Client and Server, LDAP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Scan), SNTP Client
Auto document feeder (ADF) input capacity	50 sheets
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
ISO B-series sizes (B0...B9)	B5, B6, B7, B8
Scanning media types supported	Business Card, Envelopes, Plastic Card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
USB version	2.0
Standard interfaces	Ethernet, USB 2.0
Power supply type	AC
Power consumption (off)	0.12 W
Power consumption (standby)	3 W
Power consumption (typical)	27 W
Power consumption (PowerSave)	1.9 W
PC connection	RJ-45
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	254 mm
Package width	382 mm
Package height	330 mm
Package weight	6200 g
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	258 mm
Width	306 mm
Height	250 mm
Weight	4450 g
