3. INST
ALLA
TION
4
BAS-31
1H

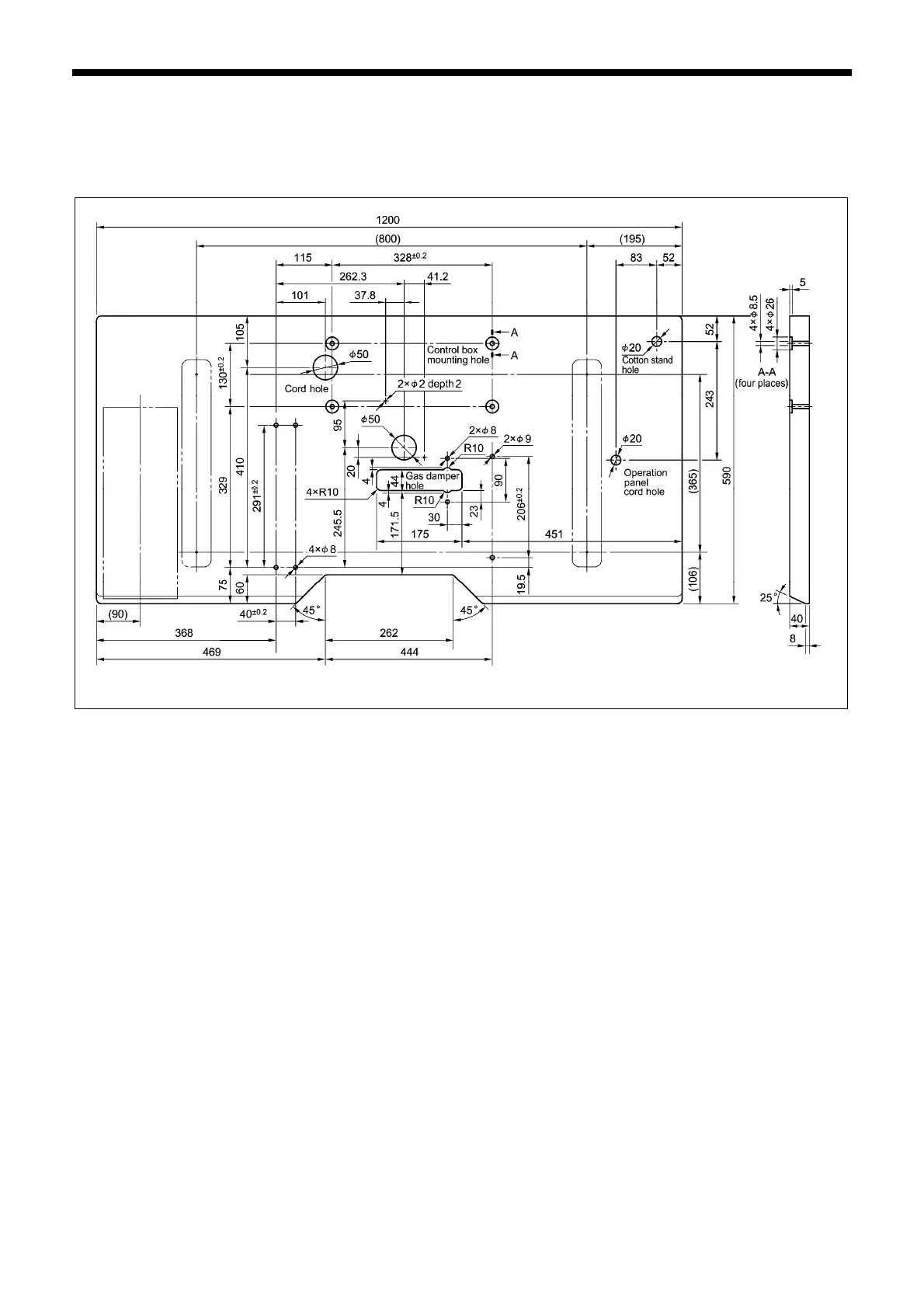

3-1. T
able processing diagram
•
The thickness of the table
should be at least 40 mm, and it
should be stron
g enough to bear t
he weight and vibration
of the
sewing machine.
•
Check that the contro
l box is at least 10
mm aw
ay from the leg. If the
control
box and the leg are too close to
gether, it may
result
in incorrect sewing machine ope
ration.
3181B
11
13
