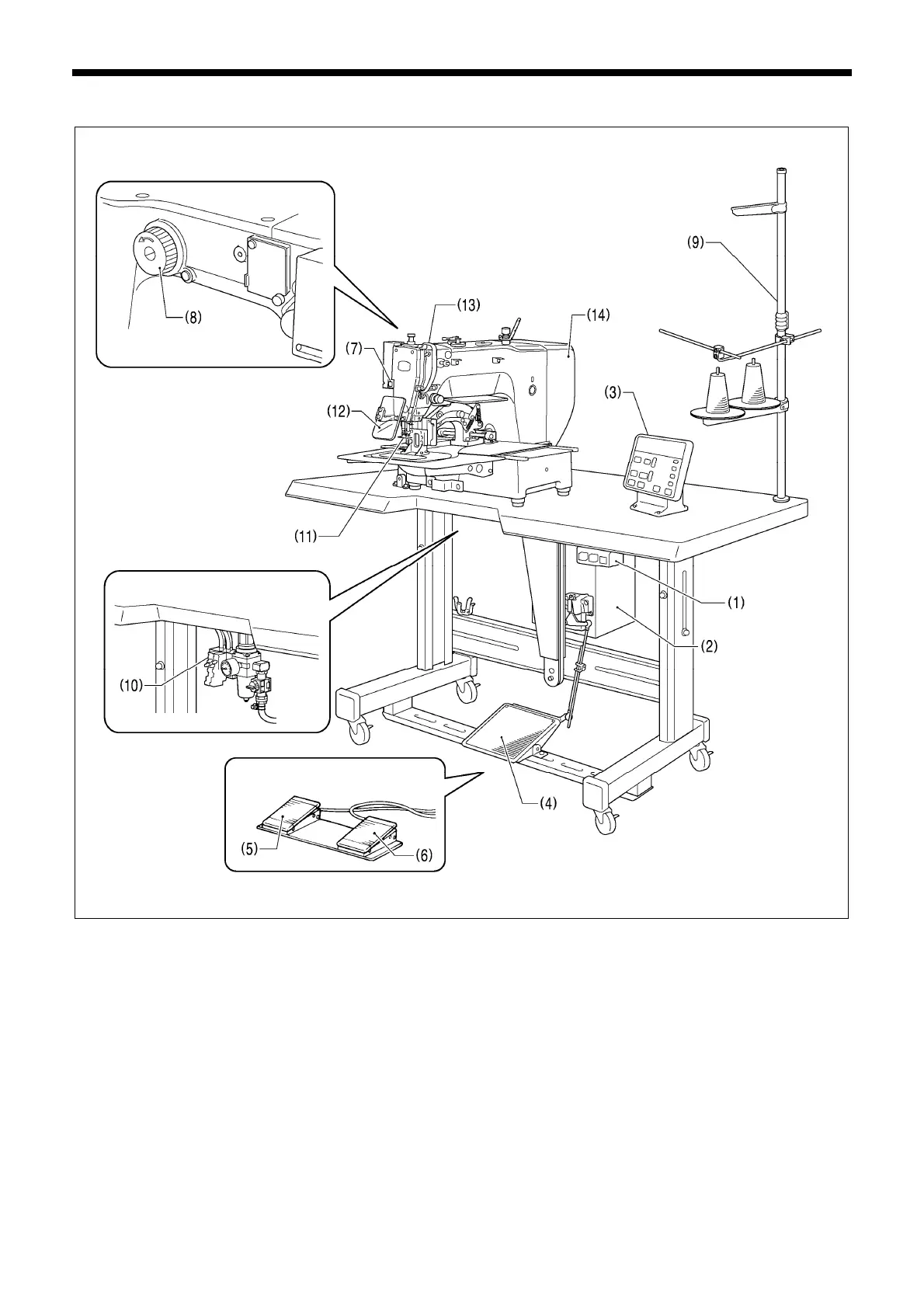

1. NAMES OF MAJOR P
ARTS
BAS-31
1H
1
1
. NAMES OF MAJOR P
ARTS
(1) Power switch
Safety devices:
(2) Control box
(1
1) Finger guard
(3) Operation panel
(12) Eye guard
(4) Foot switch
(13) Thread ta
ke-up cover
(5) W
ork
cl
amp
sw
itch
(14) Rear cover
(6) S
tart switch
(7) STOP
switch
(8) Pulley
(9) Cotton stand
(10) Solenoid valve (pneumatic
work clamp specifications)
3030B
T
wo-pedal foot switch
8
10
Table of Contents
Table of Contents
8
Names of Major Parts
9
Useful Functions for Optimum Sewing
10
Installation
11
Installing the Control Box
13
Installing the Oil Pan
13
Installing the Machine Head
14
Installing the Operation Panel
17
Installing the Two-Pedal Foot Switch
18
Connecting the Cords
18
Connecting the Ground Wire
21
Connecting the Power Cord
22
Installing the Cotton Stand
25
Installing the Pneumatic Unit (Pneumatic Work Clamp Specifications)
26
Installing the Eye Guard
27
Installing the Side Cover and Rear Cover
27
Lubrication
28
Installing the Machine Head Fixing Bolt
29
Installing the Bobbin Winder Tension
29
Checking the Machine Head Switch
29
Preparation before Sewing
30
Installing the Needle
30
Threading the Upper Thread
30
Winding the Lower Thread
32
Installing the Bobbin Case
33
Thread Tension
34
Lower Thread Tension
34
Upper Thread Tension
34
Starting up
35
Using the Operation Panel (Basic Operations)
36
Name and Function of each Operation Panel Item
36
Program Setting Method
38
Parameter List
39
Copying Programs
41
Checking the Sewing Pattern
42
Setting the Work Clamp Lift Amount
43
Using Sd Cards
45
Notes on Handling SD Cards (Commercially Available)
45
Preparation for Reading and Writing Data
46
Reading Additional Sewing Data
47
Sewing
48
Using the STOP Switch
49
Document CD
50
