7. ASSEMBLY
BAS-31
1H
82

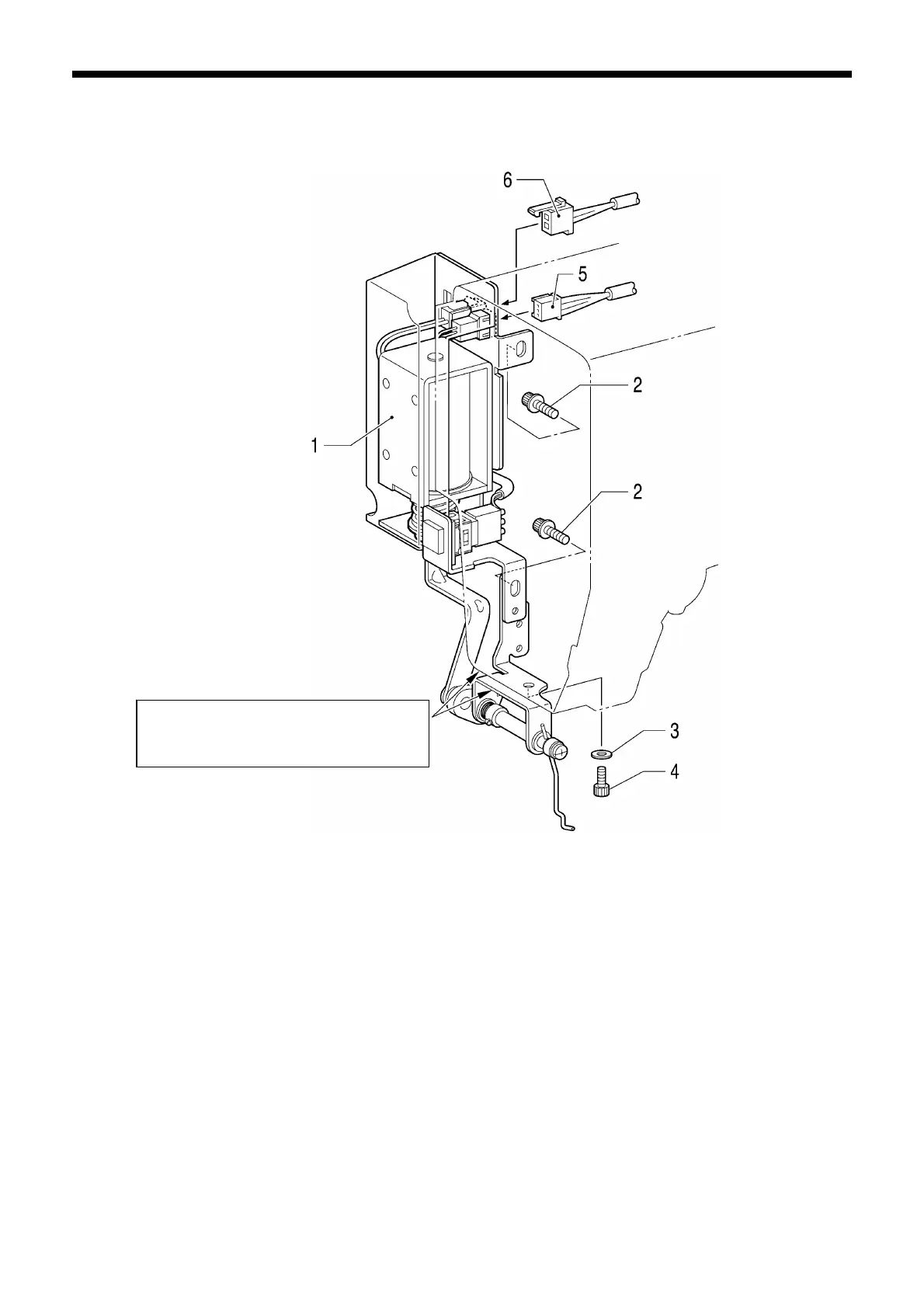

7-13. Thread
wiper
mechanism
Align the thread wiper shaft bracket and the
bottom of the arm and then tighten the two
bolts with w
asher (2).
1. Thread
wiper
unit
2.
Bolts with washer [2 pcs.]
3. Plain
washer
4. Bolt
5.
STOP switch harness
6.
Thread wiper solenoi
d harness
3341B
90
92
