3. PREPARATION

BAS-341F, 342F

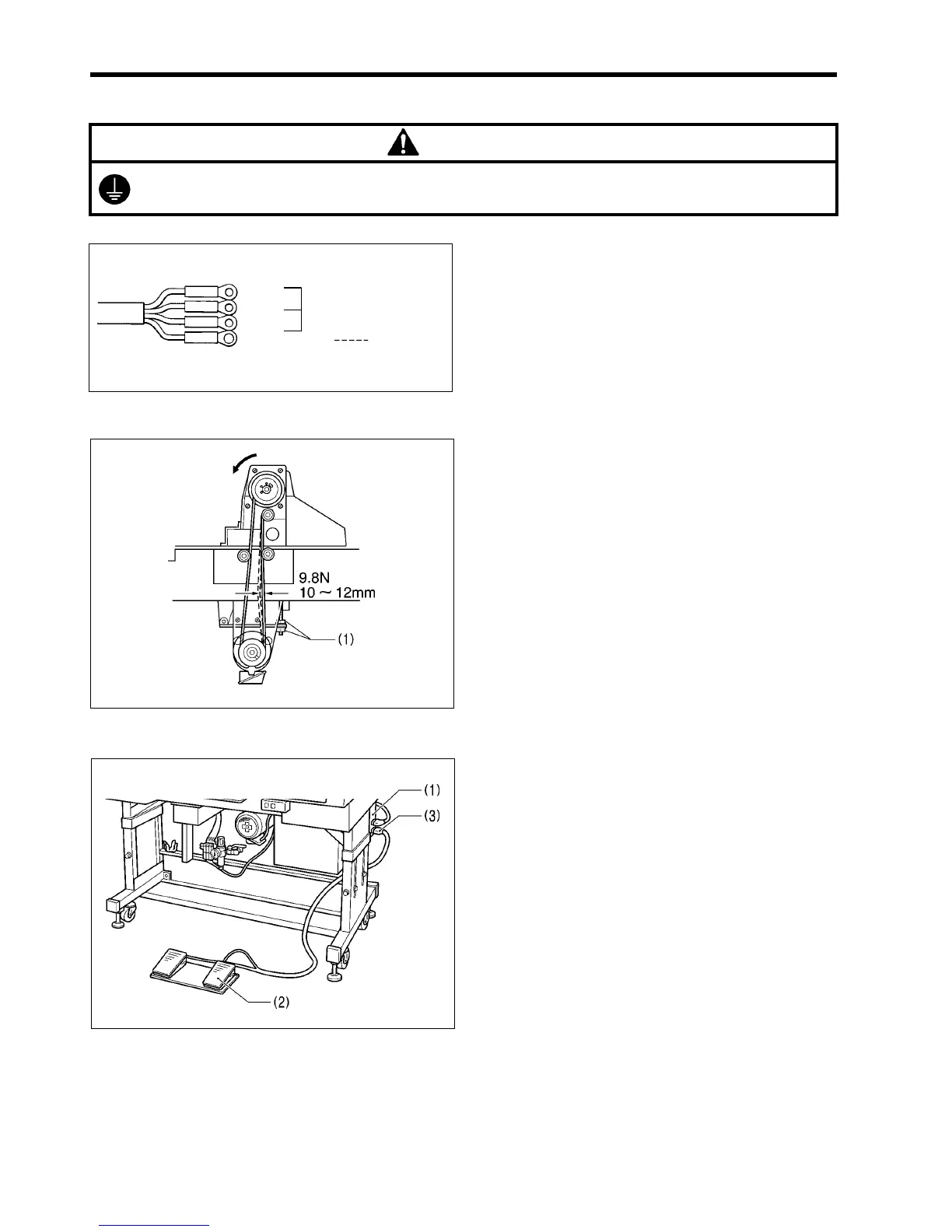

3-4. Connecting the ground wire

CAUTION

Be sure to connect the ground. If the ground connection is not secure, you run the risk of receiving a serious

electric shock.

Connection method for 3-phase power supply.

3-5. V-belt tension

These should approximately 10 - 12 mm of slack when V-

belt is loaded at 9.8 N . To adjust, loosen the two nuts (1),

and shift the motor up or down.

3-6. Installing the foot switch

Insert the connector of the foot switch (2) into the

connector (3) of the control box (1).

Red

White

Black

Yellow/Greeen

3-phase

power supply

Yellow/Green

0064Q

Connect to

ground

1923S

1924S
