9. STANDARD ADJUSTMENTS
BAS-341F, 342F
34
9-6. Adjusting the movable knife

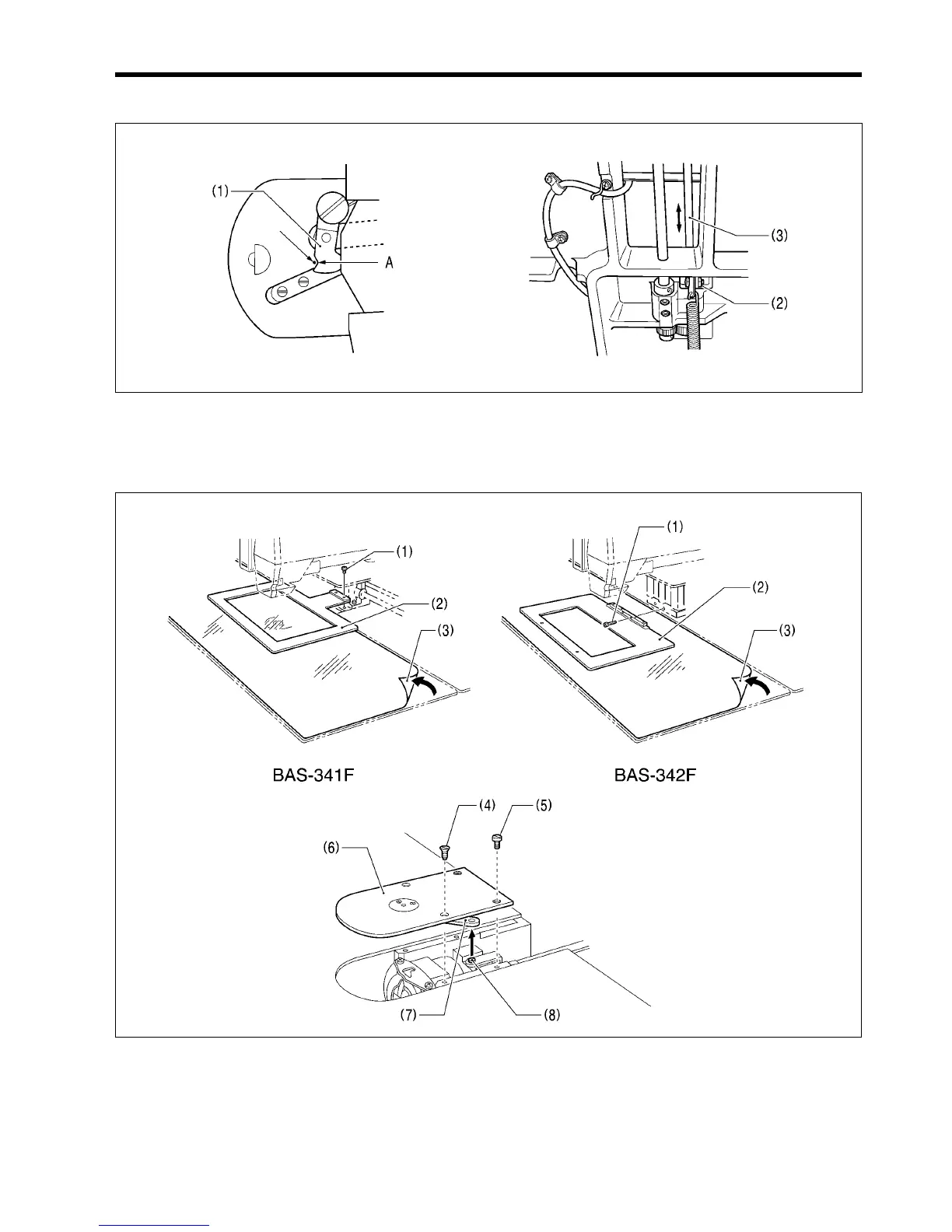

Loosen the nut (2) and move thread trimmer rod L (3) to the left or right to adjust so that the V section A of the movable
knife (1) is aligned with the index mark B on the needle plate when the machine is at the stop position.
■ Replacing the movable and fixed knives
1. Remove the screws (1) and the feed plate (2). Then tear off the auxiliary plate sheet (3). Remove screws (4) and (5),
and needle plate (6). Now disconnect the thread cutter connecting rod (7) from stud (8). (Figure is BAS-342F.)
