4. INSTALLATION
13
BAS-342G

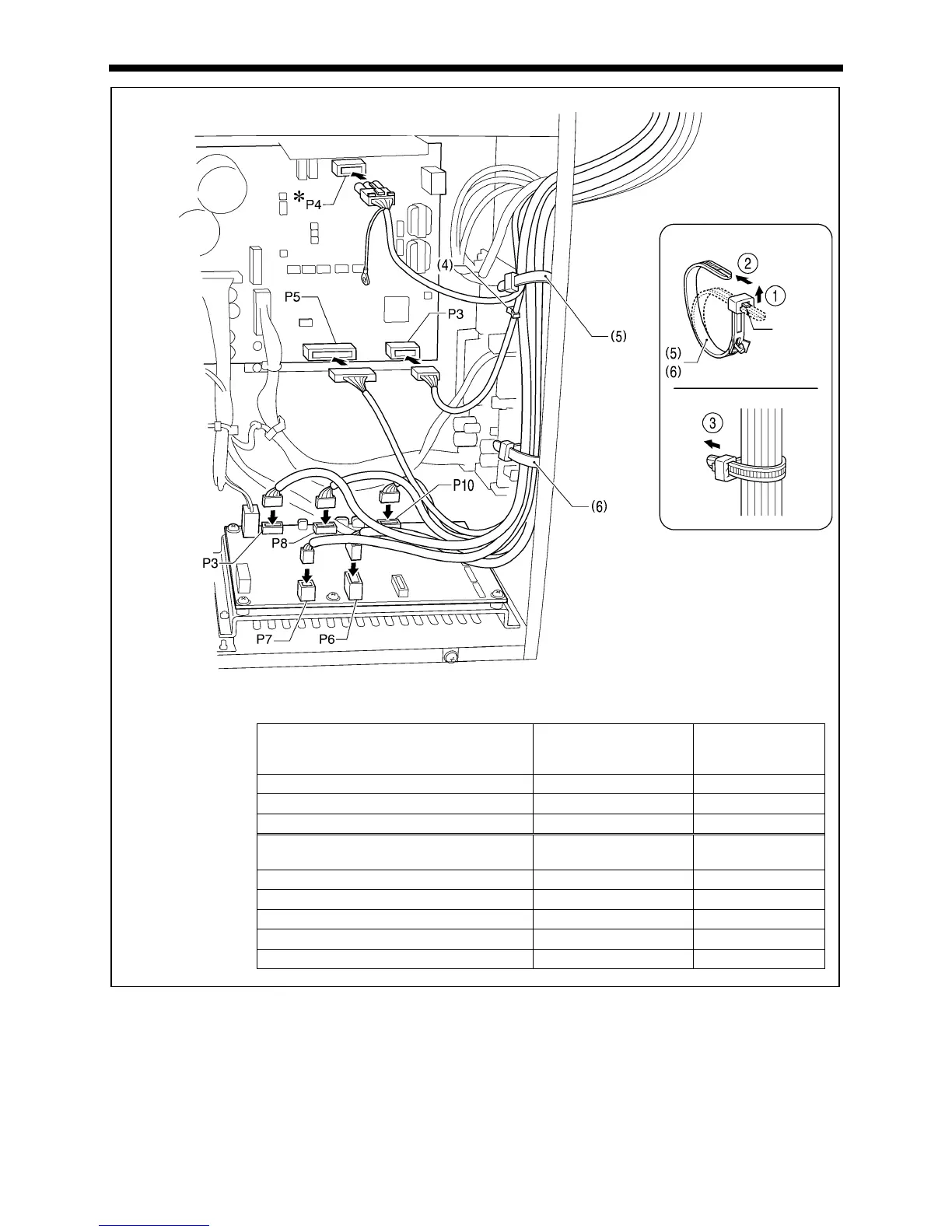

<Power supply motor P.C. board>
<PMD P.C. board>
Connector
Connection location on
power supply motor P.C.
board
Cord clamp/cable tie
Machine head memory 7-pin P3 (HEAD-M) (4)
Upper shaft motor 3-pin P4 (UVW) (5)
Synchronizer 14-pin P5 (SYNC) (5), (6)
Connector
Connection location on
PMD P.C. board
Cable tie
Work clamp pulse motor 4-pin black P3 (PPM) (5), (6)
Thread trimmer solenoid 6-pin P6 (SOL1) (5), (6)
Tension release solenoid 4-pin P7 (SOL2) (5), (6)
Y pulse motor 4-pin blue P8 (YPM) (5), (6)
X pulse motor 4-pin white P10 (XPM) (5), (6)
<Removing>
Press
the tab.
<Securing>
3979
harnesses so that they do not touch the
PMD P.C.
* Be sure to make the ground connection.
(Refer to "4-14. Connecting the ground".)
