Chapter 8 Creating Production Report
BES-962BC
•
BES-1262BC
216

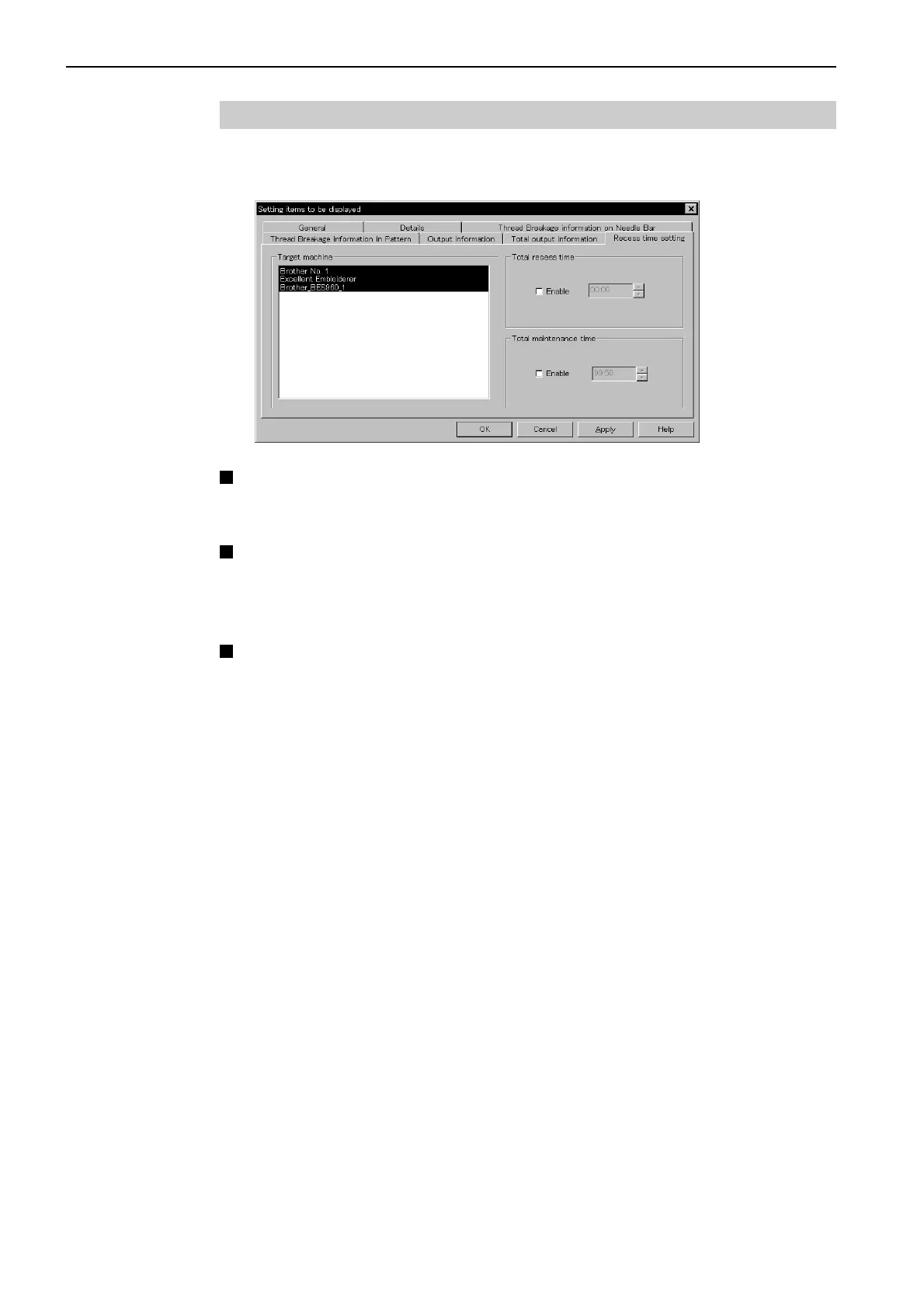

Recess Time Setting
Sets the time not to be included in the calculation. This time is displayed on the
"Output" report as "Time Excluded".
Target machine
Click and select the applicable machine for calculation.
Total recess time
Set the time not to be included in the day-to-day calculation during the designated
period.
Total maintenance time
Set the time not to be included in the calculation throughout the period.
217
