2) Attach the second side CIS flat cable to the second side CIS unit.
3) Pass the second side CIS flat cable through the upper ADF chute and the lower ADF
chute.

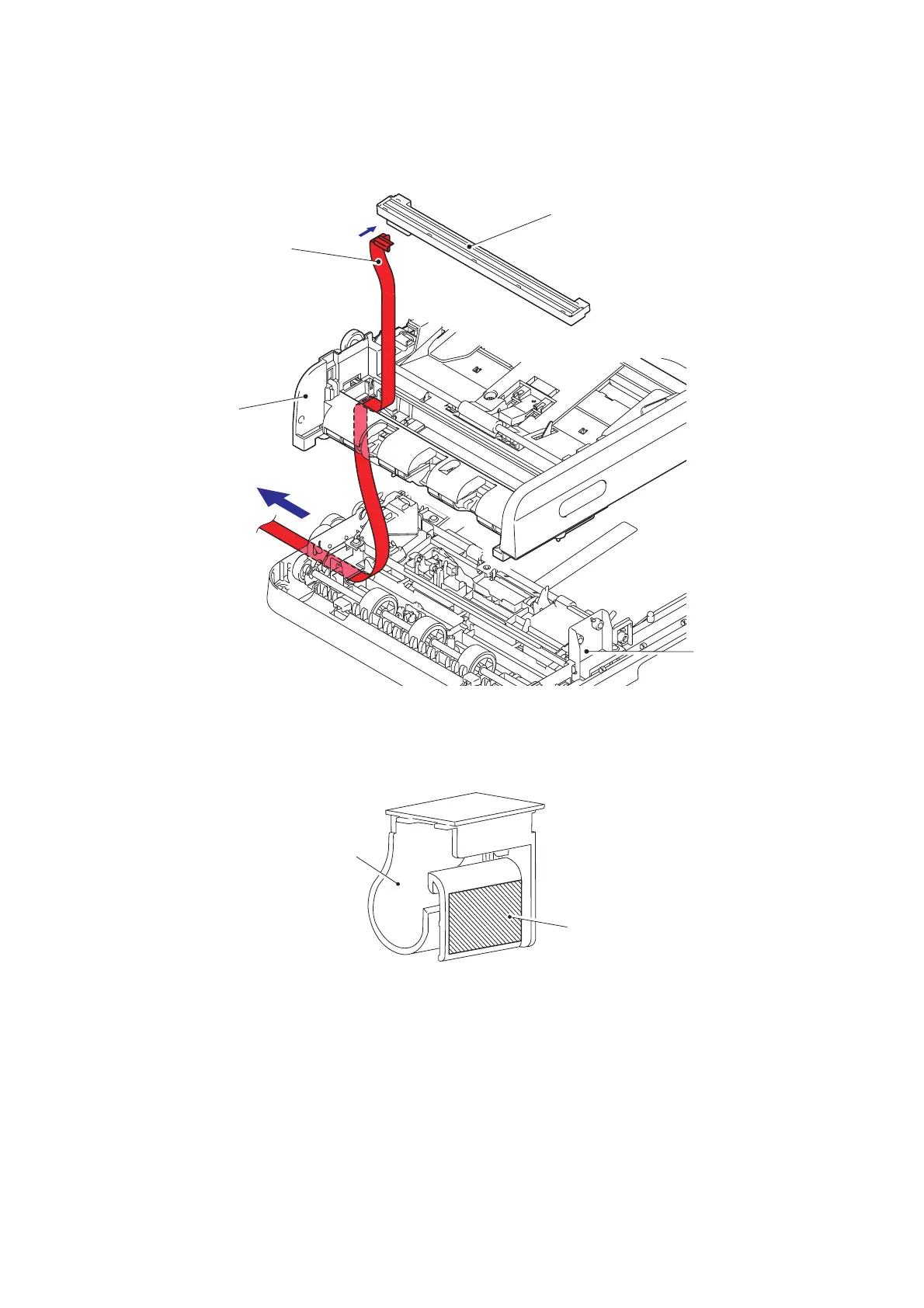

Fig. 3-56
4) Attach the double-sided tape to the FFC holder ASSY as shown in the illustration below. (If
the old double-sided tape remains attached, replace it with new tape.)
Fig. 3-57
Second side CIS unit
Lower ADF chute
Second side CIS flat cable
Upper ADF chute
Double-sided tape
FFC holder ASSY
