9.24 Relay front PCB ASSY
(1) Release the relay front harness from the securing fixtures.
(2) Release the two hooks to remove the front cover sensor from the machine, and then
release the front cover sensor harness from the hook.
(3) Remove the two hooks to remove the relay front PCB ASSY from the machine, and
release all harnesses from hook A.
(4) Disconnect all harnesses from the relay front PCB ASSY.

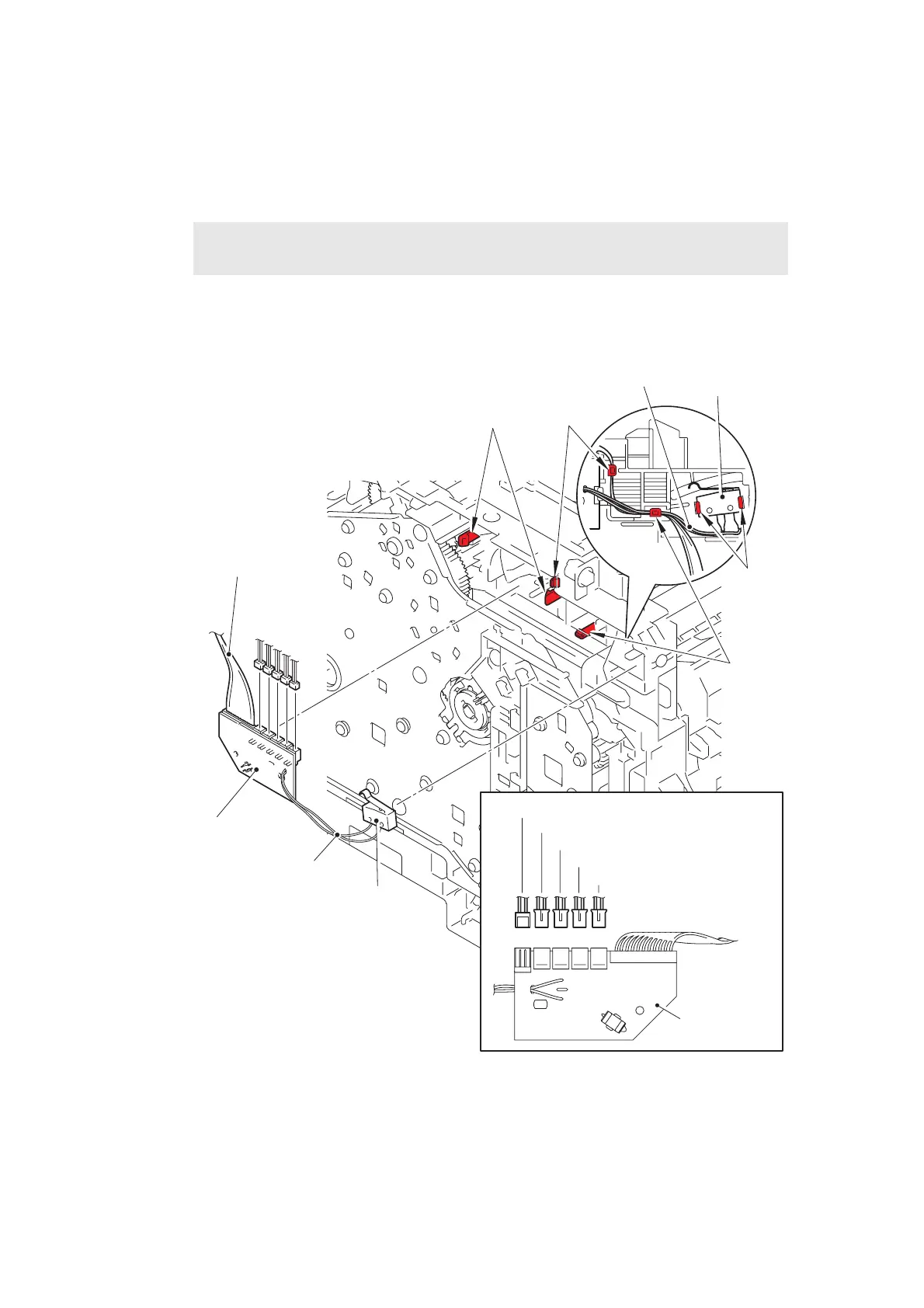

Fig. 3-114
Harness routing: Refer to “1.Main PCB ASSY” and “2.Relay front PCB ASSY”.
Note:
• When removing the front cover sensor, push it from the rear to remove it.
Relay front PCB ASSY
Hooks
Relay front PCB
ASSY
Front cover sensor
Hooks
Toner sensor harness
Registration clutch harness
T1 clutch harness
MP solenoid harness
Develop clutch harness
Hook A
Hook
Front cover sensor
Front cover sensor harness
Front cover sensor harness
Relay front harness
