9.17 Wireless LAN PCB ASSY (Wireless network model only)
(1) Remove the Harness of the Wireless LAN PCB ASSY from the Guides of the Main frame
L ASSY.
(2) Disconnect the Connector of the Wireless LAN PCB ASSY from the Main PCB ASSY.
(3) Release the Hooks to remove the Wireless LAN PCB ASSY.

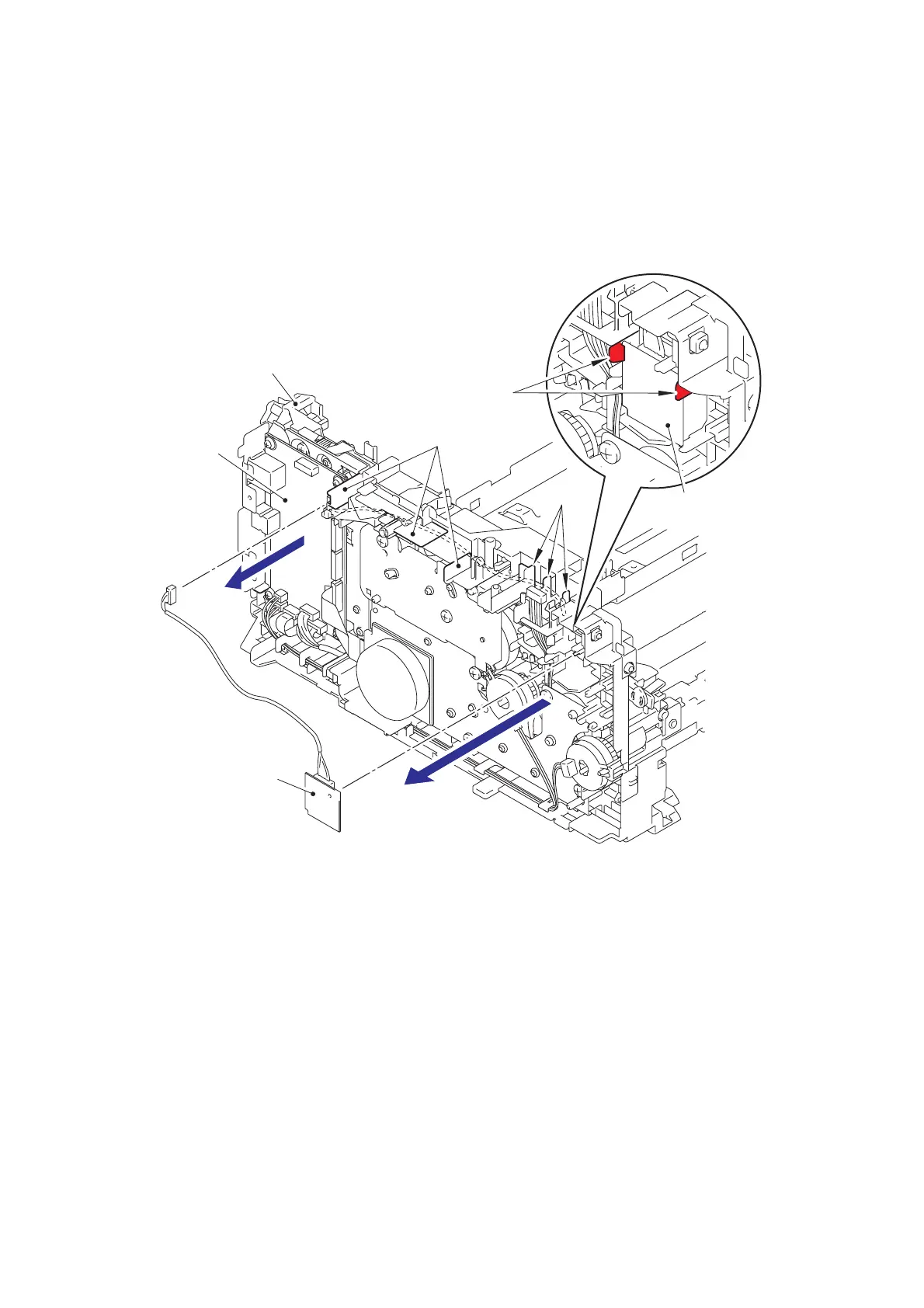

Fig. 3-46
Hooks
Main frame L ASSY
Guides
Guides
Wireless LAN PCB ASSY
Wireless LAN PCB ASSY
Main PCB ASSY
