2-30
Confidential

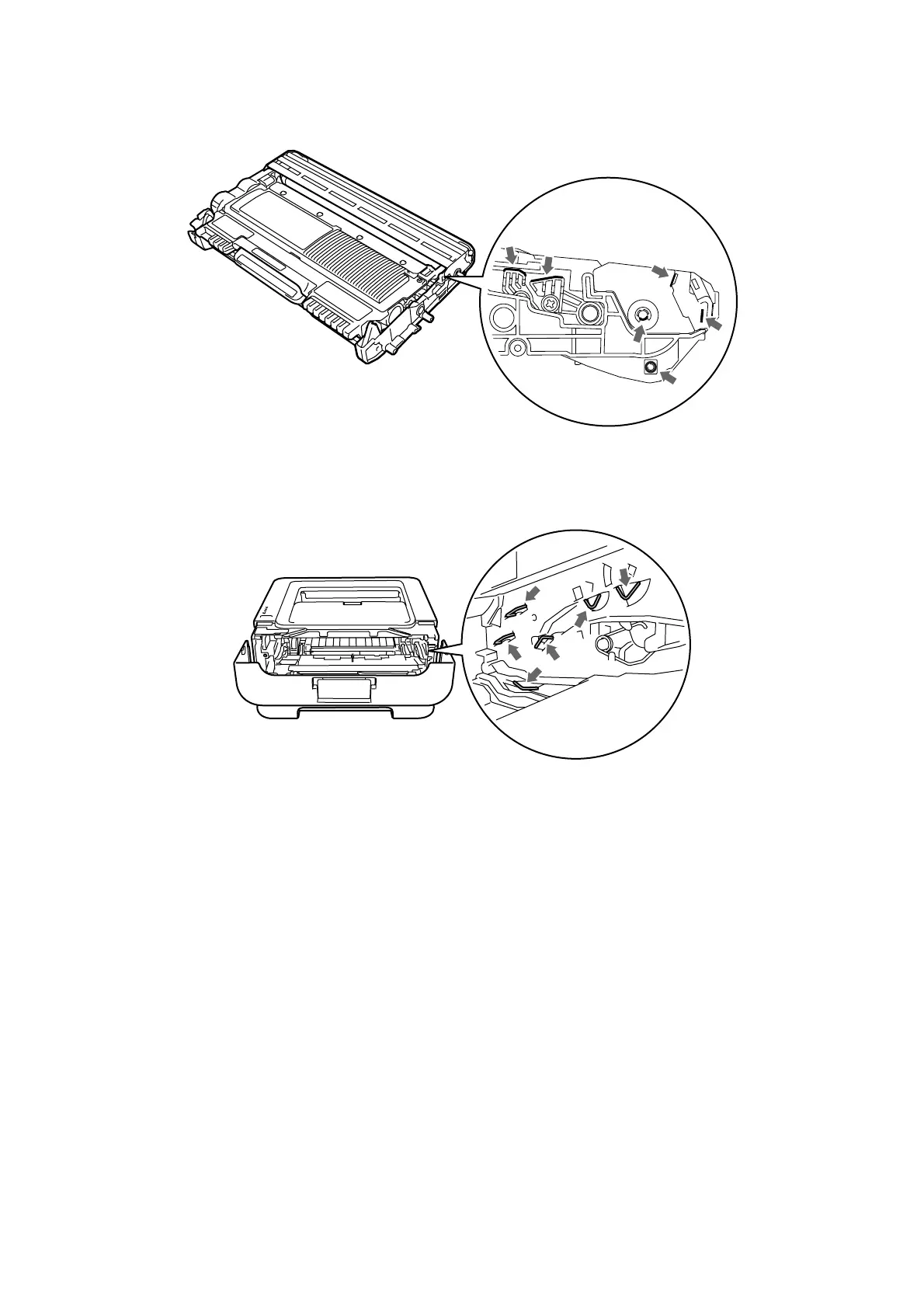

■ Electrodes location of the toner cartridge and drum unit
Fig. 2-8
■ Electrodes location of the printer
Fig. 2-9
<How to clean the electrodes>
Turn off the power switch. Unplug the printer from the AC power outlet, and leave the printer for
a few minutes. Then, wipe the electrodes above carefully with a dry lint-free cloth. Be careful
not to change the shapes of the electrodes.
Side surface of
Drum unit
To Next Page
