Brother HL-5250DN series User Manual

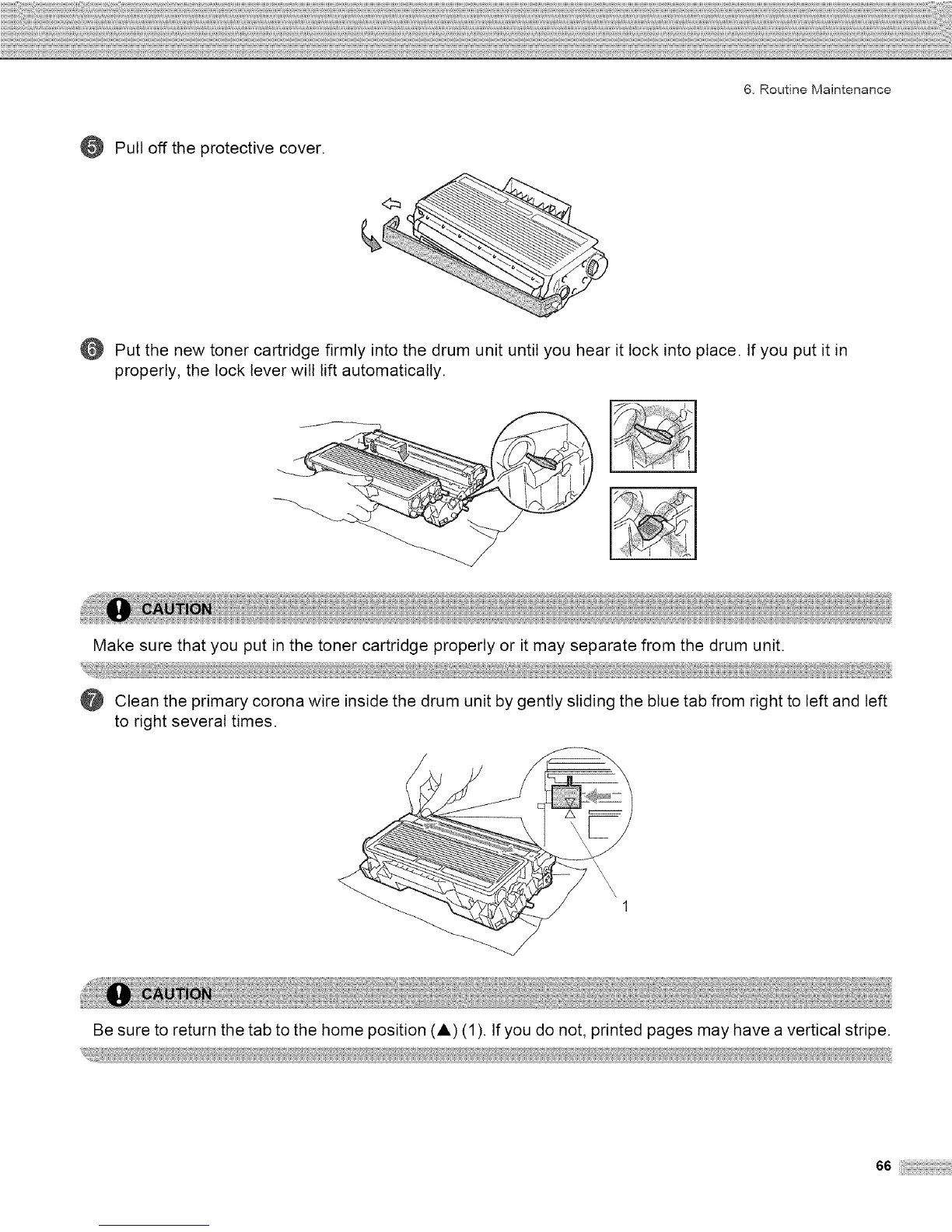

6, Routine Maintenance
@
@
Pull off the protective cover.
Put the new toner cartridge firmly into the drum unit until you hear it lock into place. If you put it in
properly, the lock lever will lift automatically.
Make sure that you put in the toner cartridge properly or it may separate from the drum unit.
@ Clean the primary corona wire inside the drum unit by gently sliding the blue tab from right to left and left
to right several times.
Be sure to return the tab to the home position (A) (1). If you do not, printed pages may have a vertical stripe.
66

Brother HL-5250DN series Specifications

General

Interface	Ethernet 10/100 Base-TX
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Ports Qty	1
Type	Print server
Product Type	Print server
Network Protocols	TCP/IP
Features	SNMP support
Compliant Standards	IEEE 802.3
Compatible Printers	Brother HL-5250DN
Operating Systems Supported	Linux
