Brother HL-5250DN series User Manual

6, Routine Maintenance
@

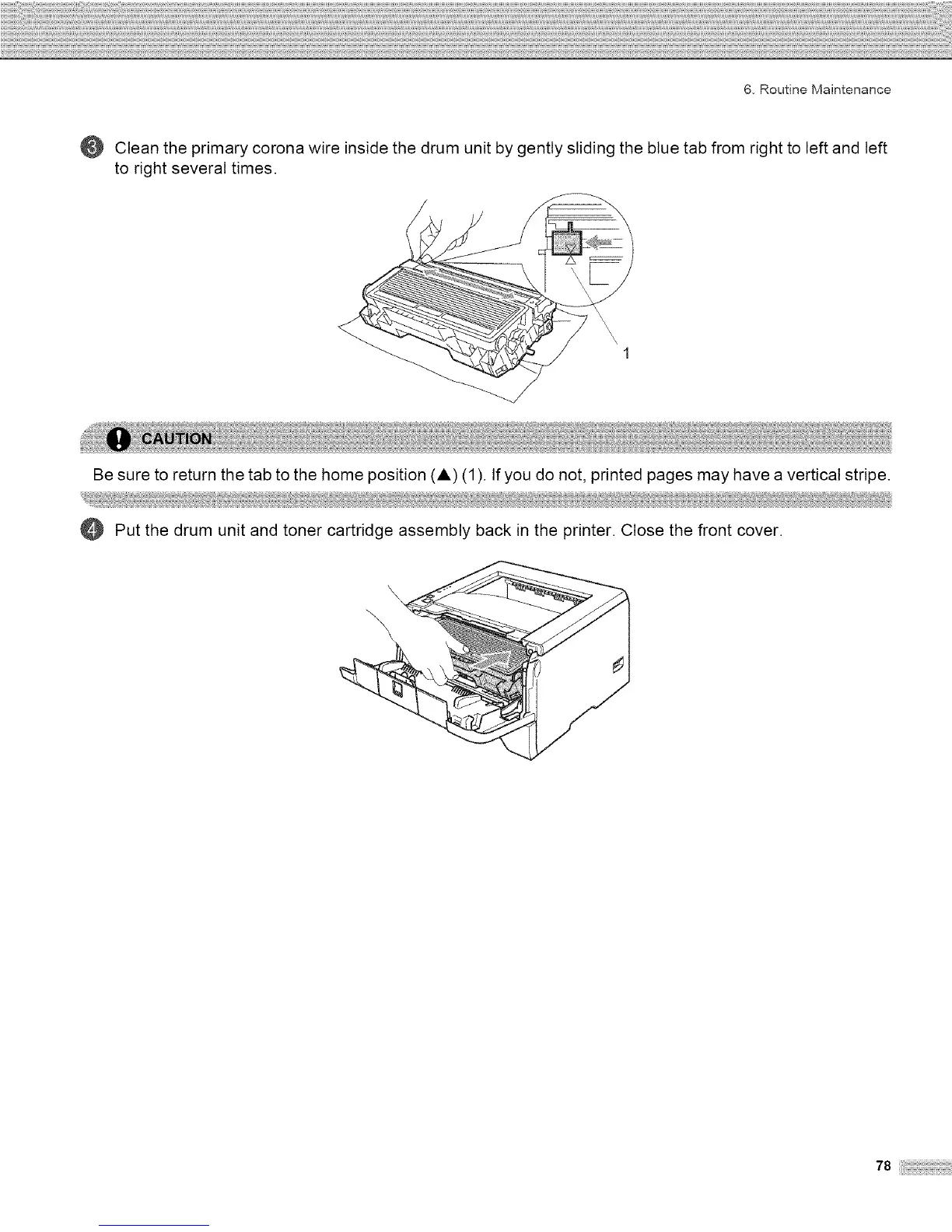

Clean the primary corona wire inside the drum unit by gently sliding the blue tab from right to left and left
to right several times.
Be sure to return the tab to the home position (A) (1). If you do not, printed pages may have a vertical stripe.
Put the drum unit and toner cartridge assembly back in the printer. Close the front cover.
\
\
78 iiii%ii_i_i!i!i!ii!ii_i_i!i!i!ii!ii_i_i!i!i!ii!ii_i_i!i!i!ii!ii_i_i_

Brother HL-5250DN series Specifications

General

Interface	Ethernet 10/100 Base-TX
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Ports Qty	1
Type	Print server
Product Type	Print server
Network Protocols	TCP/IP
Features	SNMP support
Compliant Standards	IEEE 802.3
Compatible Printers	Brother HL-5250DN
Operating Systems Supported	Linux
