 MP models

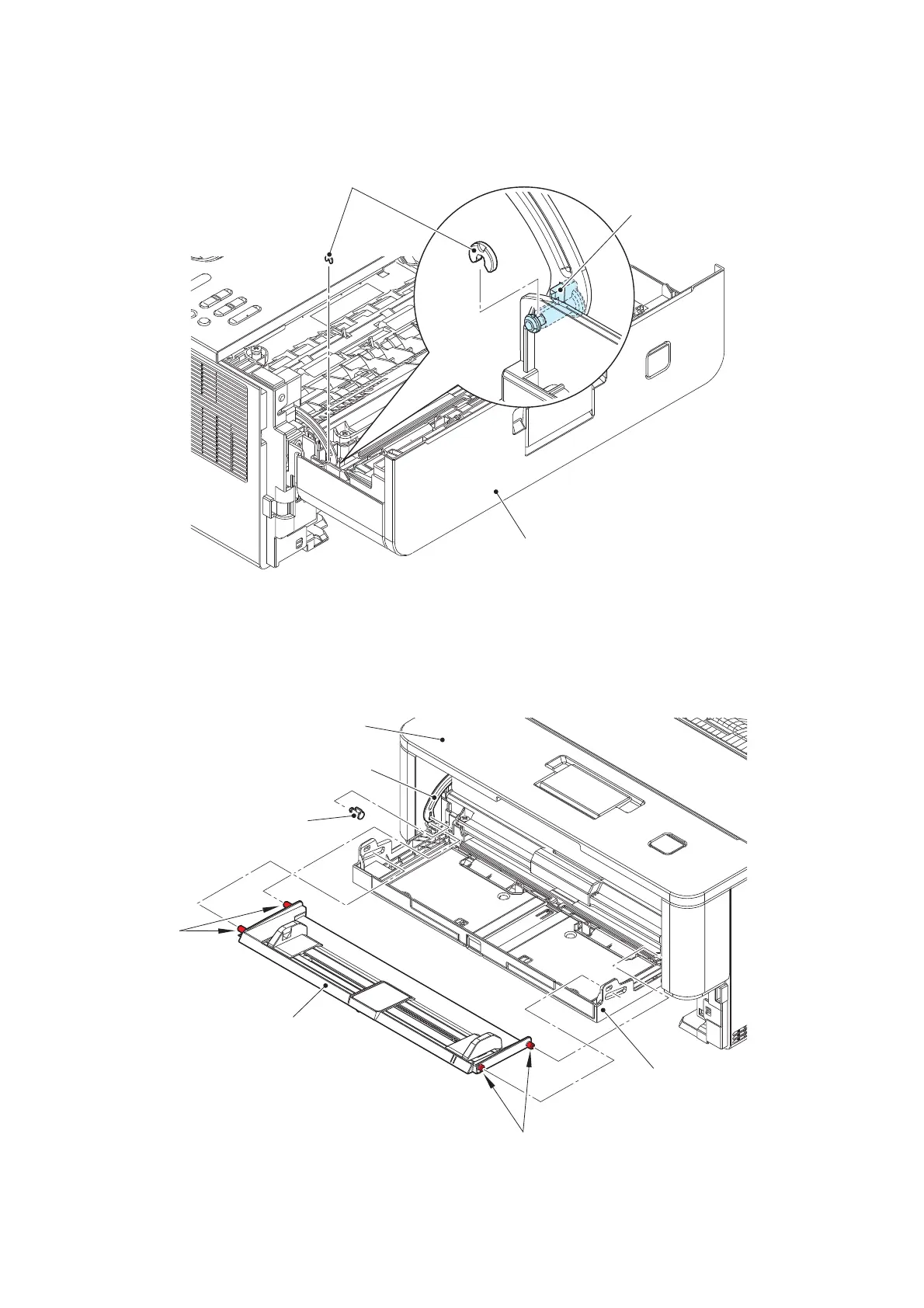

(1) Open the Front cover ASSY. Remove the Collar 5 from the Link MP pin.
Fig. 3-12
(2) Close the Front cover ASSY. Open the MP tray, and release each Boss and remove the MP
paper guide from the MP tray.
(3) Pull out the Link MP pin to remove the Develop joint link MP from the Front cover ASSY.
Fig. 3-13
Front cover ASSY
Collar 5
Link MP pin
MP tray
Front cover ASSY
Develop joint link MP
Link MP pin
Bosses
MP paper guide
Bosses
