Brother HL-L2370DN Service Manual

3-39
Confidential
9.15 Relay PCB ASSY (For toner box models and MP models) /
Toner box new PCB ASSY
(For models with toner box)
 Toner box models
(1) Disconnect the Toner box relay flat cable from the Main PCB ASSY.
(2) Release the Toner sensor harness, the Toner box new harness, and the Toner box solenoid
harness from the securing fixtures.
(3) Remove the Taptite bind B M4x12 screw. Remove the Relay PCB ASSY, and disconnect
each harness from the Relay PCB ASSY.
(4) Remove the Taptite bind B M3x8 screw to remove the Shading film and the Toner box new
PCB ASSY.

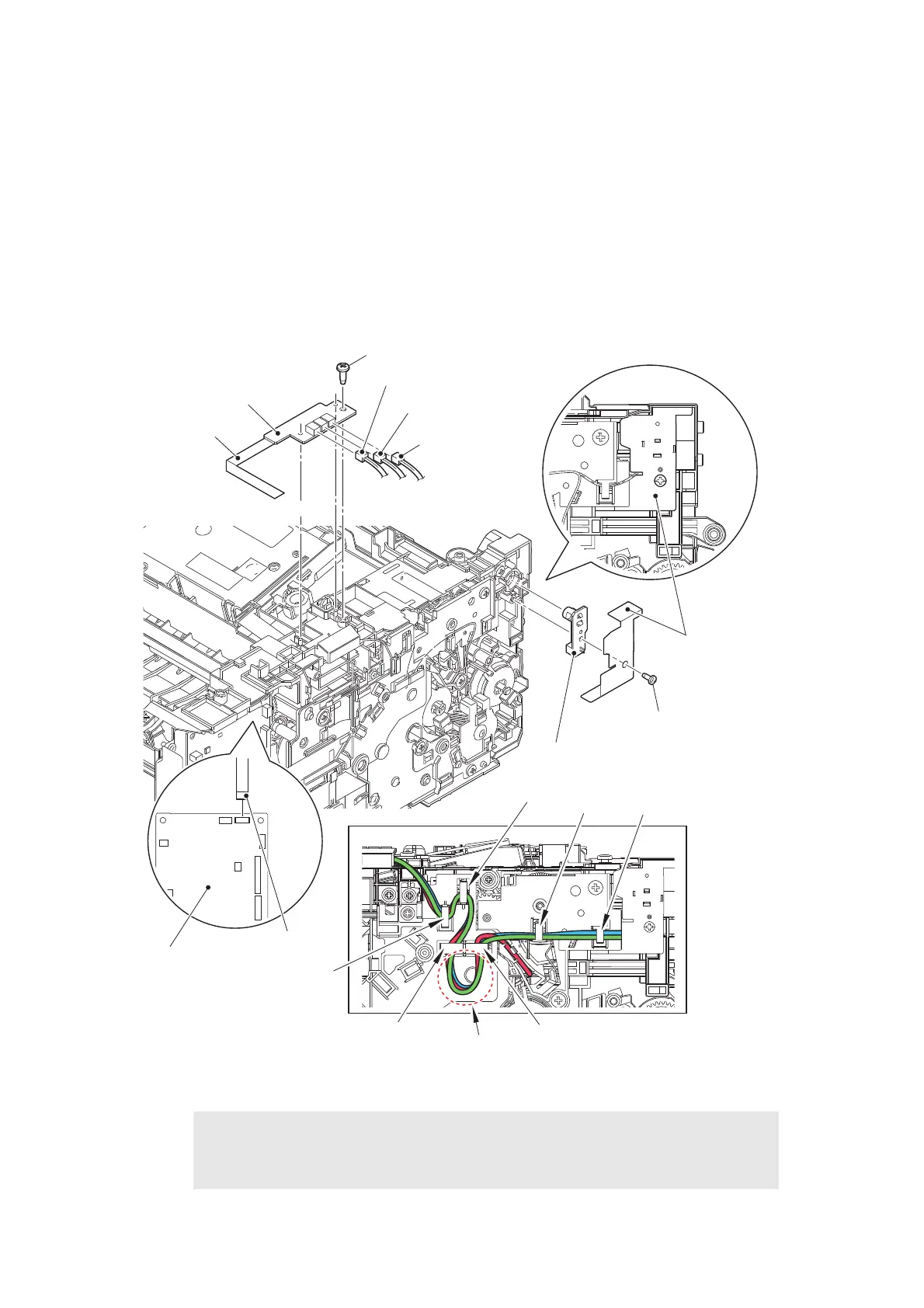

Fig. 3-33
Harness routing: Refer to “3. Top side of the machine” and “4. Frame L unit (Manual feed models)”.
Assembling Note:
• Secure each harness in the Hooks in order of the Hook A to D, and then secure
them in the Hooks from the Hook E to F. Be sure to give them enough slack in the
G part for adjustment.
Taptite bind B M4x12
Relay PCB ASSY
Shading film
Taptite bind B M3x8
Toner box new PCB ASSY
Toner box relay
flat cable
Main PCB ASSY
Toner sensor harness
Toner box new harness
Toner box solenoid
harness
Toner box relay
flat cable
Hook B
Hook D
Hook C
Hook F
Hook E
Hook A
G part

Brother HL-L2370DN Specifications

General

N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto/Manual
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	34 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Recommended duty cycle	250 - 2000 pages per month
Number of print cartridges	1
Page description languages	PCL 6
Display	LCD
Display number of lines	1 lines
Power consumption (off)	0.03 W
Power consumption (standby)	48 W
Power consumption (printing)	510 W
Power consumption (PowerSave)	265 W
Energy Star Typical Electricity Consumption (TEC)	1.227 kWh/week
Maximum internal memory	- MB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
Paper tray media types	Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Package depth	283 mm
Package width	438 mm
Package height	519 mm
Package weight	8300 g
Sustainability certificates	Blue Angel, ENERGY STAR
Cables included	AC
Included cartridge capacity (black)	700 pages
Total input capacity	250 sheets
Total output capacity	150 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	360 mm
Width	356 mm
Height	183 mm
