Setting Up the Machine
8
STEP1

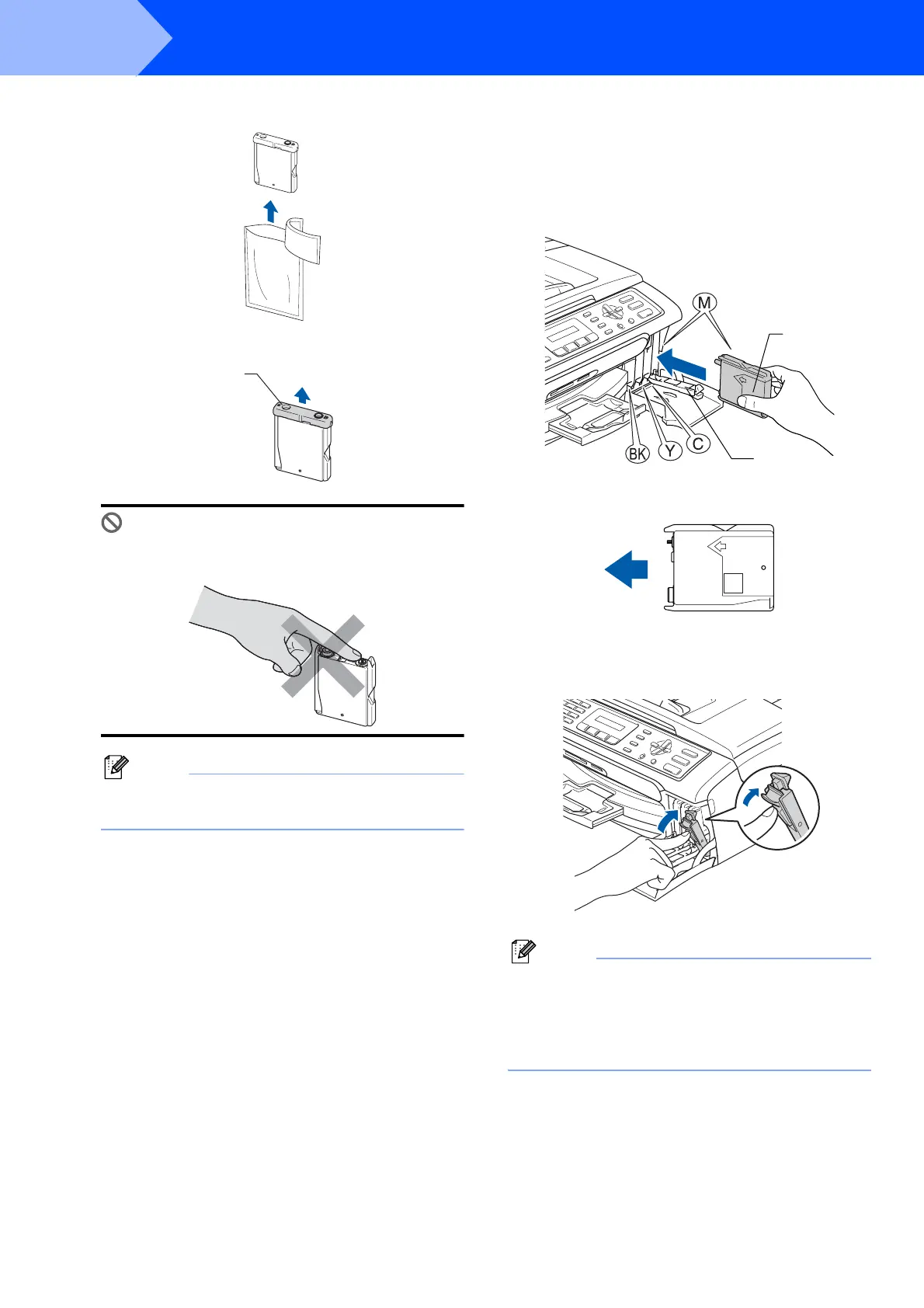

4 Take out the ink cartridge.
5 Carefully remove the protective yellow cap (1).
Improper Setup
DO NOT touch the area shown in the
illustration below.
Note
If the protective yellow cap comes off when you
open the bag, the cartridge will not be damaged.
6 Install each ink cartridge in the direction of the
arrow on the label.
Take care to match the colour of the lock
release lever (1) with the cartridge colour (2),
as shown in the diagram below.
7 Lift each lock release lever and push it until it
clicks, and then close the ink cartridge cover.
Note
If the LCD shows Install Black,
Install Yellow, Install Cyan or
Install Magenta after you install the ink
cartridges, check that the ink cartridges are
installed properly.
1
1
2
M
brother
XXXX
To Next Page
