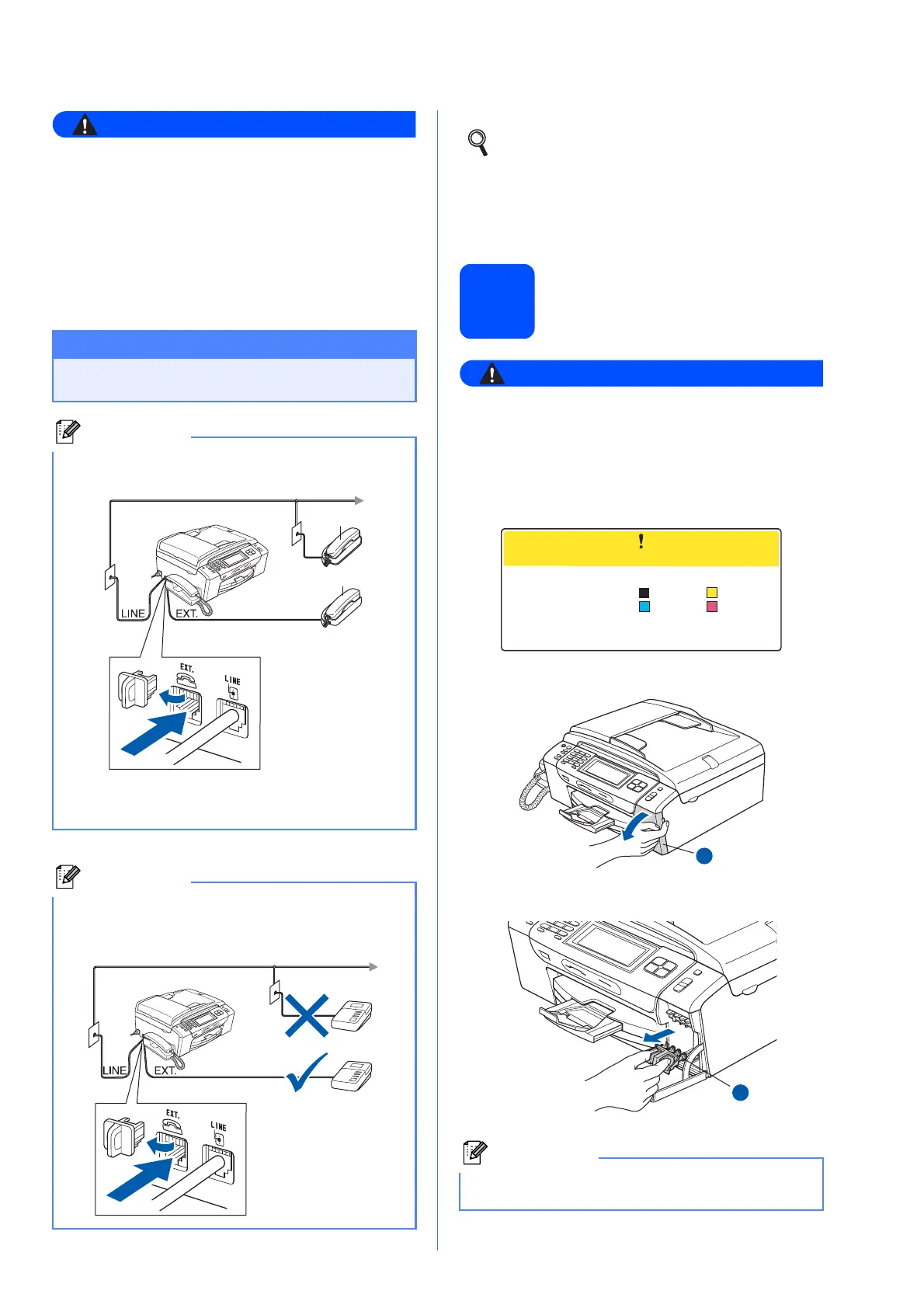

Brother MFC-790CW Quick Setup Guide

5
WARNING
Since the machine is grounded through the
power outlet, you can protect yourself from
potentially hazardous electrical conditions on
the telephone network by keeping the power
cord connected to your machine when you
connect it to a telephone line. Similarly, you
can protect yourself when you want to move
your machine by disconnecting the telephone
line first and then the power cord.
5
Install the ink cartridges
WARNING
If ink gets in your eyes, wash them out with
water at once, and if irritation occurs consult a
doctor.
a Make sure that the power is turned on.
The LCD shows:
b Open the ink cartridge cover a.
c Remove the green protective part a.
d Unpack the ink cartridge.
Important
The telephone line cord MUST be connected
to the socket on the machine marked LINE.
Note
If you are sharing one telephone line with an
external telephone, connect it as shown below.
1 Extension telephone
2 External telephone
Note
If you are sharing one telephone line with an
external telephone answering machine, connect it
as shown below.
1
2
Set the receive mode to Manual if you have
an external answering machine. See
Choose a Receive Mode on page 8. For
additional details, see Connecting an
external TAD (telephone answering device)
in Chapter 7 of the User’s Guide.
Note
Do not throw away the green protective part.
You will need it if you transport the machine.
No Cartridge
Install Ink
Black
BK
Cyan
C
Yellow
Y
Magenta
M
1
1

Brother MFC-790CW Specifications

General

Print technology	Inkjet
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Grayscale levels	256
Maximum scan resolution	19200 x 19200 DPI
PC free copying	Yes
Maximum copy resolution	1200 x 1200 DPI
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	400 pages
Modem speed	33.6 Kbit/s
Total input capacity	100 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	15 sheets
Display	LCD
Display diagonal	4.2 \
Market positioning	Home & office
Compatible memory cards	CF, MS Pro, SD, SDHC, xD
Envelopes sizes	C5, DL
Paper tray media types	Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size)
JIS B-series sizes (B0...B9)	B5
Ethernet LAN	No
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	460 x 375 x 180 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	fax, print, scan
