3-14

Confidential

4

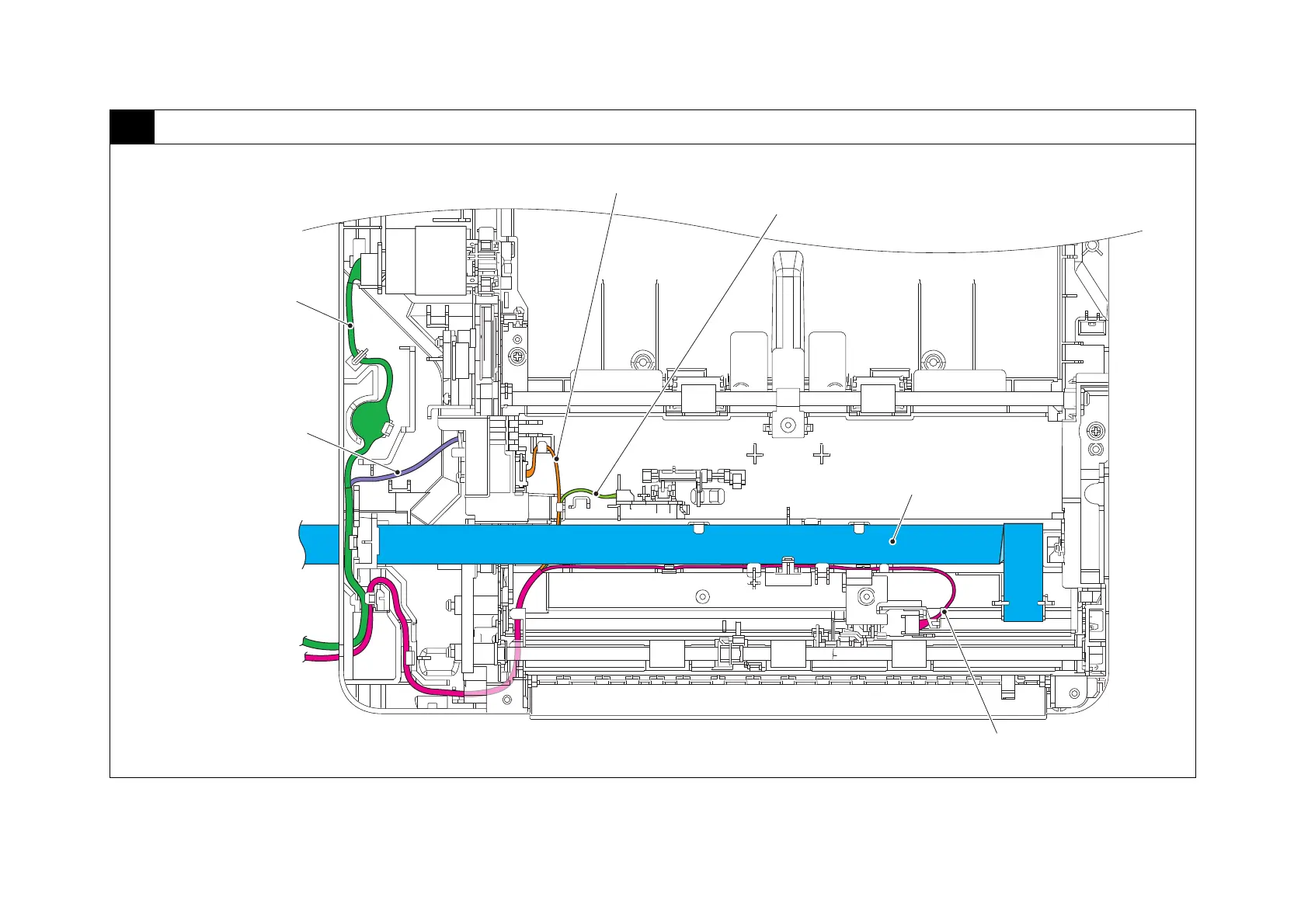

ADF unit

Harness colors are subject to change for some reason.

ADF motor harness

(RD)

ADF FG harness

(RD or OR)

ADF cover harness (BK, WH)

Document detection sensor harness (WH)

Document scanning position sensor harness (BL)

Second side CIS flat cable

(Duplex scanning models only)
