3-36
Confidential

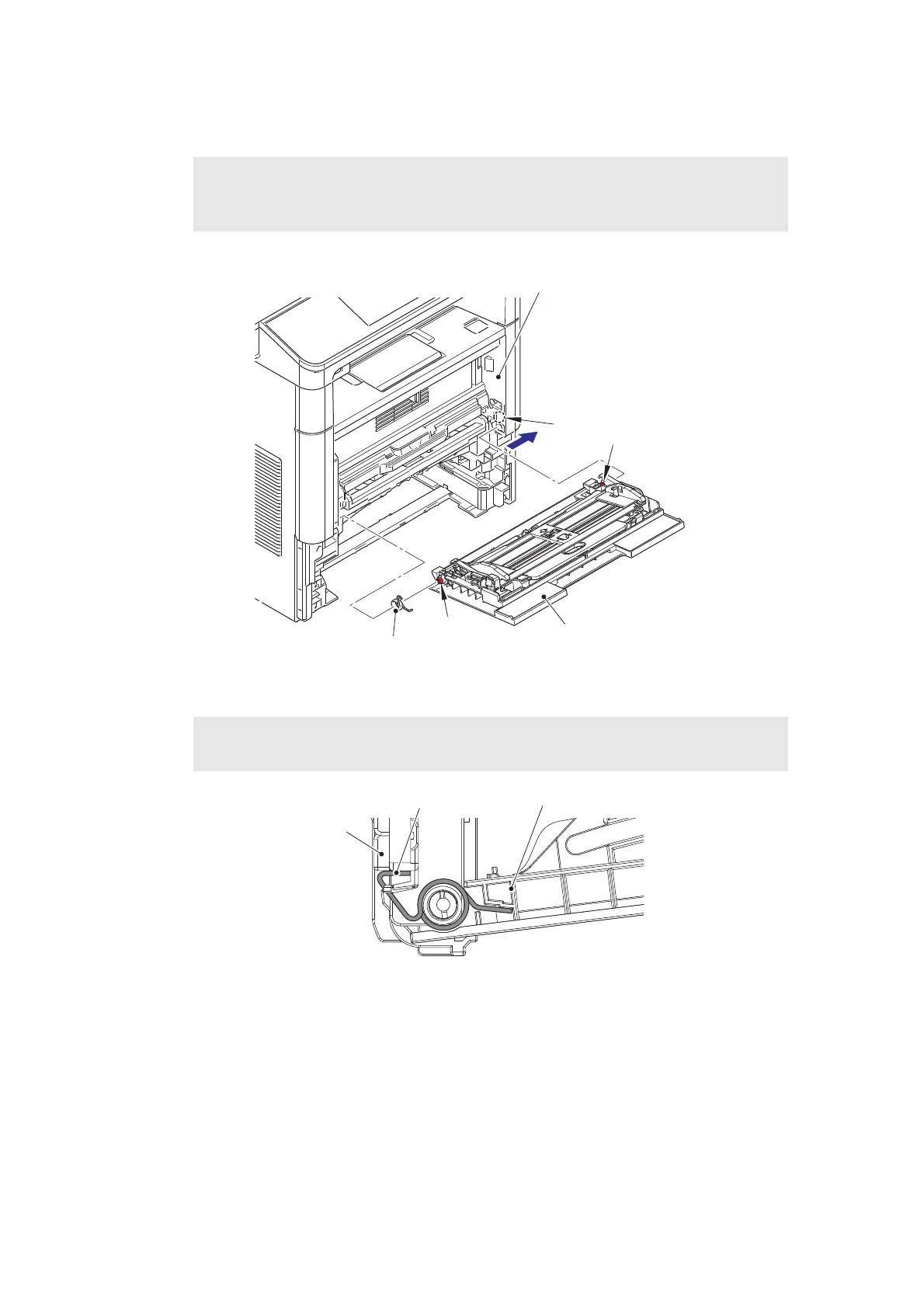

(4) Close the front cover ASSY. Remove the two bosses on the MP cover ASSY, and
remove the MP cover ASSY from the front cover ASSY.
(5) Remove the MP damper spring from the MP cover ASSY.
Fig. 3-24
Fig. 3-25
Note:
• Remove the MP cover ASSY while pushing "A" on the front cover ASSY in the
direction of the arrow.
Assembling Note:
• Attach the MP damper spring as described in the figure below.
MP damper spring
Front cover ASSY
MP cover ASSY
Boss
"A"
Boss
MP damper spring
MP cover ASSY
Front cover ASSY
To Next Page
