3-131

Confidential

(5) Remove the two taptite cup S M3x8 SR screws (5a) (5b), and remove the center FG

plate L from the LT frame L unit.

(6) Remove the two taptite cup S M3x8 SR screws, and remove the under bar ground plate

L (250) from the LT frame L unit.

(7) Remove the four taptite bind B M4x12 screws and six taptite cup S M3x8 SR screws (7a)

(7b). Remove the LT frame L unit, and disconnect the two harnesses from the LT frame

L unit.

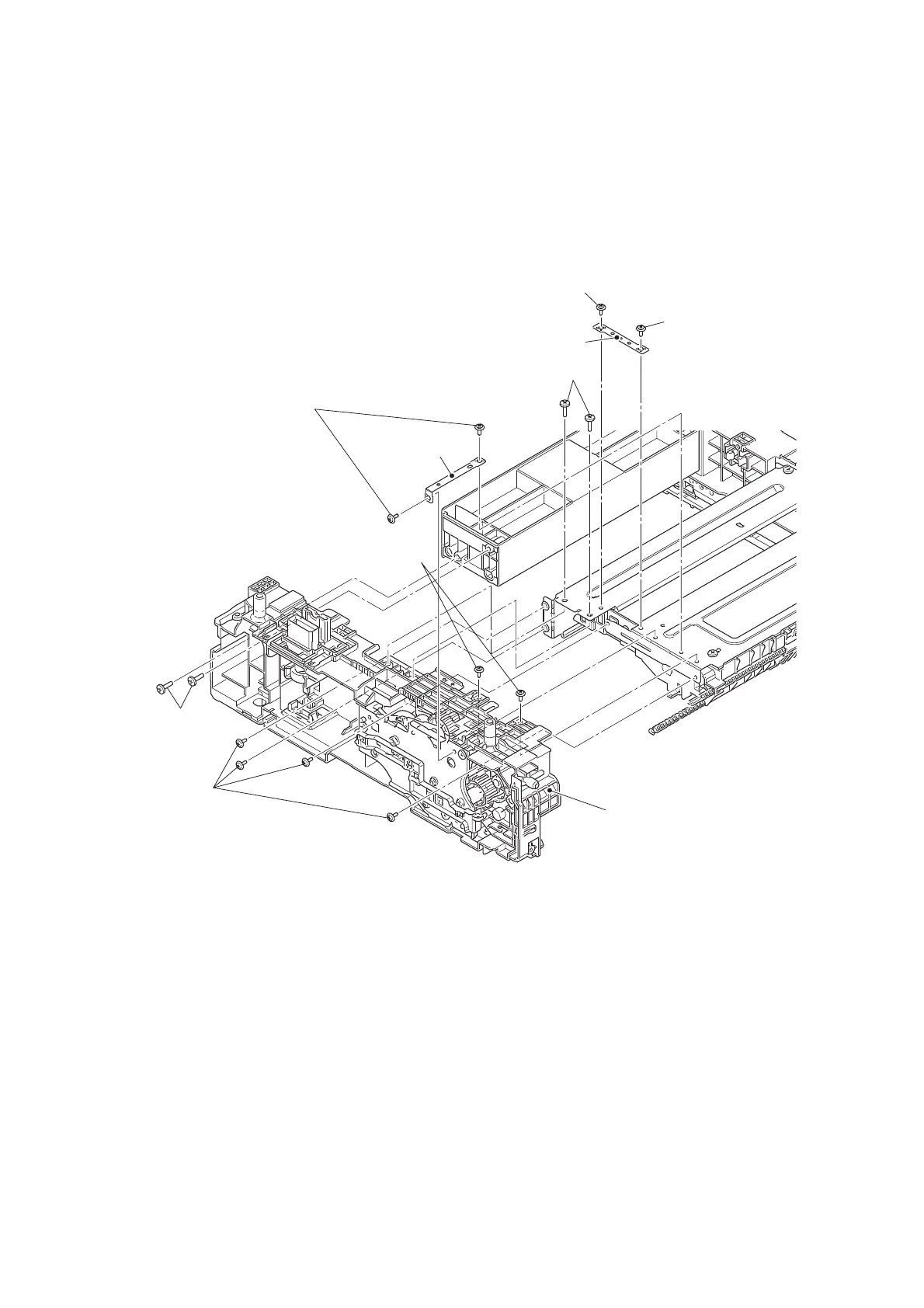

Fig. 3-133

LT frame L unit

Under bar ground

plate L (250)

Center FG plate L

Taptite cup S M3x8 SR (7b)

Taptite cup S M3x8 SR

Taptite bind B M4x12

Taptite cup S M3x8 SR

(5b)

Taptite cup S

M3×8 SR (7a)

Taptite bind

B M4x12

Taptite cup S M3x8 SR (5a)
