3-135

Confidential

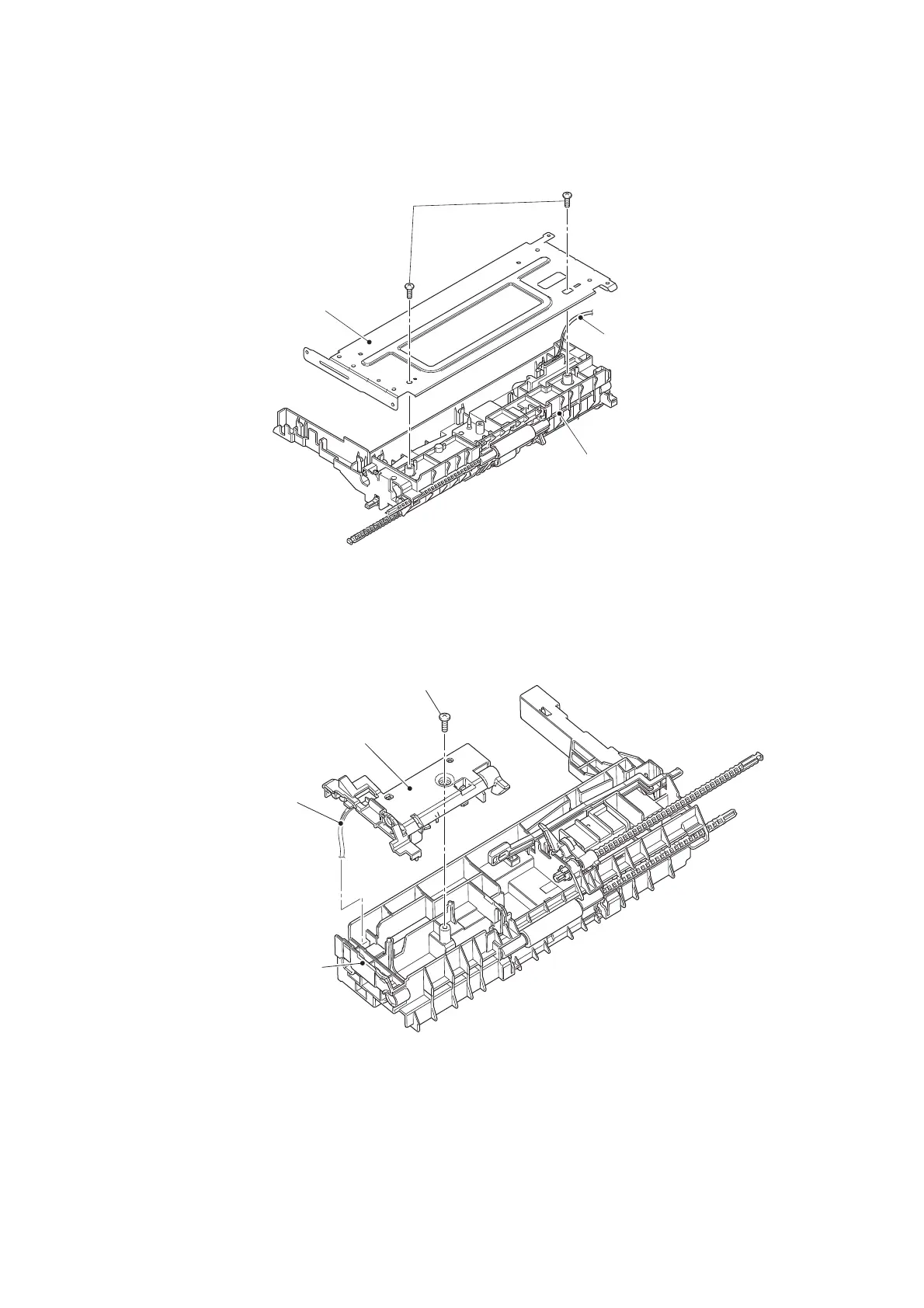

(3) Remove the two taptite bind B M4x12 screws, and remove the LT front beam from the LT

paper feed frame ASSY.

(4) Release the LT paper feed sensor harness from the securing fixtures.

Fig. 3-137

(5) Remove the taptite bind B M3x10 screw, and remove the LT paper feed actuator holder

ASSY from the LT paper feed frame ASSY. Disconnect the LT paper feed sensor

harness from the LT paper feed frame ASSY.

Fig. 3-138

LT paper feed frame ASSY

LT front beam

Taptite bind B M4x12

LT paper feed

sensor harness

LT paper feed frame ASSY

LT paper feed actuator holder ASSY

Taptite bind B M3x10

LT paper feed

sensor harness
