7) Pass the first side CIS flat cable through the flat core.

8) Peel the release liner of the two pieces of double-sided tape attached to the document

scanner unit, and secure the first side CIS flat cable with the tape as shown in the

illustration below.

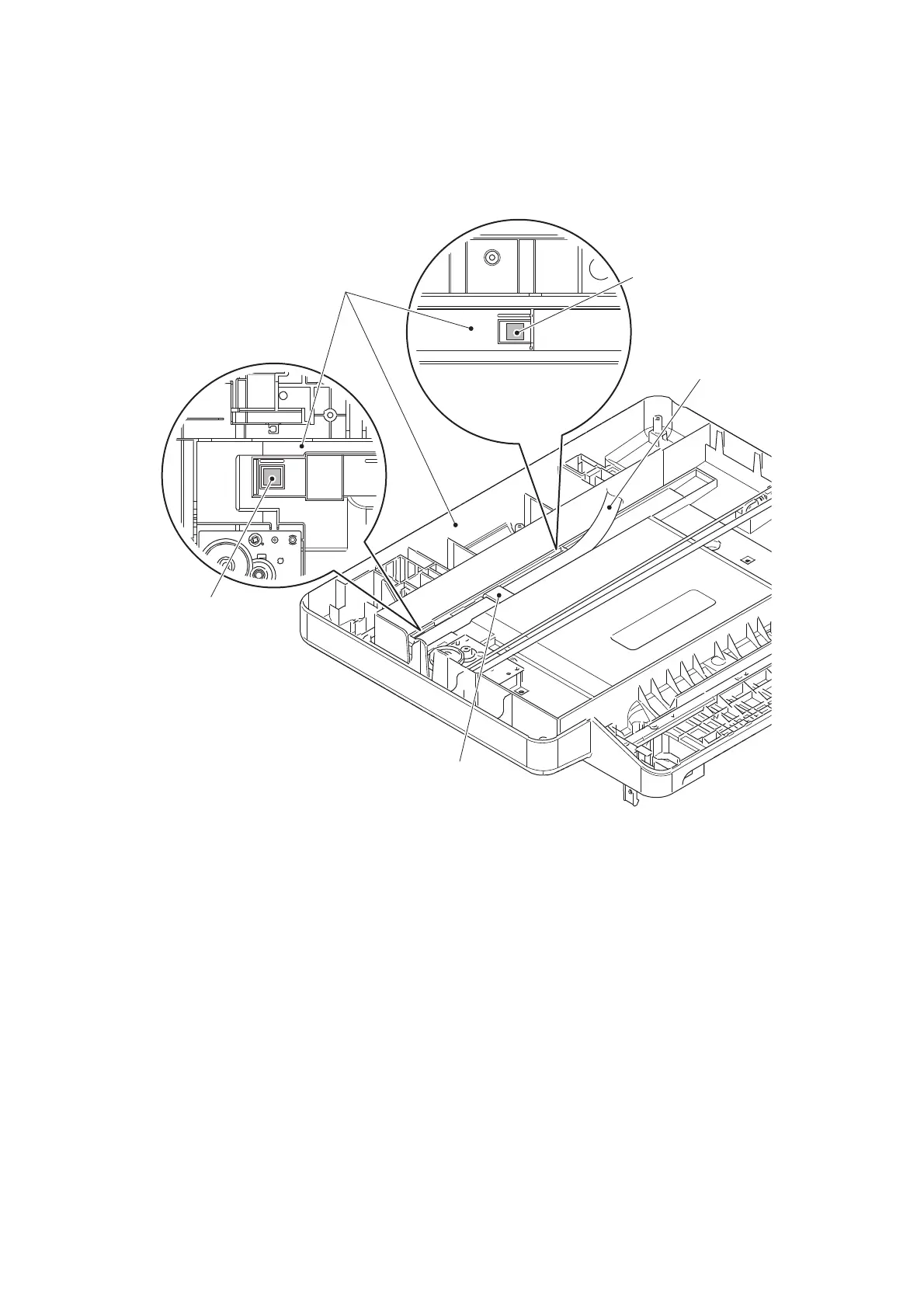

Fig. 3-69

Harness routing: Refer to “5. Document scanner unit”.

First side CIS

flat cable

Double-sided tape

Flat core

Document scanner unit
