Brother MFC-J6720DW Service Manual

3-21
Confidential

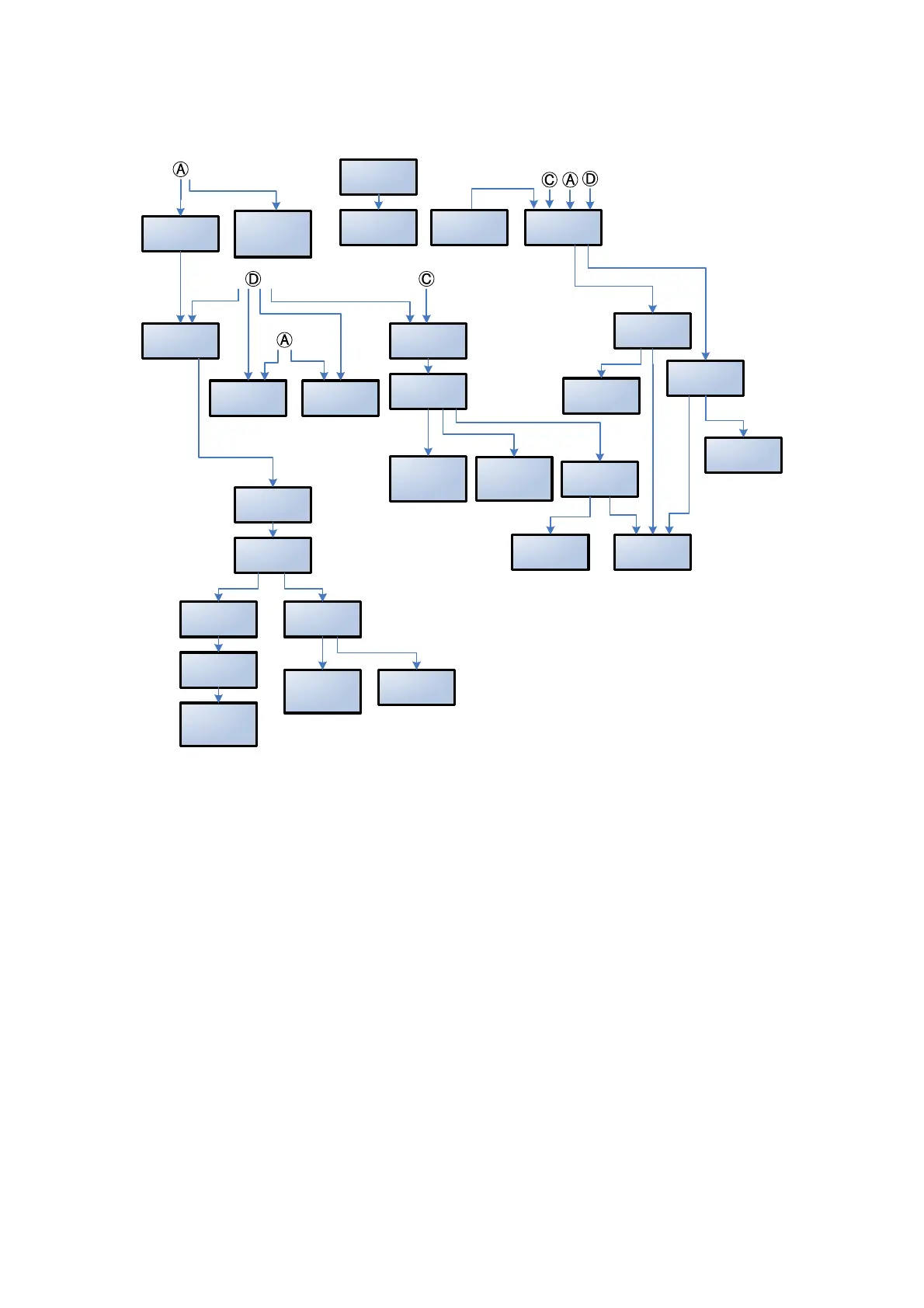

 Disassembly flowchart 2/2
Disassembly/reassembly time (seconds)
9.55 PF Encoder
Sensor PCB
ASSY
20/25
9.55 PF Encoder
Disk
10/15
9.56 Paper Feed
Motor
25/40
9.57 Paper
Feed Roller
10/10
9.58 Platen
15/15
9.58 Paper
Ejection Roller
25/30
9.60 Inner Chute
ASSY
55/60
9.59 Maintenance
Unit
10/10
9.59 Ink
Absorber Felt (for
Maintenance Unit )
5/5
9.61 Registration
Sensor PCB
ASSY
10/10
9.62 T1 Paper
Pull-in Roller
45/50
9.32 Lower Side
Cover R
10/5
9.34 Upper Side
Cover R
10/5
9.44 Carriage
PCB ASSY
50/75
9.45 Ink Refill
ASSY
25/40
9.46 Ink
Absorber Felt (for
Ink Refill ASSY)
5/5
9.47 Ink
Cartridge Cover
Sensor ASSY
10/15
9.50 Tube
Support Plate
10/15
9.50 Switchback
Sensor PCB
15/30
9.48 CR
Encoder Strip
10/15
9.49 Encoder
Strip Guard Film
10/15
9.3 Ink Absorber
Box
10/15
9.51 Carriage
Motor ASSY
60/65
9.54 Switchback
Inner Paper Guide
10/5
9.52 Flushing
Base
5/5
9.53 Flushing
Box
5/5
9.54 Platen Foam
5/5
9.54 Switchback
Roller
55/60
