Brother MFC-J6720DW Service Manual

5-45
Confidential
1.3.25 Updating of Head Property Data and Backup/Restoration of Head Calibration
Data (Maintenance mode 68)
< Function >
Maintenance code 68 provides two types of procedures--one for updating the head
property data and the other for backing up the head calibration data and restoring it.
Updating the head property data
To keep the print quality, the machine optimizes the drive conditions of individual head/
carriage units according to the head property data.
The head property data is stored in the EEPROM on the main PCB and its property
code is printed on the head property labels attached to the machine and the head/
carriage unit.
If you replace the head/carriage unit, you need to enter its property code printed on the
head property label (pasted on the new spare part).
Backing up the head calibration data and restoring it
This procedure backs up the head calibration data into an external memory (memory
card or USB flash memory) and restores it to the machine.
< Operating Procedure >
Head Property Data Updating Procedure
(1) Press the 6 and 8 keys in this order in the initial stage of the maintenance mode.
(2) Press the 2, 5, 8, and 0 keys in this order.
The current property data stored in the EEPROM appears on the LCD and the
machine is ready for entry.
(3) Check the head property label pasted on a new head/carriage unit and enter the
property code.
The code to be entered is 10 digits
excluding the heading "ALR."
Tip: Opening the scanner cover when the machine is on maintenance mode 75
moves the head/carriage unit to the center of its travel. This makes it possible
to check the head property label through the opening. (refer to Section 1.3.28
"Move of the Head/Carriage Unit to the Center (Maintenance mode 75)" in this
chapter).
(4) After entry of 10-digit code, press the SET key.
The machine displays the "INPUT ACCEPTED" on the LCD, writes the entered
property code into the EEPROM, and then returns to the initial stage of the
maintenance mode.
Note: If the entered data contains any checksum error, the machine shows the
"Input Error" and becomes ready to accept entry. Go back to step (3).

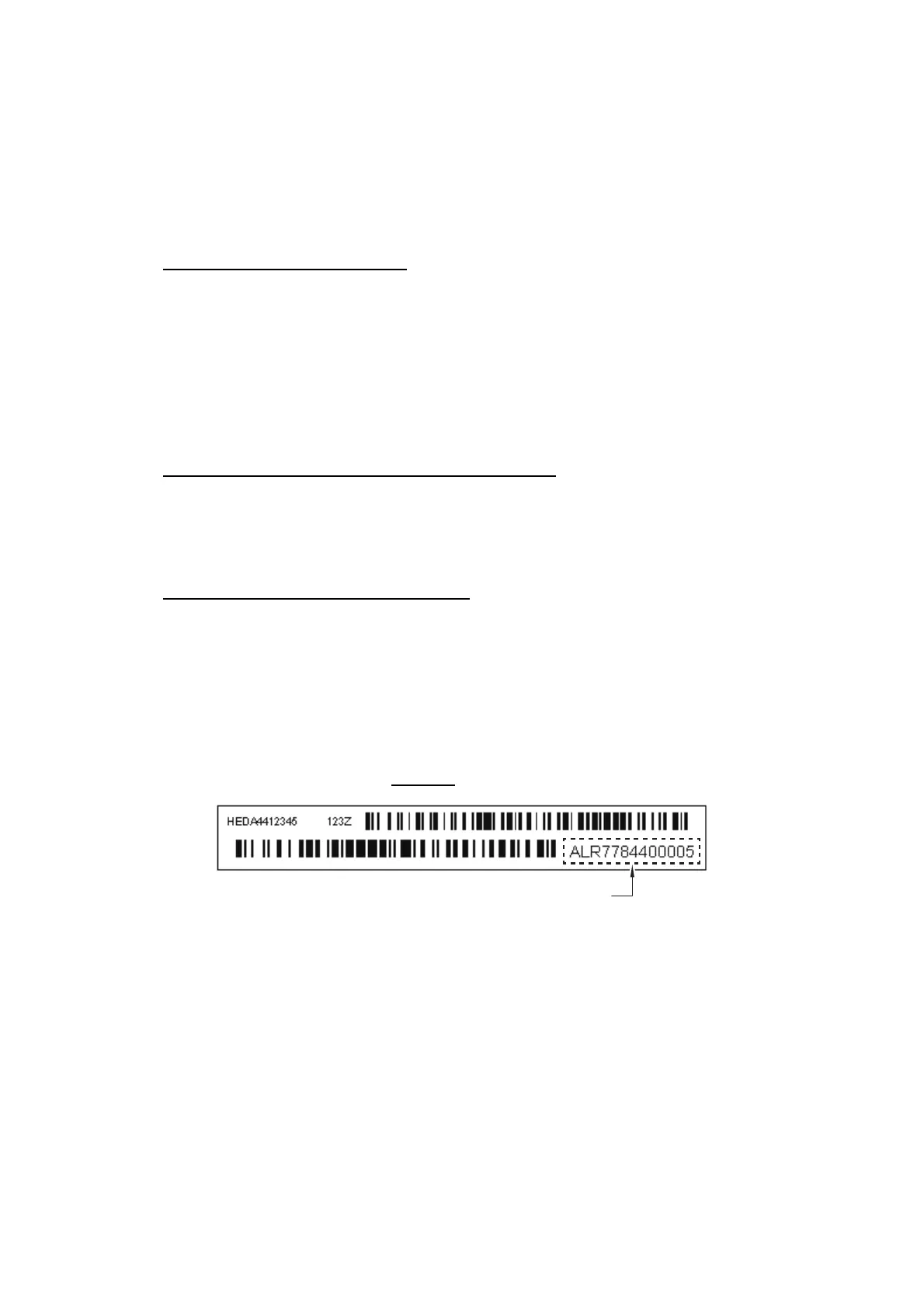

Head property data

Brother MFC-J6720DW Specifications

General

Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Duplex printing mode	Auto
Print speed (ISO/IEC 24734) mono	22 ipm
Print speed (ISO/IEC 24734) color	20 ipm
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 2400 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	23 cpm
Copy speed (color, normal quality, A4)	20 cpm
Scan to	CIFS, E-mail, E-mail Server, Fax, File, FTP, Image, Memory Card, OCR, USB
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	297 x 432 mm
Output color depth	24 bit
Image formats supported	BMP, JPG, PCX, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	HTM, PDF
Optical scanning resolution	2400 x 2400 DPI
Faxing	Color faxing
Fax memory	200 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	203 x 196 DPI
Fax transmission speed	3 sec/page
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	26000 pages per month
Recommended duty cycle	250 - 1500 pages per month
Number of print cartridges	4
Page description languages	GDI
Paper input type	Paper tray
Total input capacity	500 sheets
Total output capacity	50 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	35 sheets
Envelopes sizes	10, C5, DL, Monarch
Photo paper sizes	10x15 cm
Custom media width	89 - 297 mm
Maximum print size	210 x 297 mm
Custom media length	127 - 431.8 mm
Paper tray media types	Coated paper, Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	2L, Executive (184 x 267mm), Folio (media size), Index card, L, Ledger (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
Photo paper sizes (imperial)	4x6 \
Borderless printing media sizes	Ledger, 4x6, 10x15, 2L, A3, A4, A6, Index card, L, Letter
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Black, White
Display diagonal	2.7 \
Market positioning	Business
Standard interfaces	Ethernet, USB 1.1, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Fax compatibility	ITU-T G3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, SSID, TKIP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Compatible memory cards	microSD (TransFlash), microSDHC, miniSD, miniSDHC, MMC, MMC Mobile, MMC+, MS Duo, MS Micro (M2), MS PRO Duo, SD, SDHC, SDXC
Sound pressure level (printing)	50 dB
AC input frequency	50 - 60 Hz
Power consumption (off)	0.04 W
Power consumption (standby)	4.5 W
Power consumption (PowerSave)	1.5 W
Power consumption (average operating)	28 W
Package depth	497.84 mm
Package width	657.86 mm
Package height	414 mm
Package weight	19912 g
Storage temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	433 mm
Width	553 mm
Height	310 mm
