Brother MFC-J6720DW Service Manual

5-74
Confidential
2.3 Retrieving the Equipment Log Information
< Function >
This procedure retrieves the log information from the machine to the connected PC as
electronic data.
< Operating Procedure >
(1) Turn ON your PC.
(2) Create an arbitrary folder in the C: directory and save the readback tool
(rb2k03.exe) and PJL command file (brmainten_77.pjl) in that folder.
Note: The rb2k03.exe is available only in windows XP.
(3) Switch the machine to the maintenance mode. (Refer to Section 1.1 "Entry to the
Maintenance Mode" in this chapter.)
(4) Connect the machine to the PC using a USB cable.
(5) On the PC, start Command Prompt and change to the directory where the
readback tool is located.
(In the example below, a "SendPJL" folder is created in the C: directory and the
readback tool is saved in that folder.)

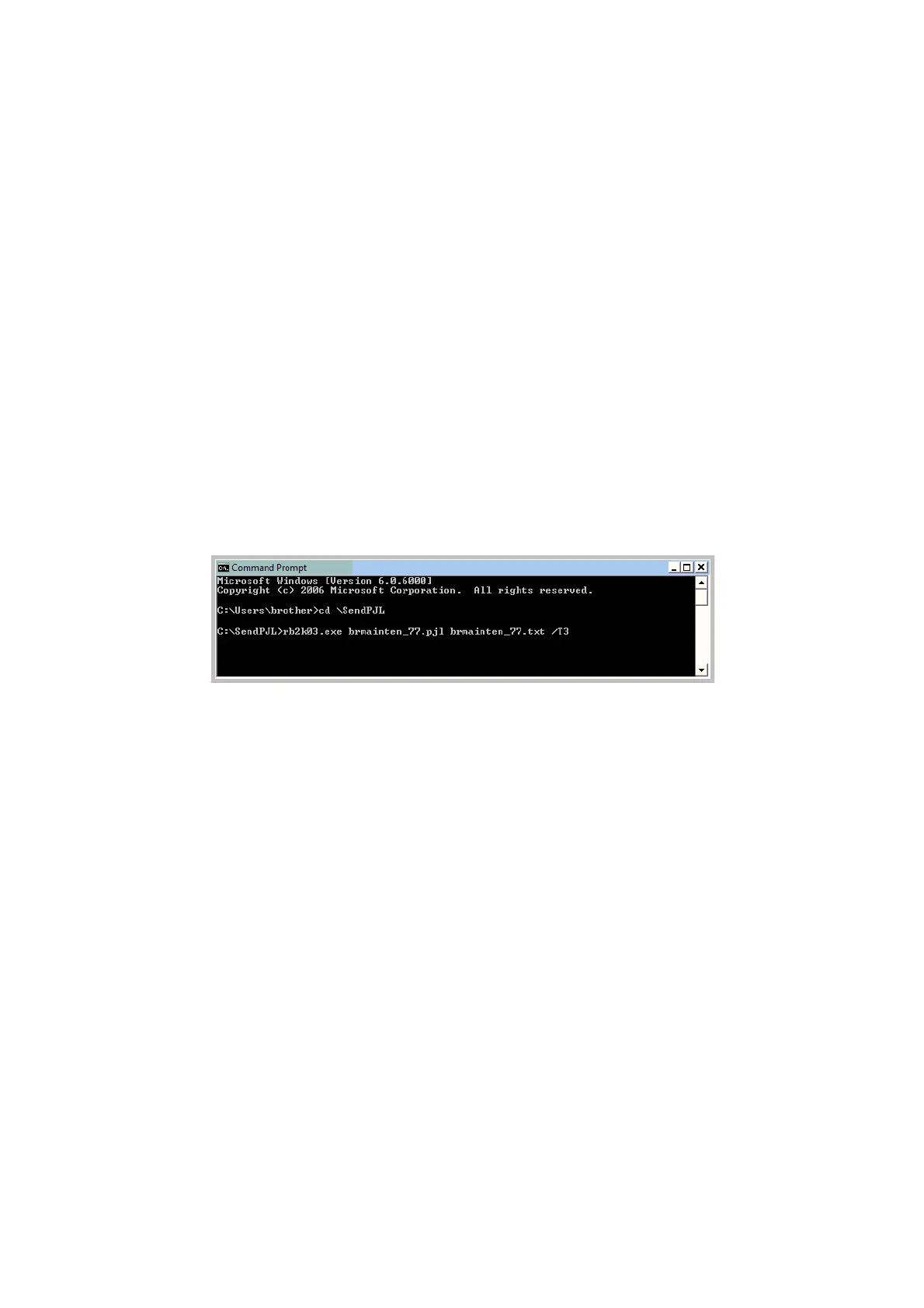

(6) In Command Prompt, type
rb2k03.exe brmainten_77.pjl brmainten_77.txt /T3
and press the Enter key.
Note: Be sure to enter a space to the points marked with an asterisk (*) shown
below.
rb2k03.exe*brmainten_77.pjl*brmainten_77.txt*/T3
Otherwise, an error occurs.
brmainten_77.txt is created in the arbitrary folder.
(7) In Excel, open the created header/footer and delete texts added by the PJL
stipulation.
