3-77

Confidential

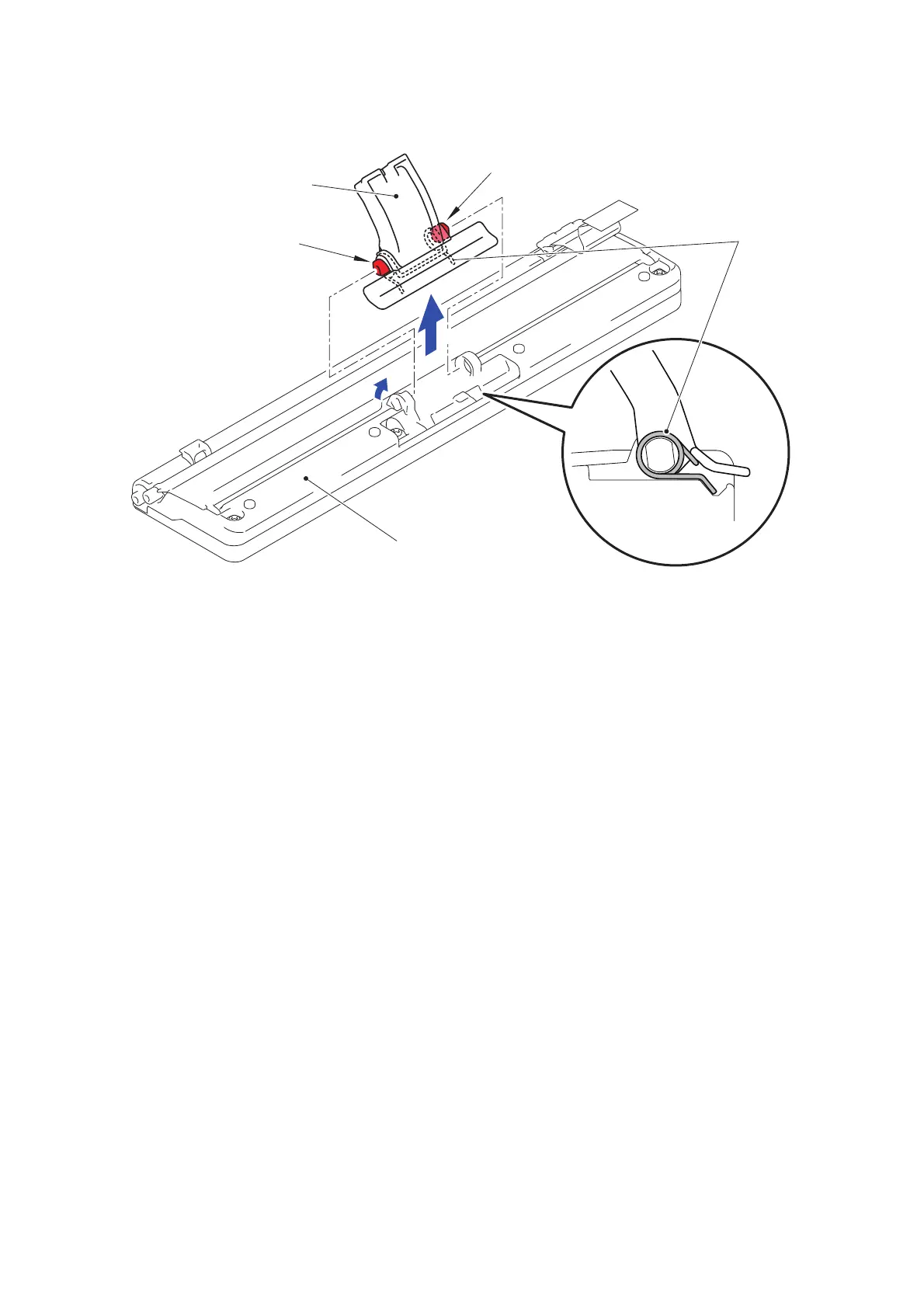

(4) Release the two Bosses and remove the Tilt hook from the Panel ASSY.

Fig. 3-83

Tilt hook

Panel ASSY

Boss

Boss

4a

4b

Tilt hook

spring
