App. 3-2

Confidential

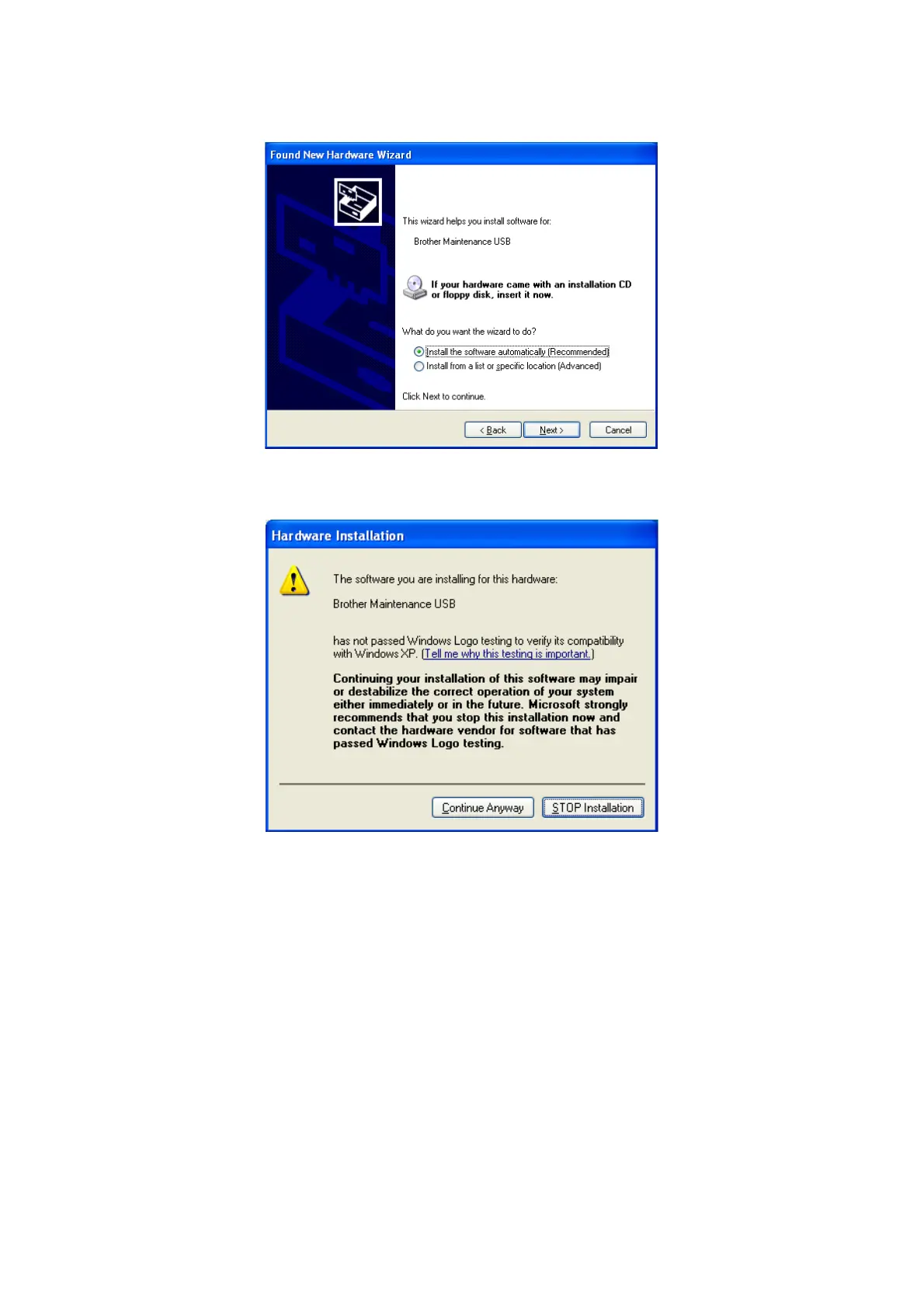

(7) Select "Install the software automatically (Recommended)" and click Next.

(8) Alert warning message of WHQL appears. Click Continue Anyway to proceed.
