Brother MFC-L2680W Service Manual

3-8
Confidential

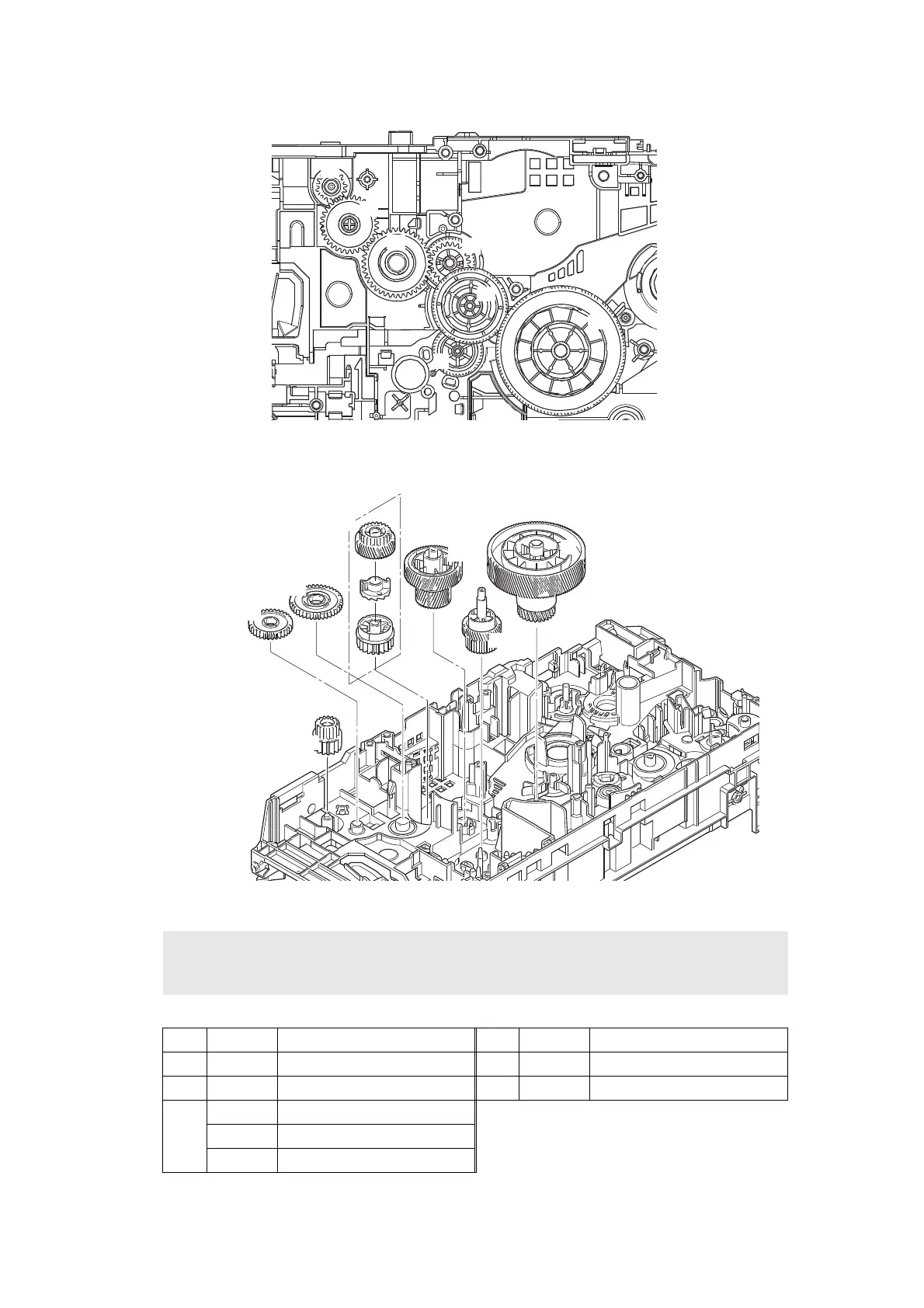

<Layout view>
Fig. 3-7
<Development view>
Fig. 3-8
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
7 LY9006 Ejector gear 33 11 LY9005 Ejector gear 40
8 LY9008 DX gear 44/32 12 LY9007 Ejector gear 17/16
9 LY9026 Drum gear 115L/26L 13 LY9029 Fuser gear 67R/40R
10
LY9030 Fuser gear oneway 45L/23
LY9032 Fuser clutch
LY9031 Fuser gear oneway
21
12
7
11
10
13
8
9
12
7
11
10
13
8
9

Brother MFC-L2680W Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	2400 x 600 dpi
Duplex Printing	Automatic
Maximum Copy Resolution	600 x 600 dpi
Scan Resolution	1200 x 1200 dpi
Fax Modem Speed	33.6 kbps
Paper Input Capacity	250 sheets
Connectivity	USB, Ethernet, Wi-Fi
Display	2-line LCD
Processor	600 MHz
Scanner Type	Flatbed, ADF
Automatic Document Feeder (ADF)	Yes
Mobile Printing	Yes, AirPrint, Brother iPrint&Scan
Max Paper Size	Legal
Toner Yield	Approx. 1, 200 pages (Standard), Approx. 3, 000 pages (High-Yield)
