3-37

Confidential

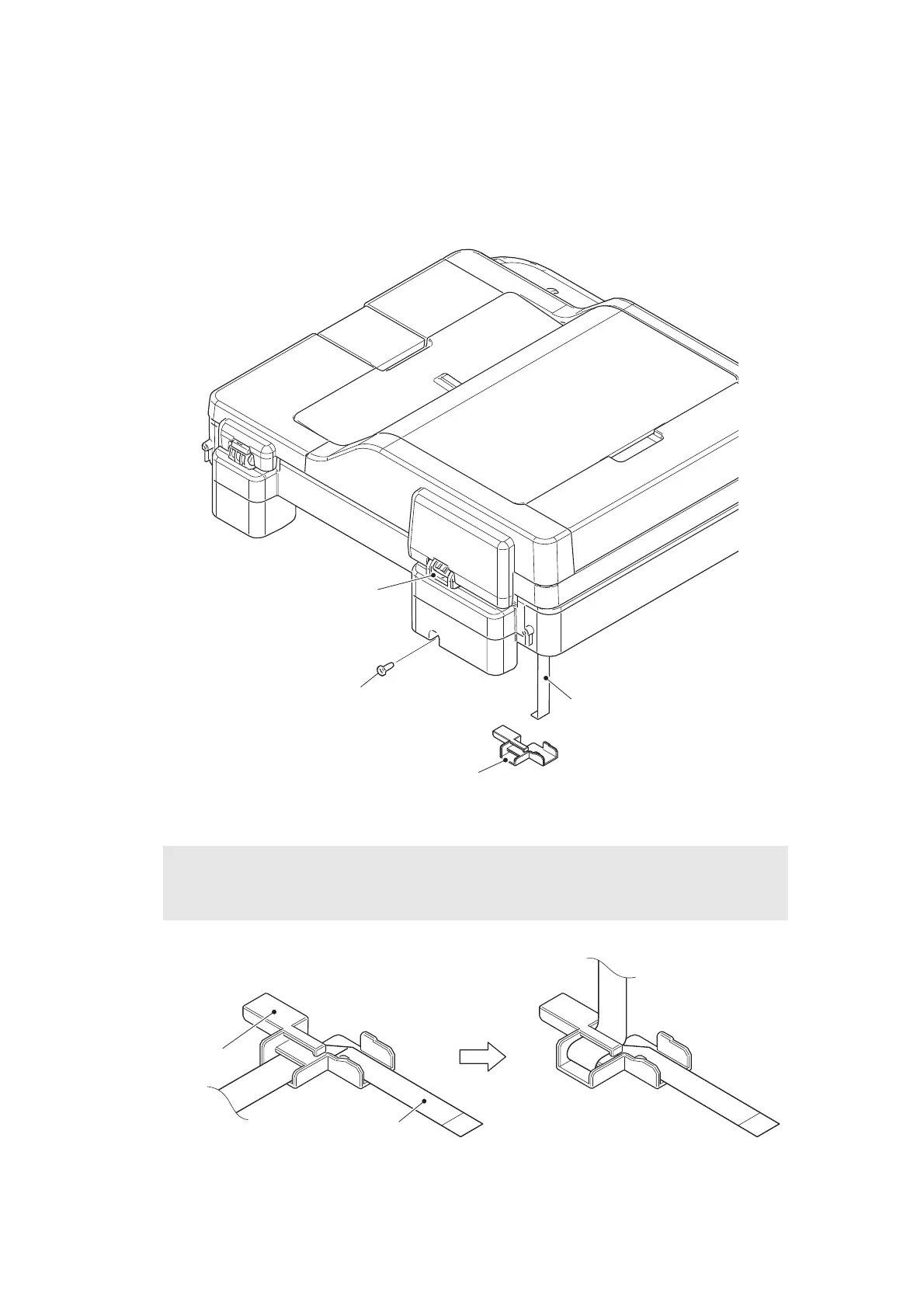

9.12 ADF Unit (For models with ADF)

9.12.1 ADF Unit

(1) Remove the ADF FFC holder from the second side CIS flat cable.

(2) Remove the taptite bind B M4x12 screw from the hinge ASSY L.

Fig. 3-24

Fig. 3-25

Assembling Note:

• Attach the ADF FFC holder to the second side CIS flat cable as shown in the figure

below.

Second side CIS flat cable

Hinge ASSY L

Taptite bind B M4x12

ADF FFC holder

Second side CIS flat cable
