3-89

Confidential

9.31 New Toner Sensor PCB ASSY

(1) Release the new toner sensor PCB flat cable from the securing fixture.

(2) Release the hook, and remove the new toner sensor PCB ASSY. Disconnect the paper

feed sensor harness ASSY from the new toner sensor PCB ASSY, and release it from

the securing fixtures.

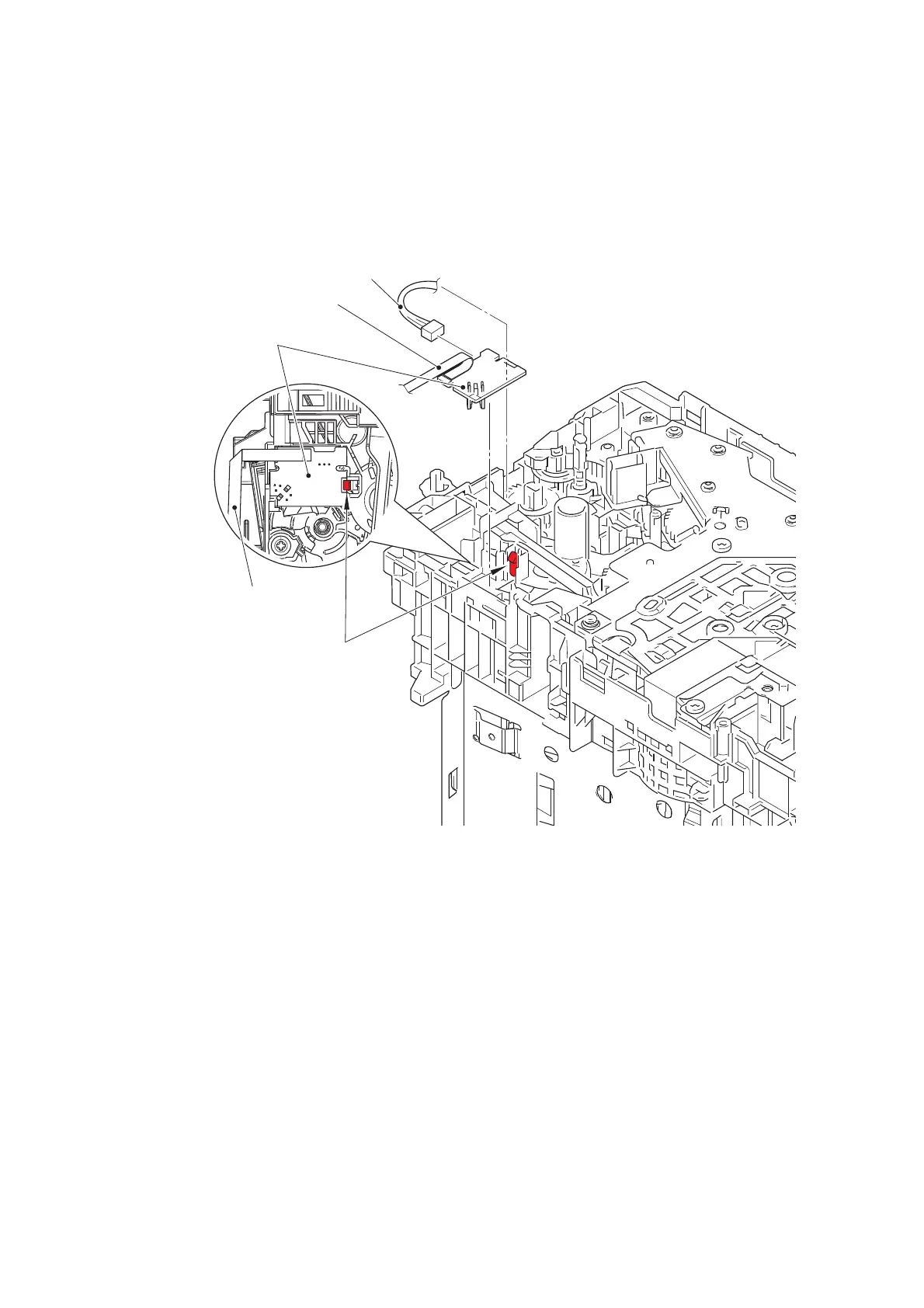

Fig. 3-93

Harness routing: Refer to “3. Left side of the machine”, “5. New toner sensor PCB ASSY”.

New toner sensor PCB ASSY

Hook

Paper feed sensor harness ASSY

New toner sensor PCB flat cable
