9.13 Document Cover ASSY (For models without ADF)

(1) Release the hooks of the hinge L and the hinge R to remove the document cover ASSY

by lifting it up.

(2) Remove the taptite cup B M3x10 screw to remove the hinge L support and the hinge L

from the hinge arm L.

(3) Remove the taptite cup B M3x10 screw to remove the hinge R support and the hinge R

from the hinge arm R.

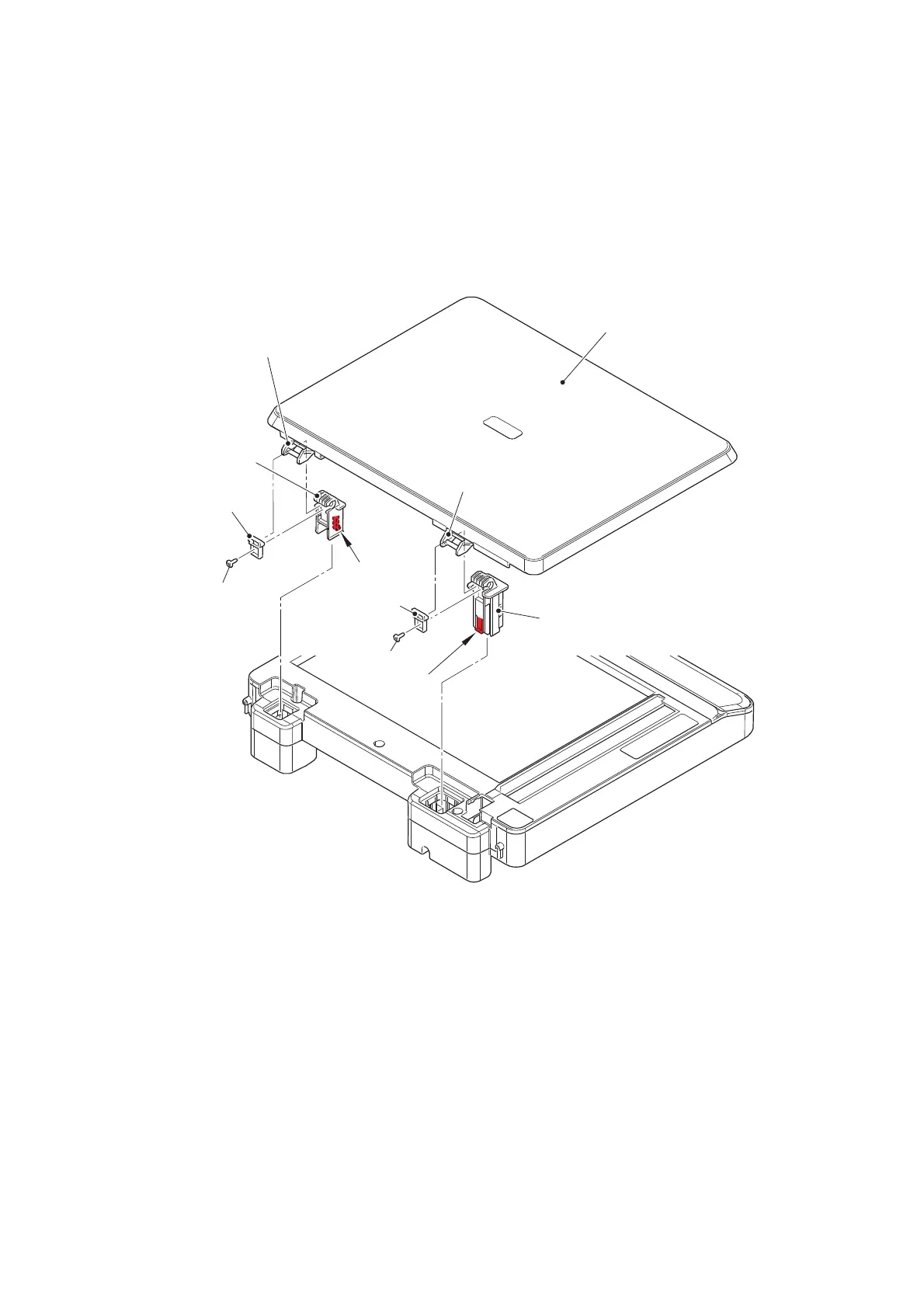

Fig. 3-51

Document cover ASSY

Hook

Hinge L

Taptite cup B M3x10

Hinge L support

Hook

Taptite cup B M3x10

Hinge R support

Hinge R

Hinge arm L

Hinge arm R
