Brother MFC-L2680W Service Manual

3-74
Confidential
9.20 Joint Cover ASSY
(1) Remove the four taptite bind B M4x12 screws.
(2) Release the hooks on the joint cover ASSY in order of the hook A to F, and remove the
joint cover ASSY in the direction of the arrow.

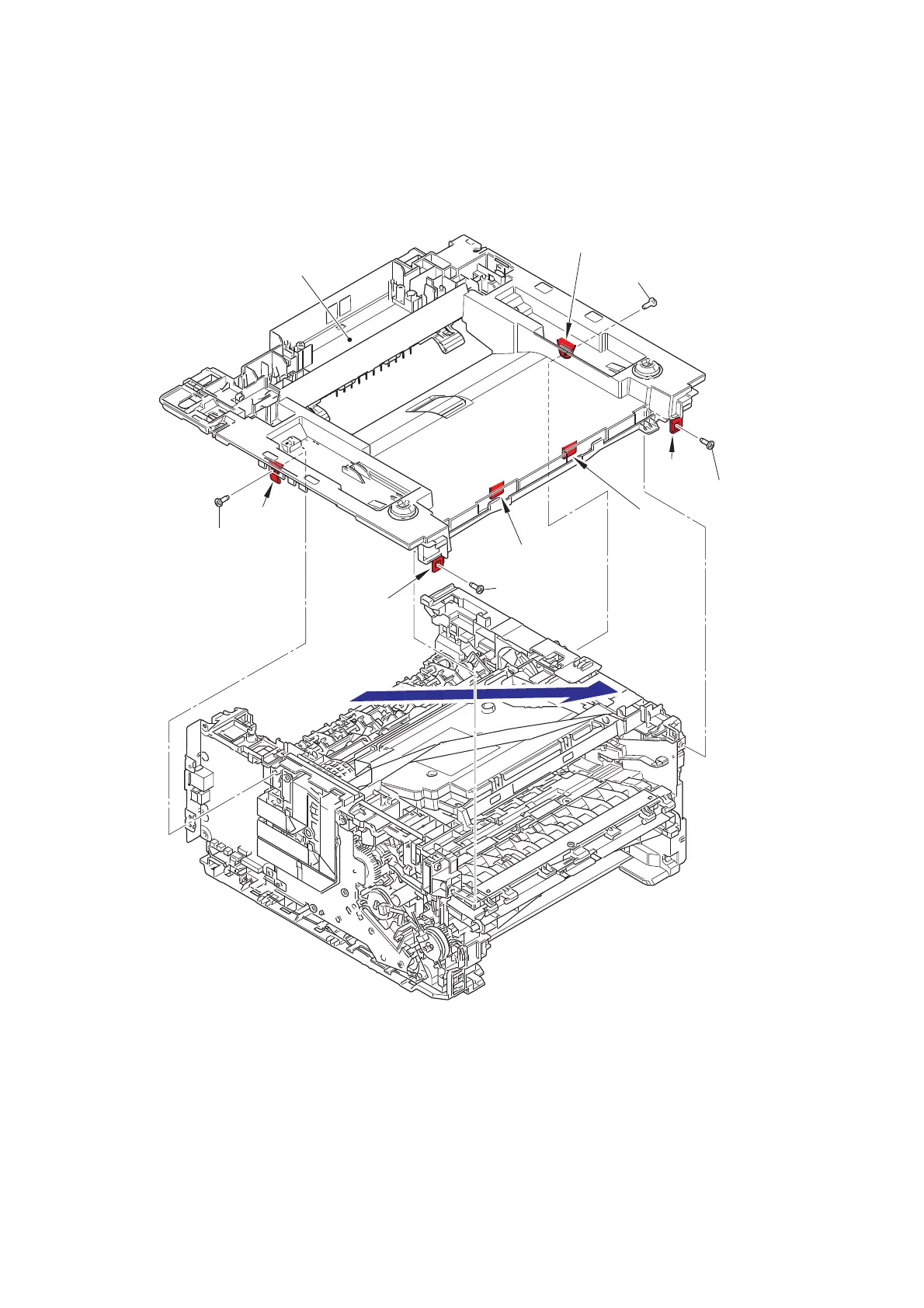

Fig. 3-71
Joint cover ASSY
Hook A
Hook E
Hook F
Taptite bind B M4x12
Taptite bind
B M4x12
Taptite bind
B M4x12
Hook C
Hook D
Hook B
Taptite bind
B M4x12

Brother MFC-L2680W Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	2400 x 600 dpi
Duplex Printing	Automatic
Maximum Copy Resolution	600 x 600 dpi
Scan Resolution	1200 x 1200 dpi
Fax Modem Speed	33.6 kbps
Paper Input Capacity	250 sheets
Connectivity	USB, Ethernet, Wi-Fi
Display	2-line LCD
Processor	600 MHz
Scanner Type	Flatbed, ADF
Automatic Document Feeder (ADF)	Yes
Mobile Printing	Yes, AirPrint, Brother iPrint&Scan
Max Paper Size	Legal
Toner Yield	Approx. 1, 200 pages (Standard), Approx. 3, 000 pages (High-Yield)
