Brother MFC-L2680W Service Manual

2-4
Confidential
2. OVERVIEW

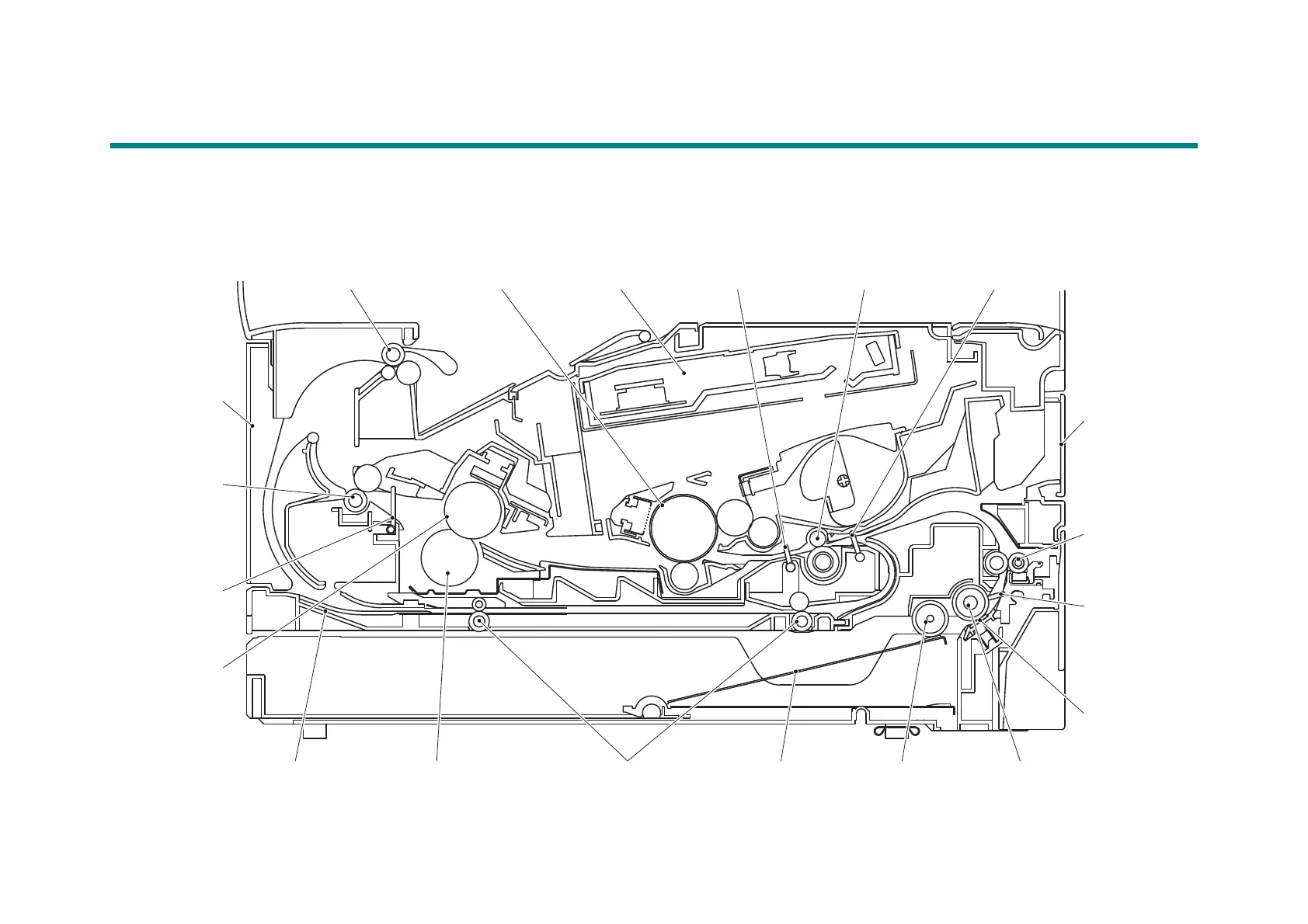

2.1 Cross-section Drawing
2.1.1 Printer part
Fig. 2-2
<Back side>
Eject roller 2 Exposure drum Laser unit Registration rear actuator
<Front side>
Registration front actuator
Manual feed slot
Paper dust
cleaning roller
Paper feed
actuator
Separation pad
Separation rollerPick-up rollerPlateDuplex paper feed rollerPressure rollerDuplex tray
Heat roller
Eject actuator
Eject roller 1
Back cover
Registration roller

Brother MFC-L2680W Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	2400 x 600 dpi
Duplex Printing	Automatic
Maximum Copy Resolution	600 x 600 dpi
Scan Resolution	1200 x 1200 dpi
Fax Modem Speed	33.6 kbps
Paper Input Capacity	250 sheets
Connectivity	USB, Ethernet, Wi-Fi
Display	2-line LCD
Processor	600 MHz
Scanner Type	Flatbed, ADF
Automatic Document Feeder (ADF)	Yes
Mobile Printing	Yes, AirPrint, Brother iPrint&Scan
Max Paper Size	Legal
Toner Yield	Approx. 1, 200 pages (Standard), Approx. 3, 000 pages (High-Yield)
