9.12.4 ADF Cover ASSY, Gear Cover

(1) Open the ADF cover ASSY. Release the bosses to remove the ADF cover ASSY from

the ADF unit.

(2) Release the hook to remove the gear cover from the ADF unit.

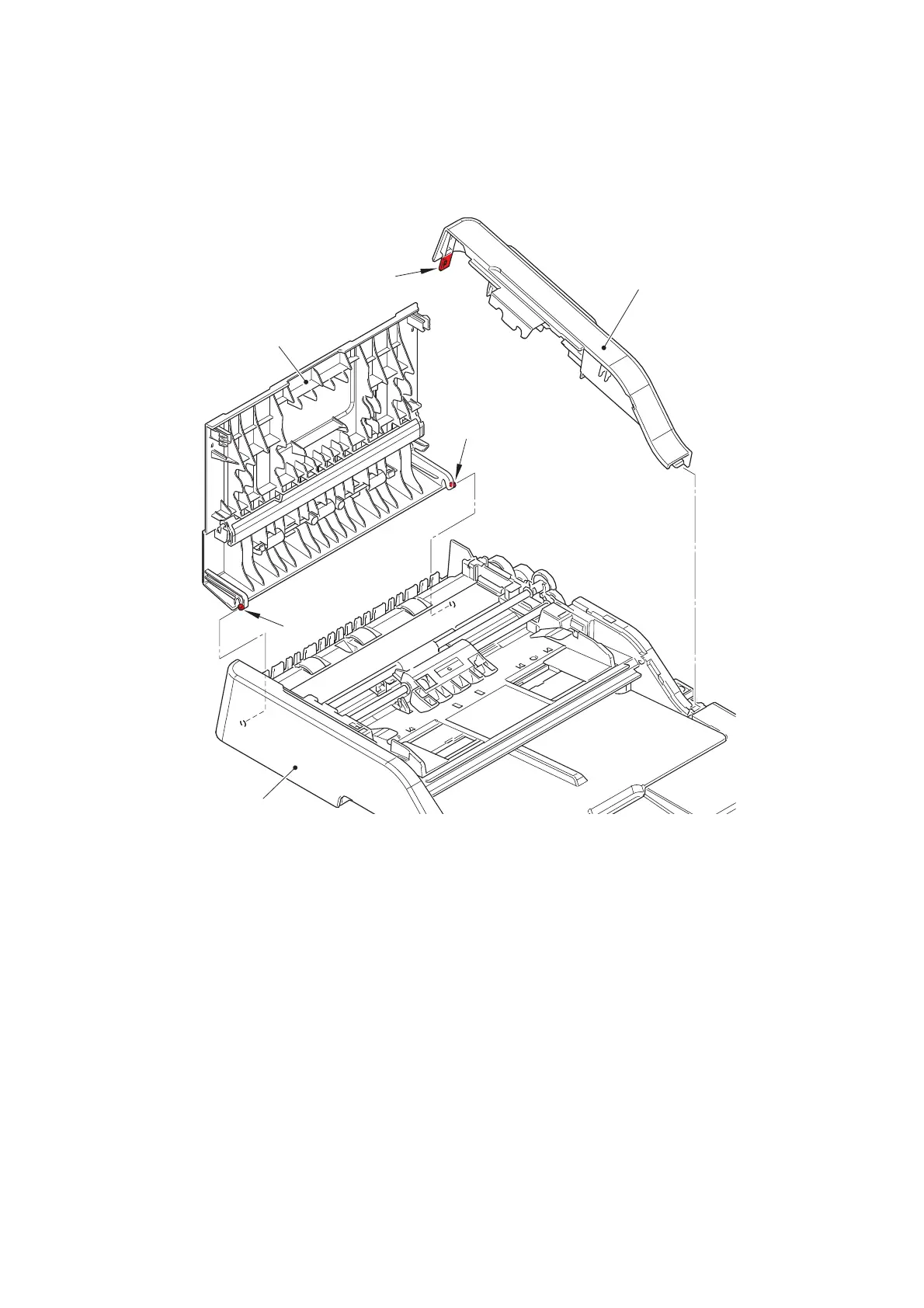

Fig. 3-30

Boss

Hook

ADF cover ASSY

Boss

Gear cover

ADF unit
